SD103AW

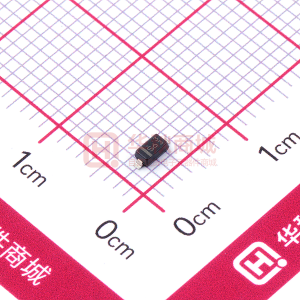

SD103AW~SD103CW SURFACE MOUNT SCHOTTKY BARRIER VOLTAGE FEATURES • Low turn-on voltage • Fast switching .028(0.7) .019(0.5) 20 to 40 Volts CURRENT 0.35 Ampers SOD-123 Unit: inch (mm) .154(3.90) .141(3.60) .110(2.8) .098(2.5) • PN Junction Guard Ring for Transient and ESD Protection. • In compliance with EU RoHS 2002/95/EC directives MECHANICAL DATA • Case: SOD-123, Plastic • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight: 0.01 gram .008(.20)MAX .053(1.35) .037(0.95) • Polarity : Color band cathode .005(.12)MAX .016(.40)MIN 1 2 Cathode Anode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25OC ambient temperature unless otherwise specified. For capacitive load, derate current by 20%. P a ra me te r M a r k i ng C o d e M a xi m um R e c ur r e nt P e a k R e ve r s e V o l t a g e M a xi m um R M S V o l t a g e M a xi m um D C B l o c k i ng V o l t a g e M a x i m u m A v e r a g e F o r w a r d C u r r e n t a t Ta = 7 5 O C P e a k F o r w a r d S ur g e C ur r e nt a t 1 0 uS M a x i m u m In s t a n t a n e o u s F o r w a r d V o l t a g e M a xi m um R e ve r s e C ur r e nt Ty p i c a l J u n c t i o n C a p a c i t a n c e a t V R = 0 V Typcial Th e r m a l R e s i s t a n c e O p e r a t i n g J u n c t i o n a n d S t o r a g e Te m p e r a t u r e R a n g e S ym b o l V RRM V RMS V DC IF ( A V ) IF S M VF IR CJ R θJ A TJ S D 1 0 3 AW S6 40 28 40 SD103BW S7 30 21 30 0 .3 5 2 .0 0 .3 7 @0 .0 2 A 0 .6 0 @0 .2 A SD103CW S8 20 14 20 .071(1.8) .055(1.4) U ni t s V V V A A V 5 .0 @3 0 V 5 .0 @2 0 V 50 300 -5 5 to +1 2 5 5 .0 @1 0 V uA pF O C/W O C REV.0.1-MAR.3.2009 PAGE . 1 SD103AW~SD103CW RATING AND CHARACTERISTIC CURVES 1000 , AVERAGE FORWARD CURRENT AMPS 0.8 0.6 0.5 0.4 0.3 0.2 0.1 0 FORAWRD CURRENT, mA 20 30 40 50 60 70 80 90 100 110 120 130 0.7 100 10 1.0 0.2 0.4 0.6 0.8 1.0 AMBIENT TEMPERATURE, C O FORWARD VOLTAGE, VOLTS Fig.1 FORWARD CURRENT DERATING CURVE Fig.2 TYPICAL FORWARD CHARACTERISTIC 1000 100 REVERSE CURRENT, uAmps T J =125 C O CAPACITANCE, pF T J =25 C O 100 10 10 T J =75 OC 1.0 1.0 0.1 0 10 20 30 40 0.1 0 10 20 30 40 REVERSE VOLTAGE, Volts REVERSE VOLTAGE, VOLTS Fig.3 TYPICAL REVERSE CURRENT Fig.4 TYPICAL JUNCTION CAPACITANCE REV.0.1-MAR.3.2009 PAGE . 2 SD103AW~SD103CW MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 10K per 13" plastic Reel T/R - 3K per 7" plastic Reel LEGAL STATEMENT Copyright PanJit International, Inc 2009 The information presented in this document is believed to be accurate and reliable. The specifications and information herein are subject to change without notice. Pan Jit makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose. Pan Jit products are not authorized for use in life support devices or systems. Pan Jit does not convey any license under its patent rights or rights of others. REV.0.1-MAR.3.2009 PAGE . 3
