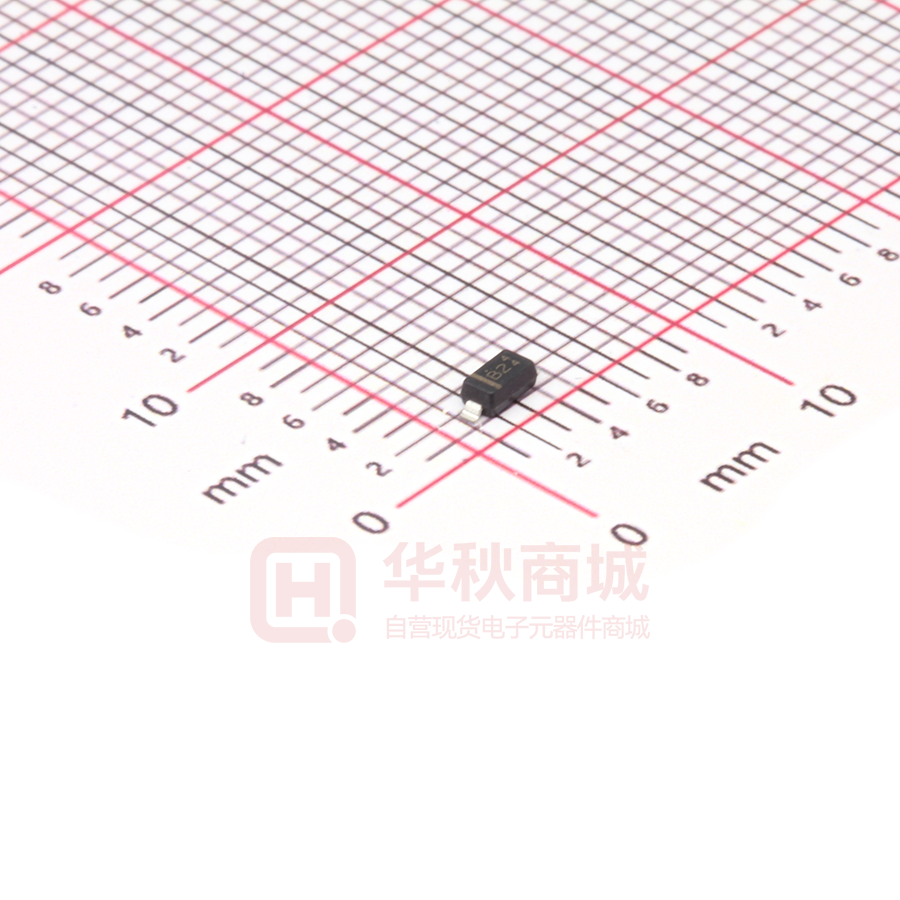

SS0520_R1_00001

SS0520~SS0540 SURFACE MOUNT SCHOTTKY BARRIER VOLTAGE 0.5 Ampere CURRENT 20 to 40 Volt 0.154(3.90) 0.141(3.60) FEATURES • Low turn-on voltage 0.110(2.80) 0.098(2.50) • Fast switching • PN Junction Guard Ring for Transient and ESD Protection. 0.028(0.70) 0.019(0.50) • Lead free in compliance with EU RoHS 2.0 0.071(1.80) 0.055(1.40) • Green molding compound as per IEC 61249 standard MECHANICAL DATA 0.008(0.20)MAX. 0.053(1.35) 0.037(0.95) • Case: SOD-123, Plastic • Terminals: Solderable per MIL-STD-750, Method 2026 0.005(0.12)MAX. 0.016(0.40)MIN. • Polarity: Color band denotes cathode end • Approx. Weight: 0.0004 ounces, 0.01 grams 1 2 Cathode Anode o MAXIMUM RATINGS (TA=25 C unless otherwise noted) PA RA M E T E R SY MBO L M a r k i ng C o d e SS0520 SS0530 S S0 5 4 0 B2 B3 B4 UNI T S M a xi mum R e c ur r e nt P e a k R e ve r s e Vo l t a g e V RRM 20 30 40 V M a xi mum R M S V o l t a g e V RM S 14 21 28 V M a xi mum D C B l o c k i ng V o l t a g e V DC 20 30 40 V M a xi mum A ve r a g e F o r w a r d C ur r e nt a t T A = 7 5 o C I P e a k F o r w a r d S ur g e C ur r e nt , 8 . 3 ms s i ng l e ha lf s i ne - w a ve s up e r i mp o s e d o n r a t e d l o a d I AV FSM 0. 5 A 5.5 A P o w e r D i s s i p a t i o n ( M o unt e d o n 4 8 c m 2 F R - 4 P C B ) PD 300 mW Ty p i c a l J unc t i o n C a p a c i t a nc e a t V R = 0 V DC CJ 170 pF R θJL R θJ A 150 206 T J, T STG -55 t o +125 Ty p i c a l T he r ma l R e s is t a nc e O p e r a t i ng J unc t i o n a nd S t o r a g e Te mp e r a t ur e R a ng e O C / W O C o ELECTRICAL CHARACTERISTICS (TA=25 C unless otherwise noted) PA RA M E T E R SY MBO L SS0520 SS0530 SS0540 UNI T S M a xi mum I ns t a nt a ne o us F o r w a r d Vo l t a g e VF 0. 3@ 0. 1A 0. 385@ 0. 5A 0.375@ 0. 1A 0.430@ 0. 5A 0.51@ 0. 5A 0.62@1.0A V M a xi mum R e ve r s e C ur r e nt IR 7 5 @ V R= 1 0 V 2 0 @ V R= 1 5 V 1 0 @ V R= 2 0 V uA September 10,2019-REV.06 PAGE . 1 Percent of Reverse Voltage (%) SS0520~SS0540 120 100 80 60 30~40V 40 20V 20 0 0 25 50 75 100 125 TJ, Junction Temperature (°C) Fig.5 Operating Temperature Derating Curve September 10,2019-REV.06 PAGE . 2 SS0520~SS0540 MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 10K per 13" plastic Reel T/R - 3K per 7" plastic Reel September 10,2019-REV.06 PAGE . 3 SS0520~SS0540 Part No_packing code_Version SS0520_R1_00001 SS0520_R2_00001 For example : RB500V-40_R2_00001 Serial number Version code means HF Packing size code means 13" Part No. Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING September 10,2019-REV.06 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 4 SS0520~SS0540 Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. September 10,2019-REV.06 PAGE . 5
