SS1060HEWS

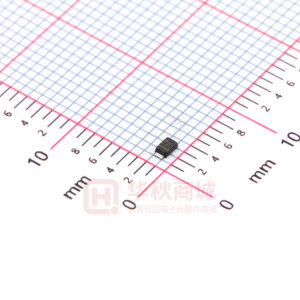

SS1060HEWS SCHOTTKY BARRIER DIODE FEATURES • SOD-323HE low profile package • Low forward voltage drop, low reverse current 0.038(0.95) 0.025(0.65) SOD-323HE Unit: inch (mm) 0.107(2.70) 0.090(2.30) 0.077(1.95) 0.068(1.75) 0.030(0.75) 0.017(0.45) 0.055(1.40) 0.047(1.20) • High Efficiency • In compliance with EU RoHS 2002/95/EC directives and with Halogen Free 0.004(0.10) MAX. 0.008(0.20) 0.004(0.10) 0.030(0.75) 0.021(0.55) APPLICATIONS • Low voltage high frequency inverters • DC/DC converters • Polarity protection • Freewheeling • Marking : EW 1 2 0.061(1.55) 0.045(1.15) 0.032(0.80) 0.015(0.40) Cathode Anode ABSOLUTE MAXIMUM RATINGS (TA=25oC) PARAMETER Maximum Repetitive Peak Reverse Voltage Maximum Average Rectified Forward Current Peak Forward Surge Current (Half Sine Wave , 1 cycle , non-repetitive ) Operating Junciton Temperature Range Storage Temperature Range SYMBOL VRRM IO I FSM LIMITS 60 1.0 22 UNIT V A A O TJ TSTG -40 to +150 -40 to +150 C C O ELECTRICAL CHARACTERISTICS (TA=25oC) PA RA M E TE R S YMB O L V F1 F o rw a rd Vo lt a g e V F2 V F3 IR 1 Re ve rs e C urr e nt IR 2 R θJ A The r ma l Re s i s ta nc e ( No te ) R θJ L J unc t i o n t o L e a d 50 o TE S T C ON D ITIO NS IF= 0 . 1 A IF= 0 . 7 A IF= 1 . 0 A V R= 5 V V R= 6 0 V J unc t i o n t o A m b i e nt M IN. - TYP. 0 .3 8 0 .5 5 0 .6 3 0 .3 3 - MAX. 0 .4 3 0 .5 8 0 .6 8 100 220 UNITS V V V μA μA o C /W C /W Note : Mounted on P.C Board with (15mmx50mm) copper pad areas. This data sheet contains data from the objective specification for new product development, assuming the target product has already initiated the development process. PANJIT reserves the right to change the specification in any manner without notice. Draft data sheet cannot be released without expressed authorization from the RD group associated, PMAE and HQA members. NO EXCEPTIONS. Draft data sheet will be provided to customer within 4 working days after the request is placed and reviewed. October 06,2010-REV.02 PAGE . 1 SS1060HEWS 120 1.2 CJ, Junction Capacitance (pF) 100 80 60 40 20 0 0 2 4 6 8 10 VR Reverse Bias Voltage (V) , 1 IF, Forward Current (A) 0.8 0.6 0.4 0.2 0 0 25 50 75 100 125 150 TL, Lead Temperature (°C) Fig.1 Forward Current Derating Curve Fig.2 Typical Junction Capacitance 100 IR,R ev ers e C urr ent (m A ) TJ = 150°C 10 IF, F orw ard C urrent (A ) 10 1 0.1 0.01 TJ = 25°C TJ = 125°C T J = 150°C T J = 125°C TJ =75°C 1 T J = 75°C T J = 25°C 0.001 0.0001 20 40 60 80 100 0.1 0 0.5 1 1.5 Percent of Rated Peak Reverse Voltage (%) V F, Forward Voltage (V) Fig.3 Typical Reverse Characteristics Fig.4 Typical Forward Characteristics October 06,2010-REV.02 PAGE . 2 SS1060HEWS MOUNTING PAD LAYOUT SOD-323HE SOD-123HE Unit: inch(mm) 0.079 (2.0) 0.031 (0.8) 0.043 0.039 (1.1) 0.078 (1.9) ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 5K per 7” plastic Reel LEGAL STATEMENT Copyright PanJit International, Inc 2010 The information presented in this document is believed to be accurate and reliable. The specifications and information herein are subject to change without notice. Pan Jit makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose. Pan Jit products are not authorized for use in life support devices or systems. Pan Jit does not convey any license under its patent rights or rights of others. October 06,2010-REV.02 (1.0) PAGE . 3
