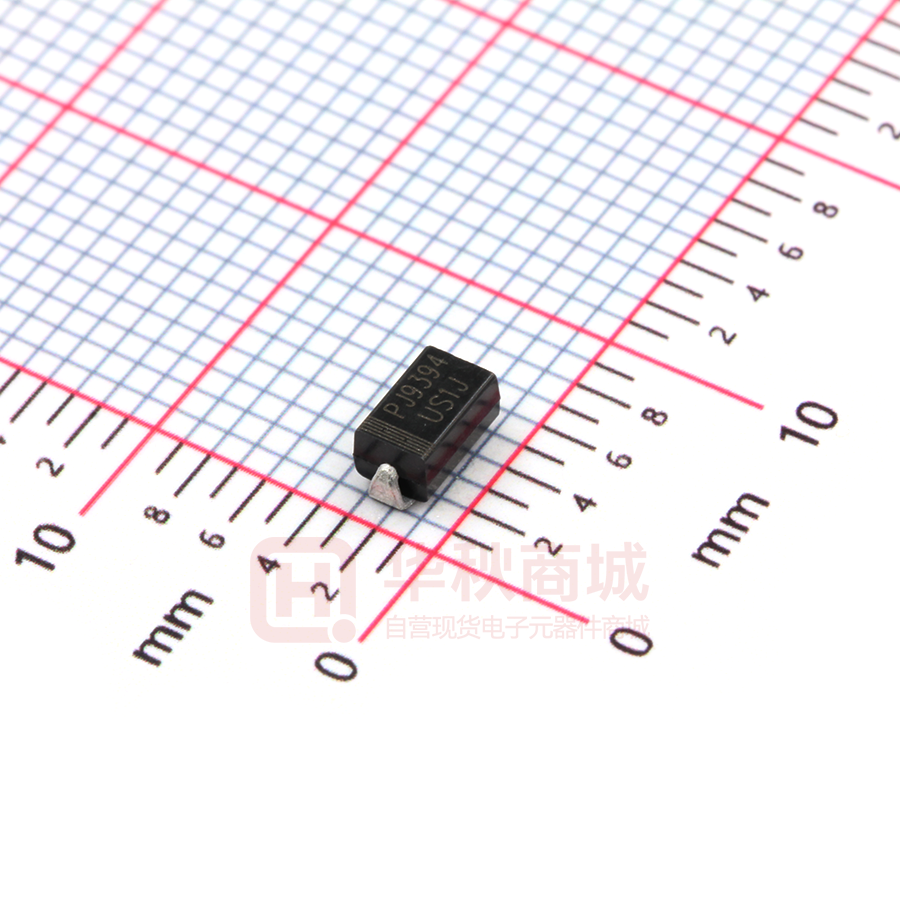

US1JW_R1_00001

US1AW SERIES SURFACE MOUNT ULTRAFAST RECTIFIER VOLTAGE 50 to 1000 Volt CURRENT 1 Ampere FEATURES • For surface mounted applications in order to optimize board space • Easy pick and place • Ultrafast recovery times for high efficiency • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA • • • • • Case: SMA(W) molded plastic Terminals: Solder plated, solderable per MIL-STD-750,Method 2026 Polarity: Color band denotes cathode end Standard packaging: 12mm tape (EIA-481) Weight: 0.002 ounce, 0.064 gram 1 2 Cathode Anode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. PA RA M E TE R S YM B OL US 1 AW US 1 B W US 1 D W US 1 G W US 1 J W US 1 K W US 1 M W UNITS Ma xi m um Re c urre nt P e a k R e ve r s e Vo lta g e V RRM 50 100 200 400 600 800 1000 V Ma xi m um R M S V o lt a g e V RM S 35 70 140 280 420 560 700 V Ma xi m um D C B lo c k i ng Vo lta g e V DC 50 100 200 400 600 800 1000 V Ma xi m um A ve ra g e F o r wa rd C urre nt a t T L = 1 2 5 O C I F ( AV ) 1 A P e a k F o rw a rd S urg e C urr e nt : 8 . 3 ms s i ng le ha lf s i ne -wa ve s up e ri mp o s e d o n r a te d lo a d (J E D E C m e tho d ) IF S M 30 A Ma xi m um F o rwa r d Vo lta g e a t 1 A VF Ma xi m um D C Re ve rs e C urr e nt a t Ra te d D C B lo c k i ng Vo lta g e IR 10 A Typ i c a l J unc ti o n C a p a c i ta nc e (No te s 2 ) CJ 17 pF RJL 30 Typ i c a l The rma l R e s i s ta nc e ( No te s 3 ) Ma xi m um Re ve rs e R e c o ve ry Ti me ( No te s 1 ) Op e r a ti ng J unc ti o n a nd S to r a g e Te mp e ra tur e Ra ng e t rr T J ,T S TG 1 1 .3 50 1 .7 O 100 -5 5 t o + 1 5 0 V C / W ns O C NOTES: 1. Reverse recovery test conditions: I F =0.5A, I R =1.0A, I rr =0.25A. 2. Measured at 1 MHz and applied V r = 4.0 volts. 3. Mounted on infinite heatsink. May 17,2013-REV.07 PAGE . 1 100 1.2 1 CJ, Junction Capacitance (pF) IF, Forward Current (A) US1AW SERIES 0.8 0.6 0.4 0.2 50-200V 10 400V 0 0 25 50 75 100 125 150 0.1 100 600-1000V 400V TJ = 25°C 1 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) IF, Forward Current (A) IF, Forward Current (A) 50-200V 600-1000V 0.1 TJ = 25°C 0.01 0.5 0.7 0.9 1.1 1.3 1.5 1.7 VF, Forward Voltage (V) Fig.5 - Typical Forward Characteristics May 17,2013-REV.07 10000 600-1000V 400V 1000 50-200V TJ = 125°C 100 20 40 60 80 100 Fig.4 - Typical Reverse Characteristics 400V 1 100 Percent of Rated Peak Reverse Voltage (%) Fig.3 - Typical Reverse Characteristics 10 10 Fig.2 - Typical Junction Capacitance IR,Reverse Current (nA) IR,Reverse Current (nA) Fig.1 - Forward Current Derating Curve 50-200V 1 VR, Reverse Bias Voltage (V) TL, Lead Temperature (°C) 10 600-1000V 1 1.9 10 400V 50-200V 1 600-1000V 0.1 TJ = 150°C 0.01 0.3 0.5 0.7 0.9 1.1 1.3 1.5 1.7 VF, Forward Voltage (V) Fig.6 - Typical Forward Characteristics PAGE . 2 US1AW SERIES MOUNTING PAD LAYOUT ORDER INFORMATION • Packing information T/R - 7.5K per 13" plastic Reel T/R - 1.8K per 7" plastic Reel May 17,2013-REV.07 PAGE . 3 US1AW SERIES Part No_packing code_Version US1AW_R1_00001 US1AW_R2_00001 For example : RB500V-40_R2_00001 Serial number Version code means HF Packing size code means 13" Part No. Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING May 17,2013-REV.07 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 4 US1AW SERIES Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. May 17,2013-REV.07 PAGE . 5
