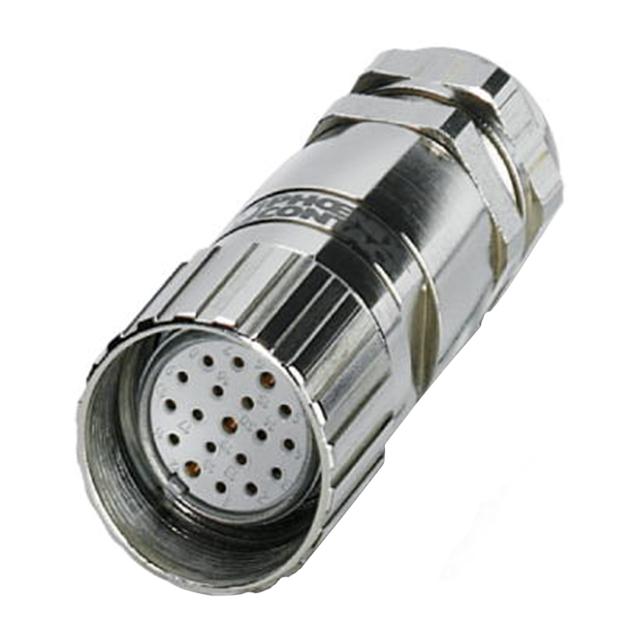

https://www.phoenixcontact.com/us/products/1000042 Female connector - V-RC/TGUM 13/KVD 13/LBL 16+3 - 1000042 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) M23 socket, 19-pos., straight, freely configurable, with solder connection, for external cable diameter of 10 mm ... 14 mm Key Commercial Data Packing unit 1 pc Weight per Piece (excluding packing) 100.0 g Custom tariff number 85366990 Country of origin Germany Technical data General Rated voltage 150 V Total rated current 10 A (with 1 mm² conductor cross section) Number of positions 19 Flammability rating according to UL 94 V0 Note The connector is designed for use on sensor/actuator boxes with an M23 plug-in connection. Ambient conditions Degree of protection IP65 IP67 Ambient temperature (operation) -20 °C ... 80 °C Master cable data/connection data Connection method M23 screw locking Conductor cross section max. (signal) 1 mm² Conductor cross section max. (energy) 1.5 mm² External cable diameter min. 10 mm 03/06/2016   Page 1 / 3 https://www.phoenixcontact.com/us/products/1000042 Female connector - V-RC/TGUM 13/KVD 13/LBL 16+3 - 1000042 Technical data Master cable data/connection data External cable diameter max. 14 mm Insulation material Housing material GD-Zn Housing surface material Nickel-plated Contact material CuZn Contact surface material Gold-plated Contact carrier material PBT Connection assignment Slot/position = pin = conductor color 1 / 4 (A) = 15 = WH 1 / 2 (B) = 7 = GY/PK 2 / 4 (A) = 5 = GN 2 / 2 (B) = 4 = RD/BU 3 / 4 (A) = 16 = YE 3 / 2 (B) = 8 = WH/GN 4 / 4 (A) = 3 = GY 4 / 2 (B) = 14 = BN/GN 5 / 4 (A) = 17 = PK 5 / 2 (B) = 9 = WH/YE 6 / 4 (A) = 2 = RD 6 / 2 (B) = 13 = YE/BN 7 / 4 (A) = 11 = BK 7 / 2 (B) = 10 = WH/GY 8 / 4 (A) = 1 = VT 8 / 2 (B) = 18 = GY/BN 1-8 / 1 (+ 120 V) = 19 = BN 1-8 / 3 (0 V) = 6 = BU 1-8 / 5 (PE) = 12 = GN/YE Standards and Regulations Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 03/06/2016   Page 2 / 3 https://www.phoenixcontact.com/us/products/1000042 Female connector - V-RC/TGUM 13/KVD 13/LBL 16+3 - 1000042 Classifications eCl@ss eCl@ss 5.1 27260701 eCl@ss 6.0 27061801 eCl@ss 7.0 27061801 eCl@ss 8.0 27440102 ETIM ETIM 2.0 EC000437 ETIM 3.0 EC001121 ETIM 4.0 EC001121 ETIM 5.0 EC002635 UNSPSC UNSPSC 6.01 31261502 UNSPSC 7.0901 31261502 UNSPSC 11 31261502 UNSPSC 12.01 31261502 UNSPSC 13.2 31261502 Drawings Schematic diagram Dimensional drawing 49,1 Ø26 M23x1 N 12 1 11 18 17 13 10 19 3 16 9 SO 8 4 14 15 5 7 6 2 20 24 Pin assignment M23 socket, 19-pos., female side view Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 03/06/2016   Page 3 / 3
