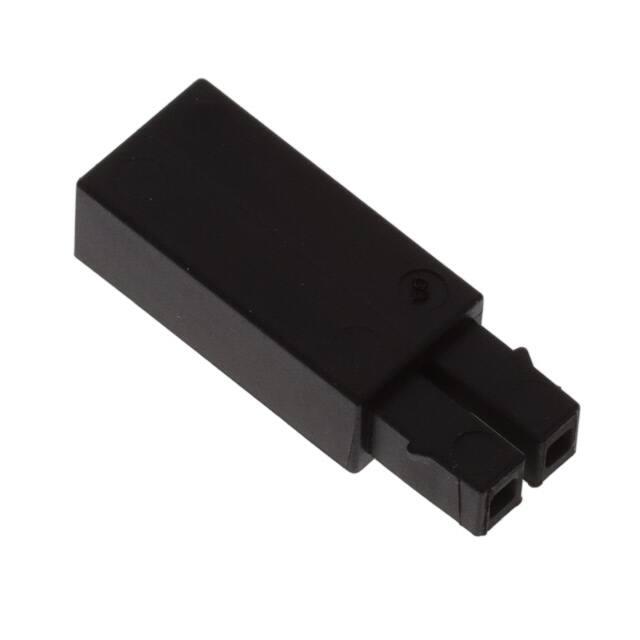

2018-09-20 Product version 00 Data sheet Document revision 00 Order No.: 1012266 Type: MCC 0,5/ 2-ST-2,54 Main features      No. of pos. Conductor cross section Color Pitch Connection method 2 0.75 mm² black 2.54 mm Crimp connection     Nominal current Nominal voltage Connection direction Type of packaging 6A 160 V 0° packed in cardboard   1   PCB connector, Crimp connection Your advantages   Cost-effective connection of crimped conductors in large quantities Gold-plated contacts ensure transfer quality remains stable over the long term Small component size for applications where space is at a premium Tools for manual and automatic crimping available as an option Make sure you always use the latest documentation. It can be downloaded at: phoenixcontact.net/product/1012266 © PHOENIX CONTACT 2018 2 2018-09-20 Product version 00 Table of contents 1 Main features........................................................................................................................... 1 2 Your advantages ..................................................................................................................... 1 3 Table of contents ..................................................................................................................... 2 4 3D model in PDF can be activated (Acrobat Reader only)....................................................... 3 5 item properties......................................................................................................................... 4 5.1 Connection capacity ............................................................................................................. 4 5.2 Connection capacity AWG ..................................................................................................... 4 6 Dimensions.............................................................................................................................. 5 6.1 Dimensions for the product .................................................................................................... 5 7 Series drawing......................................................................................................................... 6 8 Packaging information ............................................................................................................. 7 9 Application............................................................................................................................... 7 9.1 Temperature limit values ....................................................................................................... 7 10 Mechanical tests...................................................................................................................... 8 10.1 Termination and connection method ......................................................................................... 8 11 Electrical tests ......................................................................................................................... 9 11.1 Electrical data ..................................................................................................................... 9 11.2 Air and creepage distances .................................................................................................... 9 12 Current carrying capacity/derating curves ............................................................................. 10 13 Environmental and durability tests ......................................................................................... 11 13.1 Vibration test .................................................................................................................... 11 14 Approvals .............................................................................................................................. 11 15 Commercial Data................................................................................................................... 12 16 corresponding headers.......................................................................................................... 12 17 Accessories ........................................................................................................................... 12 18 Combination tests.................................................................................................................. 13 © PHOENIX CONTACT 2018   3   Document revision 00   1012266 MCC 0,5/ 2-ST-2,54 REF 1012266 PHOENIX CONTACT 2 / 13 2018-09-20 Product version 00 1012266 MCC 0,5/ 2-ST-2,54 3D model in PDF can be activated (Acrobat Reader only) © PHOENIX CONTACT 2018       4 Document revision 00 REF 1012266 PHOENIX CONTACT 3 / 13 2018-09-20 Product version 00 1012266 MCC 0,5/ 2-ST-2,54 5 Document revision 00 item properties Order No. 1012266 Type MCC 0,5/ 2-ST-2,54 Type of contact Female connector Range of articles MCC 0,5/..-ST Pitch 2.54 mm Number of positions 2 Connection method Crimp connection Type of locking without without Number of contacts / solder pins per potential 5.1 1 Connection capacity Conductor cross section, flexible 0.14 mm² ... 0.75 mm² (Maximum external diameter of the insulation 1.9 mm) Stripping length 4.1 mm ... 4.5 mm Tightening torque 5.2 Connection capacity AWG Conductor cross section AWG 26 ... 18 (Maximum external diameter of the insulation 1.9 mm) Insulating material data Housing Insulating material PA I 600 Flammability rating according to UL 94 V0   Insulating material group CTI according to IEC 60112 black (9005) Glow wire flammability index GWFI according to EN 60695-2-12 850 Glow wire ignition temperature GWIT according to EN 60695-2-13 775 Temperature for the ball pressure test according to EN 60695-10-2 125 °C © PHOENIX CONTACT 2018     Color REF 1012266 PHOENIX CONTACT 4 / 13 2018-09-20 Product version 00 1012266 MCC 0,5/ 2-ST-2,54 6 Dimensions 6.1 Dimensions for the product Document revision 00 16 mm Width 5.58 mm Total height 3.95 mm Dimension a 2.54 mm © PHOENIX CONTACT 2018       Length REF 1012266 PHOENIX CONTACT 5 / 13 2018-09-20 Product version 00 1012266 MCC 0,5/ 2-ST-2,54 Series drawing © PHOENIX CONTACT 2018       7 Document revision 00 REF 1012266 PHOENIX CONTACT 6 / 13 2018-09-20 Product version 00 1012266 MCC 0,5/ 2-ST-2,54 8 Document revision 00 Packaging information Type of packaging packed in cardboard Pieces per package 250 9 Application 9.1 Temperature limit values -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (operation) -40 °C (dependent on the derating curve) © PHOENIX CONTACT 2018       Ambient temperature (storage/transport) REF 1012266 PHOENIX CONTACT 7 / 13 2018-09-20 Product version 00 1012266 MCC 0,5/ 2-ST-2,54 10 Document revision 00 Mechanical tests Mechanical test group A Specification IEC 61984:2008-10 Visual examination Test passed Specification IEC 60512-1-1:2002-02 Dimensional test Test passed Specification IEC 60512-1-2:2002-02 Resistance of marking Test passed Specification IEC 60068-2-70:1995-12 Insertion and withdrawal force Test passed Specification IEC 60512-13-2:2006-02 No. of cycles 100 Insertion strength per pos. approx. 2N Withdraw strength per pos. approx. 3N Polarization and coding Test passed Specification IEC 60512-13-5:2006-02 Test force 20 N Contact retention in insert Test passed Specification IEC 60512-15-1:2008-05 Test force per pos. 20 N Termination and connection method © PHOENIX CONTACT 2018       10.1 REF 1012266 PHOENIX CONTACT 8 / 13 2018-09-20 Product version 00 1012266 MCC 0,5/ 2-ST-2,54 11 Electrical tests 11.1 Electrical data Rated current / conductor cross section Document revision 00 6 A / 0.75 mm² Rated insulation voltage (III/2) 160 V Rated surge voltage (III/2) 2.5 kV Contact resistance 2.1 mΩ Degree of pollution 2 11.2 Air and creepage distances Component Plug component Specification IEC 60664-1:2007-04 Mains type unearthed mains Insulating material group I Comparative tracking index (IEC 60112:2003-01) CTI 600 Rated insulation voltage 160 V 160 V Rated surge voltage 2.5 kV 2.5 kV 2.5 kV Degree of pollution 3 2 2 Overvoltage category III III II Minimum clearance case A (inhomogeneous field) 1.5 mm 1.5 mm 1.5 mm Minimum value of the creepage path requirement in acc. with table 2 mm 0.8 mm 1.6 mm © PHOENIX CONTACT 2018       320 V REF 1012266 PHOENIX CONTACT 9 / 13 2018-09-20 Product version 00 1012266 MCC 0,5/ 2-ST-2,54 12 Document revision 00 Current carrying capacity/derating curves Specification IEC 61984:2008-10 Note Representation based on IEC 60512-5-2:2002-02 Reduction factor 0.8 Number of positions See diagram Conductor cross section Current strength [A] Type: MCC 0,5/...-ST-2,54 with MC 0,5/...-G-2,54 P20 THR R... 12 10 8 6 4 = 2-pos. = 5-pos. = 16-pos. 2 0 0 10 20 30 40 50 60 70 80 90 100 110 Ambient temperature [°C] Insulation resistance IEC 60512-3-1:2002-02 Result Test passed Insulation resistance, neighboring positions > 12 TΩ © PHOENIX CONTACT 2018       Specification REF 1012266 PHOENIX CONTACT 10 / 13 2018-09-20 Product version 00 1012266 MCC 0,5/ 2-ST-2,54 13 Environmental and durability tests 13.1 Vibration test Document revision 00 Specification IEC 60068-2-6:2007-12 Result Test passed Frequency 10 - 500 - 10 Hz Sweep speed 1 octave/min Amplitude 0.35 mm (10 - 60.1 Hz) Acceleration 5g (60.1 - 500 Hz) Test duration per axis 2h Test directions X-, Y- and Z-axis Note The connected conductor loops were guided to the test sample at a distance of approx. 10 cm. Approvals © PHOENIX CONTACT 2018       14 REF 1012266 PHOENIX CONTACT 11 / 13 2018-09-20 Product version 00 1012266 MCC 0,5/ 2-ST-2,54 15 Document revision 00 Commercial Data Order No. 1012266 Type MCC 0,5/ 2-ST-2,54 Pieces per package 250 Net weight 0.289 g GTIN 4055626487977 Information that applies locally, see link on page 1 Country of origin 16 Information that applies locally, see link on page 1 corresponding headers Order No. Type 1821245 MC 0,5/ 2-G-2,54 P20 THR R24 1821397 MCV 0,5/ 2-G-2,54 P20 THR R24 1821546 MCV 0,5/ 2-G-2,54 SMD R24 1821698 MC 0,5/ 2-G-2,54 SMD R24 17 Accessories Description Type 1013425 MCC 0,5-MP AU 0,14-0,5 1013420 MCC 0,5-MP AU 0,14-0,5 R 1013419 MCC 0,5-MP AU 0,34-0,75 1013418 MCC 0,5-MP AU 0,34-0,75 R 1064998 CRIMPFOX-P CC 0.75 L © PHOENIX CONTACT 2018       Crimping pliers, for COMBICON crimp connectors with cross section: 0.14 ... 0.75 mm². Unlockable pressure lock, precise parallel crimping, front entry, B crimp, incl. 2 positioning aids Order No. REF 1012266 PHOENIX CONTACT 12 / 13 2018-09-20 Product version 00 1012266 MCC 0,5/ 2-ST-2,54 18 Document revision 00 Combination tests MCC 0,5/..-ST MC 0,5/..-G-THR IEC 61984 IEC 61984 Mechanical tests (A) Insertion/withdrawal force per position approx. 2 N / 3 N Polarization when inserted Requirement >20 N Test passed Contact holder in insert Requirements >20 N Test passed Durability tests (B) Contact resistance R1 2.1 mΩ Insertion/withdrawal cycles 100 Contact resistance R2 2.1 mΩ Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 2.95 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 1.39 kV Thermal tests (C) 16 Tested conductor cross section 0.75 mm² Test current 6A Upper limiting temperature Requirements < 100°C Test passed     Tested number of positions Climatic tests (D) -55 °C/2 h Test sequence 2: heat storage 105 °C/168 h Test sequence 3: noxious gas storage (ISO 6988) 1.0 dm3 SO2 on 300 dm3/ 40 °C/1 cycle Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 2.95 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 1.39 kV   Test sequence 1: low temperature storage Specification IEC 61984:2008-10 Degree of protection Back of hand safety with IP10 access probe REF 1012266 PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany phoenixcontact.com © PHOENIX CONTACT 2018 Environmental and endurance tests (E) PHOENIX CONTACT 13 / 13
