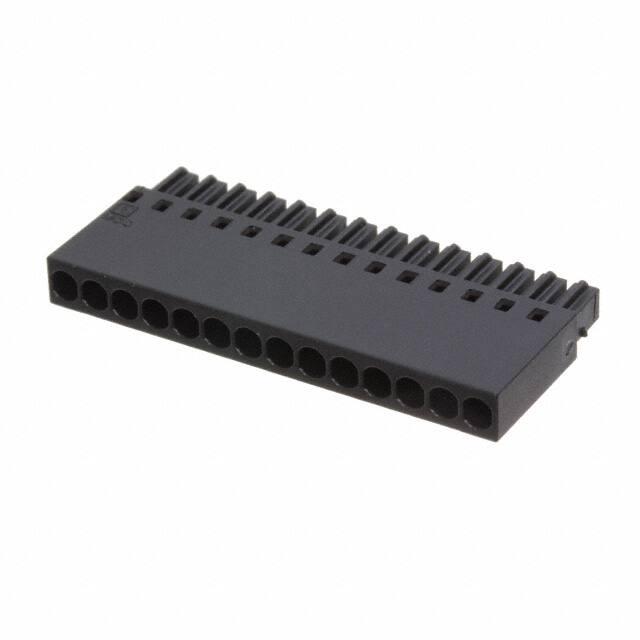

2018-10-18 Product version 00 Data sheet Document revision 00 Order No.: 1012279 Type: MCC 0,5/14-ST-2,54 PCB connector, Crimp connection Main features      No. of pos. Conductor cross section Color Pitch Connection method 14 0.75 mm² black 2.54 mm Crimp connection     Nominal current Nominal voltage Connection direction Type of packaging 6A 160 V 0° packed in cardboard   1   The figure shows a 10-position version of the product Your advantages   Cost-effective connection of crimped conductors in large quantities Gold-plated contacts ensure transfer quality remains stable over the long term Small component size for applications where space is at a premium Tools for manual and automatic crimping available as an option Make sure you always use the latest documentation. It can be downloaded at: phoenixcontact.net/product/1012279 © PHOENIX CONTACT 2018 2 2018-10-18 Product version 00 Table of contents 1 Main features........................................................................................................................... 1 2 Your advantages ..................................................................................................................... 1 3 Table of contents ..................................................................................................................... 2 4 3D model in PDF can be activated (Acrobat Reader only)....................................................... 3 5 item properties......................................................................................................................... 4 5.1 Connection capacity ............................................................................................................. 4 5.2 Connection capacity AWG ..................................................................................................... 4 6 Dimensions.............................................................................................................................. 5 6.1 Dimensions for the product .................................................................................................... 5 7 Series drawing......................................................................................................................... 6 8 Packaging information ............................................................................................................. 7 9 Application............................................................................................................................... 7 9.1 Temperature limit values ....................................................................................................... 7 10 Mechanical tests...................................................................................................................... 8 10.1 Termination and connection method ......................................................................................... 8 11 Electrical tests ......................................................................................................................... 9 11.1 Electrical data ..................................................................................................................... 9 11.2 Air and creepage distances .................................................................................................... 9 12 Current carrying capacity/derating curves ............................................................................. 10 13 Environmental and durability tests ......................................................................................... 11 13.1 Vibration test .................................................................................................................... 11 14 Approvals .............................................................................................................................. 11 15 Commercial Data................................................................................................................... 12 16 corresponding headers.......................................................................................................... 12 17 Accessories ........................................................................................................................... 12 18 Combination tests.................................................................................................................. 13 © PHOENIX CONTACT 2018   3   Document revision 00   1012279 MCC 0,5/14-ST-2,54 REF 1012266 PHOENIX CONTACT 2 / 13 2018-10-18 Product version 00 1012279 MCC 0,5/14-ST-2,54 3D model in PDF can be activated (Acrobat Reader only) © PHOENIX CONTACT 2018       4 Document revision 00 REF 1012266 PHOENIX CONTACT 3 / 13 2018-10-18 Product version 00 1012279 MCC 0,5/14-ST-2,54 5 Document revision 00 item properties Order No. 1012279 Type MCC 0,5/14-ST-2,54 Plug-in system MICRO COMBICON - FMC 0,5 Product type PCB connector Type of contact Female connector Range of articles MCC 0,5/..-ST Pitch 2.54 mm Number of positions 14 Connection method Crimp connection Type of locking without without Number of levels 1 Number of contacts / solder pins per potential 1 5.1 Connection capacity Conductor cross section, flexible 0.14 mm² ... 0.75 mm² (Maximum external diameter of the insulation 1.9 mm) Stripping length 4.1 mm ... 4.5 mm Tightening torque Connection capacity AWG Insulating material data Housing Insulating material PA Insulating material group I CTI according to IEC 60112 600 Flammability rating according to UL 94 V0 black (9005) Glow wire flammability index GWFI according to EN 60695-2-12 850 Glow wire ignition temperature GWIT according to EN 60695-2-13 775 Temperature for the ball pressure test according to EN 60695-10-2 125 °C © PHOENIX CONTACT 2018 Color   26 ... 18 (Maximum external diameter of the insulation 1.9 mm)   Conductor cross section AWG   5.2 REF 1012266 PHOENIX CONTACT 4 / 13 2018-10-18 Product version 00 1012279 MCC 0,5/14-ST-2,54 6 Dimensions 6.1 Dimensions for the product Document revision 00 Length 16 mm Width 36.06 mm Total height 3.95 mm Dimension a 33.02 mm © PHOENIX CONTACT 2018       Coplanarity REF 1012266 PHOENIX CONTACT 5 / 13 2018-10-18 Product version 00 1012279 MCC 0,5/14-ST-2,54 Series drawing © PHOENIX CONTACT 2018       7 Document revision 00 REF 1012266 PHOENIX CONTACT 6 / 13 2018-10-18 Product version 00 1012279 MCC 0,5/14-ST-2,54 8 Document revision 00 Packaging information Type of packaging packed in cardboard Pieces per package 100 9 Application 9.1 Temperature limit values -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (operation) -40 °C (dependent on the derating curve) © PHOENIX CONTACT 2018       Ambient temperature (storage/transport) REF 1012266 PHOENIX CONTACT 7 / 13 2018-10-18 Product version 00 1012279 MCC 0,5/14-ST-2,54 10 Document revision 00 Mechanical tests Mechanical test group A Specification IEC 61984:2008-10 Visual examination Test passed Specification IEC 60512-1-1:2002-02 Dimensional test Test passed Specification IEC 60512-1-2:2002-02 Resistance of marking Test passed Specification IEC 60068-2-70:1995-12 Insertion and withdrawal force Test passed Specification IEC 60512-13-2:2006-02 No. of cycles 100 Insertion strength per pos. approx. 2N Withdraw strength per pos. approx. 3N Polarization and coding Test passed Specification IEC 60512-13-5:2006-02 Test force 20 N Contact retention in insert Test passed Specification IEC 60512-15-1:2008-05 Test force per pos. 20 N Termination and connection method © PHOENIX CONTACT 2018       10.1 REF 1012266 PHOENIX CONTACT 8 / 13 2018-10-18 Product version 00 1012279 MCC 0,5/14-ST-2,54 11 Electrical tests 11.1 Electrical data Rated current / conductor cross section Document revision 00 6 A / 0.75 mm² Rated insulation voltage (III/2) 160 V Rated surge voltage (III/2) 2.5 kV Contact resistance 2.1 mΩ Degree of pollution 2 11.2 Air and creepage distances Component Plug component Specification IEC 60664-1:2007-04 Mains type unearthed mains Insulating material group I Comparative tracking index (IEC 60112:2003-01) CTI 600 Rated insulation voltage 160 V 160 V Rated surge voltage 2.5 kV 2.5 kV 2.5 kV Degree of pollution 3 2 2 Overvoltage category III III II Minimum clearance case A (inhomogeneous field) 1.5 mm 1.5 mm 1.5 mm Minimum value of the creepage path requirement in acc. with table 2 mm 0.8 mm 1.6 mm © PHOENIX CONTACT 2018       320 V REF 1012266 PHOENIX CONTACT 9 / 13 2018-10-18 Product version 00 1012279 MCC 0,5/14-ST-2,54 12 Document revision 00 Current carrying capacity/derating curves Specification IEC 61984:2008-10 Note Representation based on IEC 60512-5-2:2002-02 Reduction factor 0.8 Number of positions See diagram Conductor cross section Current strength [A] Type: MCC 0,5/...-ST-2,54 with MC 0,5/...-G-2,54 P20 THR R... 12 10 8 6 4 = 2-pos. = 5-pos. = 16-pos. 2 0 0 10 20 30 40 50 60 70 80 90 100 110 Ambient temperature [°C] Insulation resistance IEC 60512-3-1:2002-02 Result Test passed Insulation resistance, neighboring positions > 12 TΩ © PHOENIX CONTACT 2018       Specification REF 1012266 PHOENIX CONTACT 10 / 13 2018-10-18 Product version 00 1012279 MCC 0,5/14-ST-2,54 13 Environmental and durability tests 13.1 Vibration test Document revision 00 Specification IEC 60068-2-6:2007-12 Result Test passed Frequency 10 - 500 - 10 Hz Sweep speed 1 octave/min Amplitude 0.35 mm (10 - 60.1 Hz) Acceleration 5g (60.1 - 500 Hz) Test duration per axis 2h Test directions X-, Y- and Z-axis Note The connected conductor loops were guided to the test sample at a distance of approx. 10 cm. 14 Approvals cULus Recognized  Use group B D mm²/AWG/kcmil 26-18 26-18 150 V 150 V Current 6A 6A © PHOENIX CONTACT 2018       Voltage REF 1012266 PHOENIX CONTACT 11 / 13 2018-10-18 Product version 00 1012279 MCC 0,5/14-ST-2,54 15 Document revision 00 Commercial Data Order No. 1012279 Type MCC 0,5/14-ST-2,54 Pieces per package 100 Net weight 1.693 g GTIN 4055626488578 Information that applies locally, see link on page 1 Country of origin 16 Information that applies locally, see link on page 1 corresponding headers Order No. Type 1821368 MC 0,5/14-G-2,54 P20 THR R56 1821517 MCV 0,5/14-G-2,54 P20 THR R56 1821818 MC 0,5/14-G-2,54 SMD R56 1821669 MCV 0,5/14-G-2,54 SMD R56 17 Accessories Description Type 1013425 MCC 0,5-MP AU 0,14-0,5 1013420 MCC 0,5-MP AU 0,14-0,5 R 1013419 MCC 0,5-MP AU 0,34-0,75 1013418 MCC 0,5-MP AU 0,34-0,75 R 1064998 CRIMPFOX-P CC 0.75 L © PHOENIX CONTACT 2018       Crimping pliers, for COMBICON crimp connectors with cross section: 0.14 ... 0.75 mm². Unlockable pressure lock, precise parallel crimping, front entry, B crimp, incl. 2 positioning aids Order No. REF 1012266 PHOENIX CONTACT 12 / 13 2018-10-18 Product version 00 1012279 MCC 0,5/14-ST-2,54 18 Document revision 00 Combination tests MCC 0,5/..-ST MC 0,5/..-G-THR IEC 61984 IEC 61984 Mechanical tests (A) Insertion/withdrawal force per position approx. 2 N / 3 N Polarization when inserted Requirement >20 N Test passed Contact holder in insert Requirements >20 N Test passed Durability tests (B) Contact resistance R1 2.1 mΩ Insertion/withdrawal cycles 100 Contact resistance R2 2.1 mΩ Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 2.95 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 1.39 kV Thermal tests (C) 16 Tested conductor cross section 0.75 mm² Test current 6A Upper limiting temperature Requirements < 100°C Test passed     Tested number of positions Climatic tests (D) -55 °C/2 h Test sequence 2: heat storage 105 °C/168 h Test sequence 3: noxious gas storage (ISO 6988) 1.0 dm3 SO2 on 300 dm3/ 40 °C/1 cycle Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 2.95 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 1.39 kV   Test sequence 1: low temperature storage Specification IEC 61984:2008-10 Degree of protection Back of hand safety with IP10 access probe REF 1012266 PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany phoenixcontact.com © PHOENIX CONTACT 2018 Environmental and endurance tests (E) PHOENIX CONTACT 13 / 13
