1015459

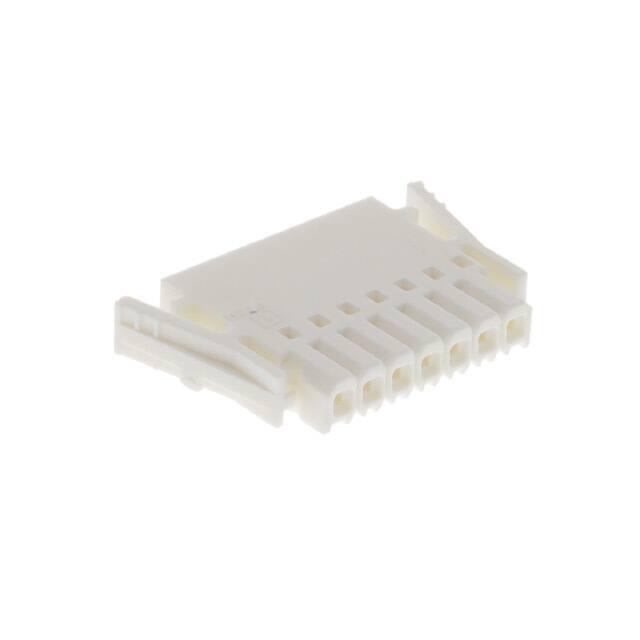

https://www.phoenixcontact.com/us/products/1015459 Printed-circuit board connector - PTCM 0,5/ 7-PL-2,5 WH - 1015459 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB connector, nominal cross section: 0.75 mm², color: white, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Female connector, number of potentials: 7, Number of rows: 1, Number of positions per row: 7, number of connections: 7, product range: PTCM 0,5/..-PL, pitch: 2.5 mm, connection method: Crimp connection, conductor/PCB connection direction: 0 °, plug-in system: COMBICON COMPACT PTSM, Locking: Snap-in locking, mounting: Self-locking flange, type of packaging: packed in cardboard The figure shows a 5-pos. version of the product Your advantages  White design: Stable color when welding and during use  High current carrying capacity of 6 A in very compact dimensions  Intuitive locking mechanism prevents accidental disconnection  Cost-effective connection of crimped conductors in large quantities  Tools for manual and automatic crimping available as an option Key Commercial Data Packing unit 1 pc Minimum order quantity 100 pc GTIN GTIN 4055626496436 Weight per Piece (excluding packing) 1.200 g Custom tariff number 85389099 Country of origin Germany Technical data Item properties Brief article description Printed-circuit board connector Connector system COMBICON COMPACT PTSM 05/19/2021   Page 1 / 10 https://www.phoenixcontact.com/us/products/1015459 Printed-circuit board connector - PTCM 0,5/ 7-PL-2,5 WH - 1015459 Technical data Item properties Type of contact Female connector Range of articles PTCM 0,5/..-PL Pitch 2.5 mm Number of positions 7 Number of levels 1 Number of connections 7 Number of potentials 7 Electrical parameters Nominal current 6A Nom. voltage 160 V Rated voltage (III/3) 160 V Rated voltage (III/2) 160 V Rated voltage (II/2) 320 V Rated surge voltage (III/3) 2.5 kV Rated surge voltage (III/2) 2.5 kV Rated surge voltage (II/2) 2.5 kV Connection capacity Connection method Crimp connection Conductor cross section flexible 0.14 mm² ... 0.75 mm² (Maximum external diameter of the insulation 1.9 mm) Conductor cross section AWG / kcmil 26 ... 18 (Maximum external diameter of the insulation 1.9 mm) Stripping length 4.1 mm ... 4.5 mm Flange specifications Type of locking Snap-in locking Mounting flange Self-locking flange Material data - contact Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/ JEDEC JESD 201 Contact material Cu alloy Surface characteristics hot-dip tin-plated Metal surface terminal point (top layer) Tin (4 - 8 µm Sn) Metal surface contact area (top layer) Tin (4 - 8 µm Sn) Material data - housing Housing color white (9010) Insulating material PA Insulating material group I 05/19/2021   Page 2 / 10 https://www.phoenixcontact.com/us/products/1015459 Printed-circuit board connector - PTCM 0,5/ 7-PL-2,5 WH - 1015459 Technical data Material data - housing CTI according to IEC 60112 600 Flammability rating according to UL 94 V0 Glow wire flammability index GWFI according to EN 60695-2-12 850 Glow wire ignition temperature GWIT according to EN 60695-2-13 775 Temperature for the ball pressure test according to EN 60695-10-2 125 °C Dimensions for the product Caption Schematische Abbildung - weitere Details siehe Produktfamilienzeichnung im Download Center Length [ l ] 16.2 mm Width [ w ] 16.96 mm Height [ h ] 3.9 mm Pitch 2.5 mm Height (without solder pin) 3.9 mm Packaging information Type of packaging packed in cardboard Pieces per package 100 Denomination packing units Pcs. Ambient conditions Ambient temperature (storage/transport) -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (operation) -40 °C ... 105 °C (dependent on the derating curve) Termination and connection method Mechanical tests according to standard Test specification IEC 61984 Visual inspection IEC 60512-1-1:2002-02 Dimension check IEC 60512-1-2:2002-02 Resistance of inscriptions IEC 60068-2-70:1995-12 Insertion and withdrawal force IEC 60512-13-2:2006-02 No. of cycles 25 Insertion strength per pos. approx. 3N Withdraw strength per pos. approx. 2N Polarization and coding IEC 60512-13-5:2006-02 Contact holder in insert IEC 60512-15-1:2008-05 Test force per pos. 20 N Air clearances and creepage distances 05/19/2021   Page 3 / 10 https://www.phoenixcontact.com/us/products/1015459 Printed-circuit board connector - PTCM 0,5/ 7-PL-2,5 WH - 1015459 Technical data Air clearances and creepage distances Clearances and creepage distances IEC 60664-1:2007-04 Specification IEC 60664-1:2007-04 Minimum clearance - inhomogeneous field (III/3) 1.5 mm Minimum clearance - inhomogeneous field (III/2) 1.5 mm Minimum clearance - inhomogeneous field (II/2) 1.5 mm Minimum creepage distance value (III/3) 2 mm Minimum creepage distance value (III/2) 1.5 mm Minimum creepage distance value (II/2) 1.6 mm Current carrying capacity / derating curves Caption Type: PTCM 0,5/...-PL-2,5 WH with PTSM 0,5/...-HH-2,5-THR WH R... Mechanical tests (A) Test specification IEC 61984 Insertion strength per pos. approx. 3N Withdraw strength per pos. approx. 2N Polarization when inserted requirement >20 N Test passed Contact holder in insert requirements >20 N Test passed Durability tests (B) Specification IEC 60512-9-1:2010-03 Contact resistance R1 2 mΩ Insertion/withdrawal cycles 25 Contact resistance R2 2.1 mΩ Impulse withstand voltage at sea level 2.95 kV Thermal tests (C) Specification IEC 60512-5-1:2002-02 Number of positions 8 Upper limiting temperature requirements
