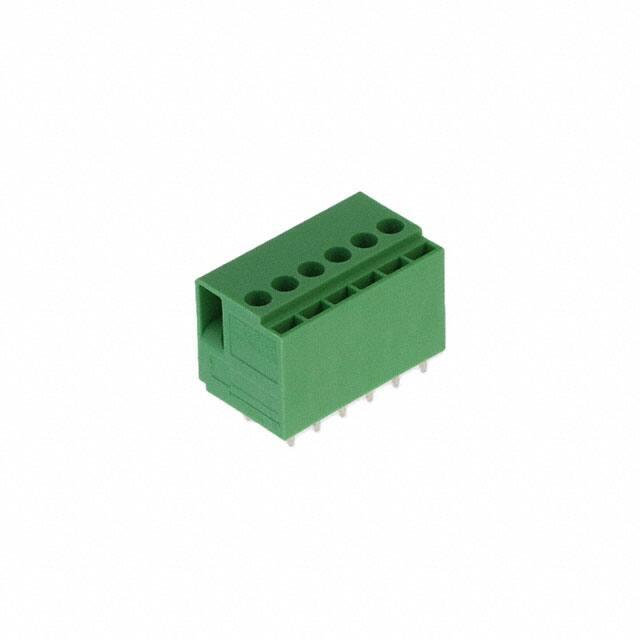

TDPT 2,5/ 6-SC-5,08 - PCB terminal block 1017495 https://www.phoenixcontact.com/us/products/1017495 Please be informed that the data shown in this PDF document is generated from our online catalog. Please find the complete data in the user documentation. Our general terms of use for downloads are valid. PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm2, number of potentials: 6, number of rows: 1, number of positions per row: 6, product range: TDPT 2,5/..-SC, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard Your advantages • Easy to adapt, thanks to their identical size and the same pinning for Push-in spring connections as for screw connections • Well-known connection principle allows worldwide use • Low temperature rise, thanks to maximum contact force Commercial data Item number 1017495 Packing unit 1 pc Minimum order quantity 50 pc Sales key AA13 Product key AAMFOA GTIN 4055626501307 Weight per piece (including packing) 13.723 g Weight per piece (excluding packing) 12.686 g Customs tariff number 85369010 Country of origin CN Jan 8, 2024, 9:36 AM Page 1 (10) TDPT 2,5/ 6-SC-5,08 - PCB terminal block 1017495 https://www.phoenixcontact.com/us/products/1017495 Technical data Product properties Product line COMBICON Terminals M Product type Printed circuit board terminal Product family TDPT 2,5/..-SC Number of positions 6 Pitch 5.08 mm Number of connections 6 Number of rows 1 Number of potentials 6 Pin layout Linear pinning Solder pins per potential 2 Electrical properties Nominal current IN 24 A Nominal voltage UN 400 V Degree of pollution 3 Rated voltage (III/3) 320 V Rated surge voltage (III/3) 4 kV Rated voltage (III/2) 400 V Rated surge voltage (III/2) 4 kV Rated voltage (II/2) 630 V Rated surge voltage (II/2) 4 kV Connection data Connection technology Nominal cross section 2.5 mm² Conductor connection Connection method Screw connection with tension sleeve Conductor cross section rigid 0.2 mm² ... 4 mm² Conductor cross section flexible 0.2 mm² ... 4 mm² Conductor cross section AWG 24 ... 12 Conductor cross section flexible, with ferrule without plastic sleeve 0.2 mm² ... 2.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve 0.2 mm² ... 2.5 mm² 2 conductors with same cross section, solid 0.2 mm² ... 1.5 mm² 2 conductors with same cross section, flexible 0.2 mm² ... 1.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve 0.5 mm² ... 0.75 mm² Stripping length 10 mm Tightening torque 0.5 Nm ... 0.6 Nm Jan 8, 2024, 9:36 AM Page 2 (10) TDPT 2,5/ 6-SC-5,08 - PCB terminal block 1017495 https://www.phoenixcontact.com/us/products/1017495 Mounting Mounting type Wave soldering Pin layout Linear pinning Drive form screw head Slotted (L) Connection method Screw connection with tension sleeve Drive form screw head Slotted (L) Material specifications Material data - contact Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material Cu alloy Surface characteristics hot-dip tin-plated Metal surface terminal point (top layer) Tin (4 - 8 µm Sn) Metal surface soldering area (top layer) Tin (4 - 8 µm Sn) Material data - housing Color (Housing) green (6021) Insulating material PA Insulating material group I CTI according to IEC 60112 600 Flammability rating according to UL 94 V0 Glow wire flammability index GWFI according to EN 60695-2-12 850 Glow wire ignition temperature GWIT according to EN 60695-213 775 Temperature for the ball pressure test according to EN 6069510-2 125 °C Dimensions Dimensional drawing Pitch 5.08 mm Width [w] 31.28 mm Height [h] 22.5 mm Length [l] 18 mm Installed height 19 mm Solder pin length [P] 3.5 mm Pin dimensions 0.9 x 0.9 mm PCB design Pin spacing 8.7 mm Hole diameter 1.4 mm Mechanical tests Test for conductor damage and slackening Jan 8, 2024, 9:36 AM Page 3 (10) TDPT 2,5/ 6-SC-5,08 - PCB terminal block 1017495 https://www.phoenixcontact.com/us/products/1017495 Specification IEC 60999-1:1999-11 Result Test passed Pull-out test Specification IEC 60999-1:1999-11 Conductor cross section/conductor type/tractive force setpoint/actual value 0.2 mm² / solid / > 10 N 0.2 mm² / flexible / > 10 N 4 mm² / solid / > 60 N 4 mm² / flexible / > 60 N Electrical tests Temperature-rise test Specification IEC 60947-7-4:2013-08 Requirement temperature-rise test The sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature. Short-time withstand current Specification IEC 60947-7-4:2013-08 Insulation resistance Specification IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions > 5 MΩ Air clearances and creepage distances | Specification IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09 Insulating material group I Comparative tracking index (IEC 60112) CTI 600 Rated insulation voltage (III/3) 320 V Rated surge voltage (III/3) 4 kV minimum clearance value - non-homogenous field (III/3) 3 mm minimum creepage distance (III/3) 4 mm Rated insulation voltage (III/2) 400 V Rated surge voltage (III/2) 4 kV minimum clearance value - non-homogenous field (III/2) 3 mm minimum creepage distance (III/2) 3 mm Rated insulation voltage (II/2) 630 V Rated surge voltage (II/2) 4 kV minimum clearance value - non-homogenous field (II/2) 3 mm minimum creepage distance (II/2) 3.2 mm Environmental and real-life conditions Vibration test Specification IEC 60068-2-6:2007-12 Frequency 10 - 150 - 10 Hz Sweep speed 1 octave/min Jan 8, 2024, 9:36 AM Page 4 (10) TDPT 2,5/ 6-SC-5,08 - PCB terminal block 1017495 https://www.phoenixcontact.com/us/products/1017495 Amplitude 0.35 mm (10 Hz ... 60.1 Hz) Sweep speed 50 m/s² (60.1 Hz ... 150 Hz) Test duration per axis 2.5 h Glow-wire test Specification IEC 60695-2-10:2013-04 Temperature 850 °C Time of exposure 5s Aging Specification IEC 60947-7-4:2019-01 Ambient conditions Ambient temperature (operation) -40 °C ... 105 °C (Depending on the current carrying capacity/derating curve) Ambient temperature (storage/transport) -40 °C ... 70 °C Relative humidity (storage/transport) 30 % ... 70 % Ambient temperature (assembly) -5 °C ... 105 °C Packaging specifications Type of packaging packed in cardboard Jan 8, 2024, 9:36 AM Page 5 (10) TDPT 2,5/ 6-SC-5,08 - PCB terminal block 1017495 https://www.phoenixcontact.com/us/products/1017495 Drawings I [A] Diagram 60 55 50 45 40 35 30 25 20 15 10 5 0 2  = 4,0 mm2  = 2,5 mm2  = 1,5 mm    0 10 20 30 40 50 60 70 80 90 100 110  [°C] Type: TDPT 2,5/...-SC-5,08 Jan 8, 2024, 9:36 AM Page 6 (10) TDPT 2,5/ 6-SC-5,08 - PCB terminal block 1017495 https://www.phoenixcontact.com/us/products/1017495 Approvals To download certificates, visit the product detail page: https://www.phoenixcontact.com/us/products/1017495  cULus Recognized Approval ID: E60425-20180122 Nominal voltage UN Nominal current IN Cross section AWG Cross section mm2 300 V 20 A 24 - 12 - 150 V 20 A 24 - 12 - 300 V 10 A 24 - 12 - Nominal voltage UN Nominal current IN Cross section AWG Cross section mm2 400 V 32 A - 0.2 - 4 Use group B Use group C Use group D  VDE Zeichengenehmigung Approval ID: 40049168 Jan 8, 2024, 9:36 AM Page 7 (10) TDPT 2,5/ 6-SC-5,08 - PCB terminal block 1017495 https://www.phoenixcontact.com/us/products/1017495 Classifications ECLASS ECLASS-11.0 27460101 ECLASS-12.0 27460101 ECLASS-13.0 27460101 ETIM ETIM 9.0 EC002643 UNSPSC UNSPSC 21.0 39121400 Jan 8, 2024, 9:36 AM Page 8 (10) TDPT 2,5/ 6-SC-5,08 - PCB terminal block 1017495 https://www.phoenixcontact.com/us/products/1017495 Environmental product compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Jan 8, 2024, 9:36 AM Page 9 (10) TDPT 2,5/ 6-SC-5,08 - PCB terminal block 1017495 https://www.phoenixcontact.com/us/products/1017495 Accessories SZF 1-0,6X3,5 - Screwdriver 1204517 https://www.phoenixcontact.com/us/products/1204517 Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip Phoenix Contact 2024 © - all rights reserved https://www.phoenixcontact.com Phoenix Contact USA 586 Fulling Mill Road Middletown, PA 17057, United States (+717) 944-1300 info@phoenixcon.com Jan 8, 2024, 9:36 AM Page 10 (10)
