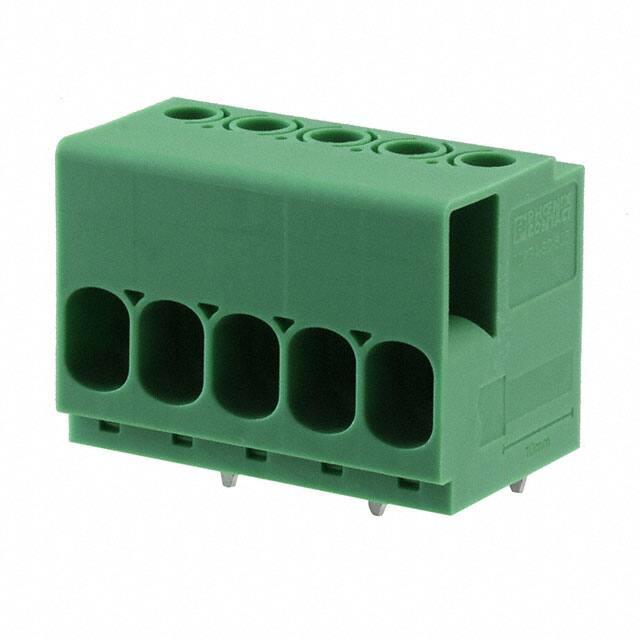

2018-04-23 Product version 00 Data sheet Document revision 00 Order No.: 1017517 Type: TDPT 4/ 5-SC-6,35-ZB Main features      No. of pos. Conductor cross section Color Pitch Connection method 5 4 mm² green 6.35 mm Screw connection with tension sleeve     Nominal current Nominal voltage Connection direction Type of packaging 41 A 1000 V 0° packed in cardboard   1   PCB terminal block, Screw connection with tension sleeve   Your advantages Easy to adapt, thanks to their identical size and the same pinning for Push-in spring connections as for screw connections Well-known connection principle allows worldwide use Low temperature rise, thanks to maximum contact force Make sure you always use the latest documentation. It can be downloaded at: phoenixcontact.net/product/1017517 © PHOENIX CONTACT 2018 2 2018-04-23 Product version 00 Document revision 00 Table of contents 1 Main features........................................................................................................................... 1 2 Your advantages ..................................................................................................................... 1 3 Table of contents ..................................................................................................................... 2 4 3D model in PDF can be activated (Acrobat Reader only)....................................................... 3 5 item properties......................................................................................................................... 4 5.1 Connection capacity ............................................................................................................. 4 5.2 Material data ...................................................................................................................... 4 6 Dimensions.............................................................................................................................. 4 6.1 Dimensions for the product .................................................................................................... 4 6.2 Dimensions for PCB design .................................................................................................... 5 7 Series drawing......................................................................................................................... 6 8 Packaging information ............................................................................................................. 7 9 Application............................................................................................................................... 7 9.1 Temperature limit values ....................................................................................................... 7 9.2 Termination and connection method ......................................................................................... 7 9.3 Pull-out test ........................................................................................................................ 7 10 Electrical tests ......................................................................................................................... 8 10.1 Electrical data ..................................................................................................................... 8 10.2 Short-time withstand current test ............................................................................................. 8 10.3 Aging test (climatic impact and corrosion testing)......................................................................... 8 10.4 Insulation resistance ............................................................................................................. 8 10.5 Mechanical connection test for the PCB terminal block ................................................................. 8 10.6 Temperature-rise test ........................................................................................................... 8 11 Current carrying capacity/derating curves ............................................................................... 9 12 Environmental and durability tests ......................................................................................... 10 12.1 Assessment of fire risk (glow wire test) .................................................................................... 10 12.2 Vibration test .................................................................................................................... 10 13 Approvals .............................................................................................................................. 10 14 Commercial Data................................................................................................................... 11 15 Accessories ........................................................................................................................... 11 © PHOENIX CONTACT 2018     3   1017517 TDPT 4/ 5-SC-6,35-ZB REF 1017514 PHOENIX CONTACT 2 / 11 2018-04-23 Product version 00 1017517 TDPT 4/ 5-SC-6,35-ZB 3D model in PDF can be activated (Acrobat Reader only) © PHOENIX CONTACT 2018       4 Document revision 00 REF 1017514 PHOENIX CONTACT 3 / 11 2018-04-23 Product version 00 1017517 TDPT 4/ 5-SC-6,35-ZB 5 Document revision 00 item properties Order No. 1017517 Type TDPT 4/ 5-SC-6,35-ZB Range of articles TDPT 4/..-SC Pitch 6.35 mm Number of positions 5 Connection method Screw connection with tension sleeve Drive form screw head Slotted (L) Screw thread M3 Tightening torque 0.6 Nm   ...   0.8 Nm Mounting type Wave soldering 5.1 Connection capacity Conductor cross section, solid 0.2 mm² to 6 mm² Conductor cross section, flexible 0.2 mm² to 6 mm² Conductor cross section AWG/kcmil 24 to 10 2 conductors with same cross section, solid 0.2 mm² to 1.5 mm² 2 conductors with same cross section, stranded 0.2 mm² to 1.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve 0.2 mm² to 4 mm² Conductor cross section flexible, with ferrule with plastic sleeve 0.2 mm² to 4 mm² Stripping length 10 mm 5.2 Material data   Material of metal parts Note WEEE/RoHS-compliant, whisker-free acc. to IEC 60068-2-82/JEDEC JESD 201 Contact material Cu alloy Surface characteristics hot-dip tin-plated CTI according to IEC 60112 600 Flammability rating according to UL 94 V0 Color green (6021) Glow wire flammability index GWFI according to EN 60695-2-12 850 Glow wire ignition temperature GWIT according to EN 60695-2-13 775 Temperature for the ball pressure test according to EN 60695-10-2 125 °C 6 Dimensions 6.1 Dimensions for the product Length 20.75 mm Width 32.55 mm Height (without solder pin) 23.4 mm Total height 26.9 mm Solder pin [P] 3.5 mm Dimension a 25.4 mm REF 1017514   Housing   Housing PA © PHOENIX CONTACT 2018 Insulating material data Insulating material PHOENIX CONTACT 4 / 11 2018-04-23 Product version 00 1017517 TDPT 4/ 5-SC-6,35-ZB 6.2 Document revision 00 Dimensions for PCB design 1.7 mm © PHOENIX CONTACT 2018       Hole diameter REF 1017514 PHOENIX CONTACT 5 / 11 2018-04-23 Product version 00 1017517 TDPT 4/ 5-SC-6,35-ZB Series drawing © PHOENIX CONTACT 2018       7 Document revision 00 REF 1017514 PHOENIX CONTACT 6 / 11 2018-04-23 Product version 00 1017517 TDPT 4/ 5-SC-6,35-ZB 8 Document revision 00 Packaging information Type of packaging packed in cardboard Pieces per package 50 9 Application 9.1 Temperature limit values Ambient temperature (storage/transport) -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (operation) -40 °C (dependent on the derating curve) 9.2 Termination and connection method Specification IEC 60999-1:1999-11 Check for damage to conductor or loosening Test passed 9.3 Pull-out test Specification IEC 60999-1:1999-11 Result Test passed Conductor cross section/conductor type/tractive force actual value 0.2 mm² / stranded / > 10 N Conductor cross section/conductor type/tractive force actual value 0.2 mm² / solid / > 10 N Conductor cross section/conductor type/tractive force actual value 6 mm² / stranded / > 80 N 6 mm² / solid / > 80 N Conductor cross section/conductor type/tractive force actual value 4 mm² / stranded with ferrule / > 60 N © PHOENIX CONTACT 2018     Conductor cross section/conductor type/tractive force actual value   Termination and connection method: pull-out test REF 1017514 PHOENIX CONTACT 7 / 11 2018-04-23 Product version 00 1017517 TDPT 4/ 5-SC-6,35-ZB 10 Electrical tests 10.1 Electrical data Rated current / conductor cross section Document revision 00 41 A / 4 mm² Rated insulation voltage (III/2) 1000 V Rated surge voltage (III/2) 8 kV Contact resistance 0.39 mΩ Degree of pollution 2 Short-time withstand current test Specification IEC 60947-7-4:2013-08 Result Test passed Conductor cross section/short-time current 6 mm² / 130 A AC 10.3 Aging test (climatic impact and corrosion testing) Specification IEC 60947-7-4:2013-08 Result Test passed Contact resistance R1 0.39 mΩ / 6 mm² Test sequence 1: low temperature storage -40 °C / 2 h Test sequence 2: heat storage 168 h/105 °C Test sequence 3: noxious gas storage (ISO 6988) KFW 0.2 S/1 cycle Contact resistance R2 0.42 mΩ / 6 mm² Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 9.8 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 4.2 kV Insulation resistance   10.4   10.2 IEC 60512-3-1:2002-02 Result Test passed   Specification Mechanical connection test for the PCB terminal block Specification IEC 60947-7-4:2013-08 Result Test passed 10.6 Temperature-rise test Specification IEC 60947-7-4:2013-08 Result Test passed REF 1017514 © PHOENIX CONTACT 2018 10.5 PHOENIX CONTACT 8 / 11 2018-04-23 Product version 00 1017517 TDPT 4/ 5-SC-6,35-ZB 11 Document revision 00 Current carrying capacity/derating curves Specification IEC 60512-5-2:2002-02 Reduction factor 1 Number of positions 4 Current strength [A] Type: TDPT 4/...-SC-6,35-ZB 70 60 50 40 30 20 10 0 = 6 mm² 0 10 20 30 40 50 60 70 80 90 100 110 © PHOENIX CONTACT 2018       Ambient temperature [°C] REF 1017514 PHOENIX CONTACT 9 / 11 2018-04-23 Product version 00 1017517 TDPT 4/ 5-SC-6,35-ZB 12 Environmental and durability tests 12.1 Assessment of fire risk (glow wire test) Document revision 00 Specification IEC 60695-2-10:2013-04 Result Test passed Temperature 850 °C Time of exposure 5s 12.2 Vibration test Specification IEC 60068-2-6:2007-12 Result Test passed Frequency 10 - 150 - 10 Hz Sweep speed 1 octave/min Amplitude 0.35 mm (10 - 60.1 Hz) Acceleration 5 g (60.1 - 150 Hz) Test duration per axis 2.5 h Test directions X-, Y- and Z-axis Contact interruption 13 Approvals cULus Recognized  B C D mm²/AWG/kcmil 24-10 24-10 24-10 Voltage 600 V 600 V 300 V Current 30 A 30 A 10 A © PHOENIX CONTACT 2018       Use group REF 1017514 PHOENIX CONTACT 10 / 11 2018-04-23 Product version 00 1017517 TDPT 4/ 5-SC-6,35-ZB 14 Document revision 00 Commercial Data Order No. 1017517 Type TDPT 4/ 5-SC-6,35-ZB Pieces per package 50 Net weight 18.512 g GTIN 4055626501512 Information that applies locally, see link on page 1 Country of origin 15 Information that applies locally, see link on page 1 Accessories Description Order No. Type SZF 1-0,6X3,5 © PHOENIX CONTACT 2018       Actuation tool, for ST terminal blocks, also suitable for use as a bladed 1204517 screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip REF 1017514 PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany phoenixcontact.com PHOENIX CONTACT 11 / 11
