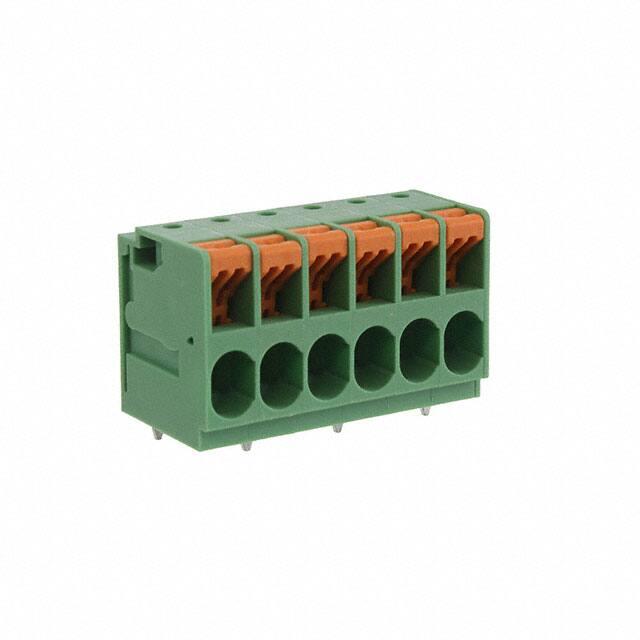

1017525

厂商：
PHOENIX(菲尼克斯)
封装：
插件,P=6.35mm
描述：
接线端子间距：6.35mm 每排针脚数：6 排数：单排

数据手册：

下载1017525.pdf

立即购买

详情介绍
数据手册
价格&库存

1017525 数据手册

2018-04-23 Product version 00 Data sheet Document revision 00 Order No.: 1017525 Type: TDPT 4/ 6-SP-6,35-ZB PCB terminal block, Push-in spring connection Main features      No. of pos. Conductor cross section Color Pitch Connection method 6 4 mm² green 6.35 mm Push-in spring connection     Nominal current Nominal voltage Connection direction Type of packaging 41 A 1000 V 0° packed in cardboard 1 The figure shows a 5-pos. version of the product Easy to adapt, thanks to their identical size and the same pinning for Push-in spring connections as for screw connections Your advantages Time saving push-in connection, tools not required Defined contact force ensures that contact remains stable over the long term Intuitive use through colour coded actuation lever Make sure you always use the latest documentation. It can be downloaded at: phoenixcontact.net/product/1017525 © PHOENIX CONTACT 2018 2 2018-04-23 Product version 00 Document revision 00 Table of contents 1 Main features........................................................................................................................... 1 2 Your advantages ..................................................................................................................... 1 3 Table of contents ..................................................................................................................... 2 4 3D model in PDF can be activated (Acrobat Reader only)....................................................... 3 5 item properties......................................................................................................................... 4 5.1 Connection capacity ............................................................................................................. 4 5.2 Material data ...................................................................................................................... 4 6 Dimensions.............................................................................................................................. 4 6.1 Dimensions for the product .................................................................................................... 4 6.2 Dimensions for PCB design .................................................................................................... 5 7 Series drawing......................................................................................................................... 6 8 Packaging information ............................................................................................................. 7 9 Application............................................................................................................................... 7 9.1 Temperature limit values ....................................................................................................... 7 9.2 Termination and connection method ......................................................................................... 7 9.3 Pull-out test ........................................................................................................................ 7 10 Electrical tests ......................................................................................................................... 8 10.1 Electrical data ..................................................................................................................... 8 10.2 Short-time withstand current test ............................................................................................. 8 10.3 Aging test (climatic impact and corrosion testing)......................................................................... 8 10.4 Insulation resistance ............................................................................................................. 8 10.5 Mechanical connection test for the PCB terminal block ................................................................. 8 10.6 Temperature-rise test ........................................................................................................... 8 11 Current carrying capacity/derating curves ............................................................................... 9 12 Environmental and durability tests ......................................................................................... 10 12.1 Assessment of fire risk (glow wire test) .................................................................................... 10 12.2 Vibration test .................................................................................................................... 10 13 Approvals .............................................................................................................................. 10 14 Commercial Data................................................................................................................... 11 15 Accessories ........................................................................................................................... 11 © PHOENIX CONTACT 2018 3 1017525 TDPT 4/ 6-SP-6,35-ZB REF 1017521 PHOENIX CONTACT 2 / 11 2018-04-23 Product version 00 1017525 TDPT 4/ 6-SP-6,35-ZB 3D model in PDF can be activated (Acrobat Reader only) © PHOENIX CONTACT 2018 4 Document revision 00 REF 1017521 PHOENIX CONTACT 3 / 11 2018-04-23 Product version 00 1017525 TDPT 4/ 6-SP-6,35-ZB 5 Document revision 00 item properties Order No. 1017525 Type TDPT 4/ 6-SP-6,35-ZB Range of articles TDPT 4/..-SP Pitch 6.35 mm Number of positions 6 Connection method Push-in spring connection Mounting type Wave soldering Pin layout Zigzag pinning W 5.1 Connection capacity Conductor cross section, solid 0.2 mm² to 6 mm² Conductor cross section, flexible 0.2 mm² to 6 mm² Conductor cross section AWG/kcmil 24 to 10 Conductor cross section flexible, with ferrule without plastic sleeve 0.2 mm² to 4 mm² Conductor cross section flexible, with ferrule with plastic sleeve 0.2 mm² to 4 mm² 2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve 0.5 mm² to 1.5 mm² Stripping length 10 mm 5.2 Material data Material of metal parts WEEE/RoHS-compliant, whisker-free acc. to IEC 60068-2-82/JEDEC JESD 201 Contact material Cu alloy Surface characteristics hot-dip tin-plated Note Housing Actuation element PA PA 600 V0 Color green (6021) Glow wire flammability index GWFI according to EN 60695-2-12 850 Glow wire ignition temperature GWIT according to EN 60695-2-13 775 Temperature for the ball pressure test according to EN 60695-10-2 125 °C 6 Dimensions 6.1 Dimensions for the product Length 20.75 mm Width 38.9 mm Height (without solder pin) 23.4 mm Total height 26.9 mm Solder pin [P] 3.5 mm Dimension a 31.75 mm REF 1017521 600 V0 © PHOENIX CONTACT 2018 CTI according to IEC 60112 Flammability rating according to UL 94 Insulating material data Insulating material PHOENIX CONTACT 4 / 11 2018-04-23 Product version 00 1017525 TDPT 4/ 6-SP-6,35-ZB 6.2 Document revision 00 Dimensions for PCB design 1.7 mm © PHOENIX CONTACT 2018 Hole diameter REF 1017521 PHOENIX CONTACT 5 / 11 2018-04-23 Product version 00 1017525 TDPT 4/ 6-SP-6,35-ZB Series drawing © PHOENIX CONTACT 2018 7 Document revision 00 REF 1017521 PHOENIX CONTACT 6 / 11 2018-04-23 Product version 00 1017525 TDPT 4/ 6-SP-6,35-ZB 8 Document revision 00 Packaging information Type of packaging packed in cardboard Pieces per package 50 9 Application 9.1 Temperature limit values Ambient temperature (storage/transport) -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 105 °C Ambient temperature (operation) -40 °C (dependent on the derating curve) 9.2 Termination and connection method Specification IEC 60999-1:1999-11 Check for damage to conductor or loosening Test passed 9.3 Pull-out test Specification IEC 60999-1:1999-11 Result Test passed Conductor cross section/conductor type/tractive force actual value 0.2 mm² / solid / > 10 N Conductor cross section/conductor type/tractive force actual value 0.2 mm² / stranded / > 10 N 6 mm² / solid / > 80 N Conductor cross section/conductor type/tractive force actual value 6 mm² / stranded / > 80 N © PHOENIX CONTACT 2018 Conductor cross section/conductor type/tractive force actual value Termination and connection method: pull-out test REF 1017521 PHOENIX CONTACT 7 / 11 2018-04-23 Product version 00 1017525 TDPT 4/ 6-SP-6,35-ZB 10 Electrical tests 10.1 Electrical data Rated current / conductor cross section Document revision 00 41 A / 4 mm² Rated insulation voltage (III/2) 1000 V Rated surge voltage (III/2) 8 kV Contact resistance 0.85 mΩ Degree of pollution 2 Short-time withstand current test Specification IEC 60947-7-4:2013-08 Result Test passed Conductor cross section/short-time current 6 mm² / 124.8 A 10.3 Aging test (climatic impact and corrosion testing) Specification IEC 60947-7-4:2013-08 Result Test passed Contact resistance R1 0.85 mΩ / 6 mm² Test sequence 1: low temperature storage -40 °C / 2 h Test sequence 2: heat storage 168 h/105 °C Test sequence 3: noxious gas storage (ISO 6988) KFW 0.2 S/1 cycle Contact resistance R2 0.32 mΩ / 6 mm² Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 9.8 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 4.2 kV Insulation resistance 10.4 10.2 IEC 60512-3-1:2002-02 Result Test passed Specification Mechanical connection test for the PCB terminal block Specification IEC 60947-7-4:2013-08 Result Test passed 10.6 Temperature-rise test Specification IEC 60947-7-4:2013-08 Result Test passed REF 1017521 © PHOENIX CONTACT 2018 10.5 PHOENIX CONTACT 8 / 11 2018-04-23 Product version 00 1017525 TDPT 4/ 6-SP-6,35-ZB 11 Document revision 00 Current carrying capacity/derating curves Specification IEC 60512-5-2:2002-02 Reduction factor 1 Number of positions 4 Current strength [A] Type: TDPT 4/...-SP-6,35-ZB 70 60 50 40 30 20 10 0 = 6 mm² solid 0 10 20 30 40 50 60 70 80 90 100 110 © PHOENIX CONTACT 2018 Ambient temperature [°C] REF 1017521 PHOENIX CONTACT 9 / 11 2018-04-23 Product version 00 1017525 TDPT 4/ 6-SP-6,35-ZB 12 Environmental and durability tests 12.1 Assessment of fire risk (glow wire test) Document revision 00 Specification IEC 60695-2-10:2013-04 Result Test passed Temperature 850 °C Time of exposure 5s 12.2 Vibration test Specification IEC 60068-2-6:2007-12 Result Test passed Frequency 10 - 150 - 10 Hz Sweep speed 1 octave/min Amplitude 0.35 mm (10 - 60.1 Hz) Acceleration 5 g (60.1 - 150 Hz) Test duration per axis 2.5 h Test directions X-, Y- and Z-axis Contact interruption Shock Specification IEC 60068-2-27:2008-02 Result Test passed Pulse shape Semi-sinusoidal Specification Peak acceleration 30g Shock duration 18 ms Number of shocks per direction 3 Test directions X-, Y- and Z-axis (pos. and neg.) Contact interruption Specification WN-CS 21-1:2010-09 Result Test passed Testing Inspection for substances that impair surface wetting according to VW/AUDI test specification 3.10.7 February 2005 13 Test for materials that impair paint application Approvals Use group B C D mm²/AWG/kcmil 24-10 24-10 24-10 Voltage 600 V 600 V 300 V Current 30 A 30 A 10 A © PHOENIX CONTACT 2018 cULus Recognized  cULus Recognized  Use group B C D mm²/AWG/kcmil 24-10 24-10 24-10 Voltage 600 V 600 V 300 V Current 30 A 30 A 10 A REF 1017521 PHOENIX CONTACT 10 / 11 2018-04-23 Product version 00 1017525 TDPT 4/ 6-SP-6,35-ZB 14 Document revision 00 Commercial Data Order No. 1017525 Type TDPT 4/ 6-SP-6,35-ZB Pieces per package 50 Net weight 12.696 g GTIN 4055626501574 Information that applies locally, see link on page 1 Country of origin 15 Information that applies locally, see link on page 1 Accessories Description Order No. Type SZF 3-1,0X5,5 © PHOENIX CONTACT 2018 Actuation tool, for ST terminal blocks, also suitable for use as a bladed 1206612 screwdriver, size: 1.0 x 5.5 x 150 mm, 2-component grip, with non-slip grip REF 1017521 PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany phoenixcontact.com PHOENIX CONTACT 11 / 11

下载 PDF

1017525

物料型号为TDPT 4/6-SP-6,35-ZB，是一种凤凰接触（PHOENIX CONTACT）品牌的PCB接线端子。

以下是该产品的详细信息：

1. 器件简介：该产品为PCB接线端子，采用推入式弹簧连接方式，适用于6个位置，具有41A的额定电流和1000V的额定电压。

2. 引脚分配：引脚布局为锯齿状排列（Zigzag pinning W）。

3. 参数特性： - 额定电流：41A - 额定电压：1000V - 导线截面积：0.2 mm²至6 mm² - 连接方式：推入式弹簧连接 - 包装类型：纸板包装 - 颜色：绿色

4. 功能详解：该产品易于适配，因为其尺寸相同，推入式弹簧连接和螺丝连接具有相同的引脚。

推入式连接无需工具，节省时间，定义的接触力确保长期稳定接触，通过颜色编码的操作杆直观易用。

5. 应用信息： - 存储/运输环境温度：-40°C至70°C - 组装环境温度：-5°C至105°C - 操作环境温度：根据降额曲线，最低可达-40°C

6. 封装信息：该产品采用纸板包装，每包50件。

此外，该产品还通过了多种电气测试和环境耐久性测试，包括短时耐受电流测试、老化测试、绝缘电阻测试、机械连接测试和温升测试等。
