1017532

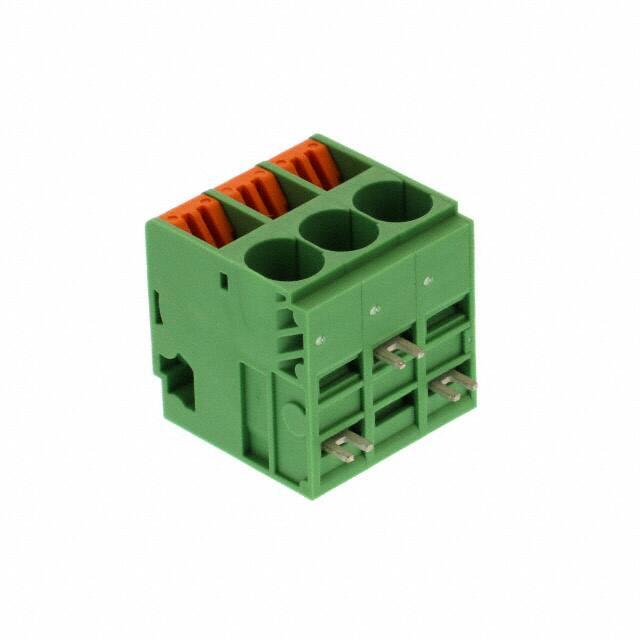

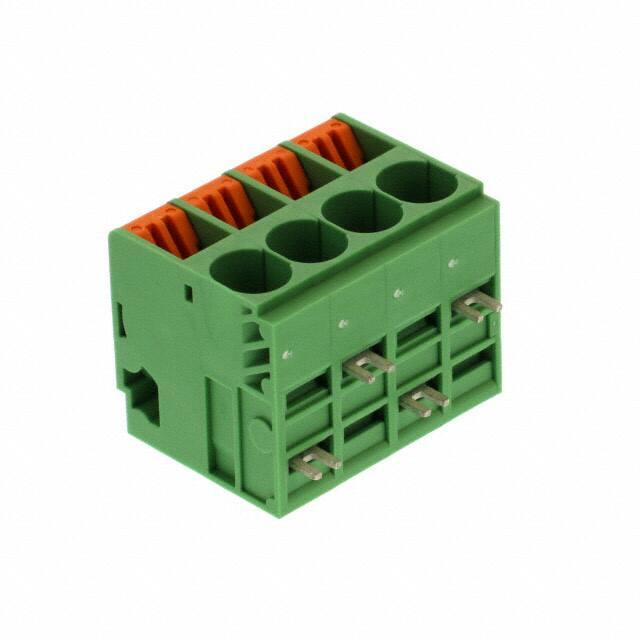

2018-04-23 Product version 00 Data sheet Document revision 00 Order No.: 1017532 Type: TDPT 16/ 3-SP-10,16-ZB PCB terminal block, Wave soldering, Push-in spring connection Main features      No. of pos. Conductor cross section Color Pitch Connection method 3 16 mm² green 10.16 mm Push-in spring connection     Nominal current Nominal voltage Connection direction Type of packaging 76 A 1000 V 0° packed in cardboard   1   The figure shows a 5-pos. version of the product Easy to adapt, thanks to their identical size and the same pinning for Push-in spring connections as for screw connections   Your advantages Time saving push-in connection, tools not required Defined contact force ensures that contact remains stable over the long term Intuitive use through colour coded actuation lever Make sure you always use the latest documentation. It can be downloaded at: phoenixcontact.net/product/1017532 © PHOENIX CONTACT 2018 2 2018-04-23 Product version 00 Main features........................................................................................................................... 1 2 Your advantages ..................................................................................................................... 1 3 Table of contents ..................................................................................................................... 2 4 3D model in PDF can be activated (Acrobat Reader only)....................................................... 3 5 item properties......................................................................................................................... 4 5.1 Connection capacity ............................................................................................................. 4 5.2 Material data ...................................................................................................................... 4 6 Dimensions.............................................................................................................................. 4 6.1 Dimensions for the product .................................................................................................... 4 6.2 Dimensions for PCB design .................................................................................................... 5 7 Series drawing......................................................................................................................... 6 8 Packaging information ............................................................................................................. 7 9 Application............................................................................................................................... 7 9.1 Processing notes ................................................................................................................. 7 9.2 Temperature limit values ....................................................................................................... 7 9.3 Termination and connection method ......................................................................................... 7 9.4 Pull-out test ........................................................................................................................ 7 10 Electrical tests ......................................................................................................................... 8 10.1 Electrical data ..................................................................................................................... 8 10.2 Air clearances and creepage distances ..................................................................................... 8 10.3 Short-time withstand current test ............................................................................................. 8 10.4 Aging test (climatic impact and corrosion testing)......................................................................... 8 10.5 Insulation resistance ............................................................................................................. 8 10.6 Mechanical connection test for the PCB terminal block ................................................................. 9 10.7 Temperature-rise test ........................................................................................................... 9 11 Current carrying capacity/derating curves ............................................................................. 10 12 Environmental and durability tests ......................................................................................... 11 12.1 Assessment of fire risk (glow wire test) .................................................................................... 11 12.2 Vibration test .................................................................................................................... 11 13 Approvals .............................................................................................................................. 11 14 Commercial Data................................................................................................................... 12 15 Accessories ........................................................................................................................... 12 REF 1017531 PHOENIX CONTACT 2 / 12   Table of contents 1   3   Document revision 00 © PHOENIX CONTACT 2018 1017532 TDPT 16/ 3-SP-10,16-ZB 2018-04-23 Product version 00 1017532 TDPT 16/ 3-SP-10,16-ZB 3D model in PDF can be activated (Acrobat Reader only) © PHOENIX CONTACT 2018       4 Document revision 00 REF 1017531 PHOENIX CONTACT 3 / 12 2018-04-23 Product version 00 1017532 TDPT 16/ 3-SP-10,16-ZB 5 Document revision 00 item properties Order No. 1017532 Type TDPT 16/ 3-SP-10,16-ZB Range of articles TDPT 16/..-SP Pitch 10.16 mm Number of positions 3 Connection method Push-in spring connection Mounting type Wave soldering Pin layout Zigzag pinning W 5.1 Connection capacity Conductor cross section, solid 0.75 mm² to 16 mm² Conductor cross section, multi-stranded 0.75 mm² to 16 mm² Conductor cross section, flexible 0.75 mm² to 16 mm² Conductor cross section AWG/kcmil 20 to 6 Conductor cross section flexible, with ferrule without plastic sleeve 0.75 mm² to 16 mm² Conductor cross section flexible, with ferrule with plastic sleeve 0.75 mm² to 16 mm² 2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve 0.75 mm² to 6 mm² Stripping length 18 mm 5.2 Material data Material of metal parts WEEE/RoHS-compliant, whisker-free acc. to IEC 60068-2-82/JEDEC JESD 201 Contact material Cu alloy Terminal point surface Soldering area surface Sn 10 µm ... 16 µm Sn 10 µm ... 16 µm Tin-plated   Surface characteristics   Note Insulating material data Housing Actuation element Insulating material PA PA 600 600 V0 V0 Color green (6021) Glow wire flammability index GWFI according to EN 60695-2-12 850 Glow wire ignition temperature GWIT according to EN 60695-2-13 775 Temperature for the ball pressure test according to EN 60695-10-2 125 °C 6 Dimensions 6.1 Dimensions for the product Length 31.9 mm Width 27.9 mm Height (without solder pin) 31.2 mm REF 1017531 © PHOENIX CONTACT 2018   CTI according to IEC 60112 Flammability rating according to UL 94 PHOENIX CONTACT 4 / 12 2018-04-23 Product version 00 1017532 TDPT 16/ 3-SP-10,16-ZB Document revision 00 Total height 34.7 mm Solder pin [P] 3.5 mm Dimension a 20.32 mm 6.2 Dimensions for PCB design 2 mm Pin dimensions 1,4 x 0,9 mm © PHOENIX CONTACT 2018       Hole diameter REF 1017531 PHOENIX CONTACT 5 / 12 2018-04-23 Product version 00 1017532 TDPT 16/ 3-SP-10,16-ZB Series drawing © PHOENIX CONTACT 2018       7 Document revision 00 REF 1017531 PHOENIX CONTACT 6 / 12 2018-04-23 Product version 00 1017532 TDPT 16/ 3-SP-10,16-ZB 8 Document revision 00 Packaging information Type of packaging packed in cardboard Pieces per package 50 9 Application 9.1 Processing notes Process Wave soldering Specification Following IEC 61760-1:2006-04 Specification Following IEC 60068-2-54:2006-04 9.2 Temperature limit values Ambient temperature (storage/transport) -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 105 °C Ambient temperature (operation) -40 °C (Depending on the current carrying capacity/derating curve) 9.3 Termination and connection method Specification IEC 60999-1:1999-11 Check for damage to conductor or loosening Test passed Pull-out test   9.4 Specification IEC 60999-1:1999-11 Result Test passed Conductor cross section/conductor type/tractive force actual value 0.75 mm² / solid / > 30 N Conductor cross section/conductor type/tractive force actual value 0.75 mm² / stranded / > 30 N 16 mm² / solid / > 100 N Conductor cross section/conductor type/tractive force actual value 16 mm² / stranded / > 100 N © PHOENIX CONTACT 2018   Conductor cross section/conductor type/tractive force actual value   Termination and connection method: pull-out test REF 1017531 PHOENIX CONTACT 7 / 12 2018-04-23 Product version 00 1017532 TDPT 16/ 3-SP-10,16-ZB 10 Electrical tests 10.1 Electrical data Rated current / conductor cross section Document revision 00 76 A / 16 mm² Rated insulation voltage (III/2) 1000 V Rated surge voltage (III/2) 8 kV Contact resistance 0.39 mΩ Degree of pollution 2 10.2 Air clearances and creepage distances Specification IEC 60947-1:2007-06 + A1:2010-12 Mains type unearthed mains Insulating material group I Comparative tracking index (IEC 60112:2003-01) CTI 600 Rated insulation voltage 800 V 1000 V 1000 V Rated surge voltage 8 kV 8 kV 6 kV Degree of pollution 3 2 2 Overvoltage category III III II Minimum clearance case A (inhomogeneous field) 8 mm 8 mm 5.5 mm Minimum value of the creepage path requirement in acc. with table 10 mm 8 mm 5.5 mm Specification IEC 60947-7-4:2013-08 Result Test passed Conductor cross section/short-time current 16 mm² / 302.4 A Specification IEC 60947-7-4:2013-08 Result Test passed Contact resistance R1 0.39 mΩ / 16 mm² Test sequence 1: low temperature storage -40 °C / 2 h Test sequence 2: heat storage 168 h/105 °C Test sequence 3: noxious gas storage (ISO 6988) KFW 0.2 S/1 cycle Contact resistance R2 0.19 mΩ / 16 mm² Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 9.8 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 4.2 kV 10.5   Aging test (climatic impact and corrosion testing)   10.4   Short-time withstand current test © PHOENIX CONTACT 2018 10.3 Insulation resistance Specification IEC 60512-3-1:2002-02 Result Test passed REF 1017531 PHOENIX CONTACT 8 / 12 2018-04-23 Product version 00 1017532 TDPT 16/ 3-SP-10,16-ZB 10.6 Document revision 00 Mechanical connection test for the PCB terminal block Specification IEC 60947-7-4:2013-08 Result Test passed 10.7 Temperature-rise test IEC 60947-7-4:2013-08 Result Test passed © PHOENIX CONTACT 2018       Specification REF 1017531 PHOENIX CONTACT 9 / 12 2018-04-23 Product version 00 1017532 TDPT 16/ 3-SP-10,16-ZB 11 Document revision 00 Current carrying capacity/derating curves Specification IEC 60512-5-2:2002-02 Reduction factor 1 Number of positions 4 Current strength [A] Type: TDPT 16/...-SP-10,16-ZB 110 100 90 80 70 60 50 40 30 20 10 0 = 16 mm² solid 0 10 20 30 40 50 60 70 80 90 100 110 © PHOENIX CONTACT 2018       Ambient temperature [°C] REF 1017531 PHOENIX CONTACT 10 / 12 2018-04-23 Product version 00 1017532 TDPT 16/ 3-SP-10,16-ZB 12 Environmental and durability tests 12.1 Assessment of fire risk (glow wire test) Document revision 00 Specification IEC 60695-2-10:2013-04 Result Test passed Temperature 850 °C Time of exposure 5s 12.2 Vibration test Specification IEC 60068-2-6:2007-12 Result Test passed Frequency 10 - 150 - 10 Hz Sweep speed 1 octave/min Amplitude 0.35 mm (10 - 60.1 Hz) Acceleration 5 g (60.1 - 150 Hz) Test duration per axis 2.5 h Test directions X-, Y- and Z-axis Contact interruption Shock Specification IEC 60068-2-27:2008-02 Result Test passed Pulse shape Semi-sinusoidal   Specification Peak acceleration 30g Shock duration 18 ms Number of shocks per direction 3 Test directions X-, Y- and Z-axis (pos. and neg.)   Contact interruption Specification WN-CS 21-1:2010-09 Result Test passed Testing Inspection for substances that impair surface wetting according to VW/AUDI test specification 3.10.7 February 2005 13   Test for materials that impair paint application Approvals Use group B C D mm²/AWG/kcmil 20-6 20-6 20-6 Voltage 600 V 600 V 300 V Current 58 A 58 A 10 A REF 1017531 © PHOENIX CONTACT 2018 cULus Recognized  PHOENIX CONTACT 11 / 12 2018-04-23 Product version 00 1017532 TDPT 16/ 3-SP-10,16-ZB 14 Document revision 00 Commercial Data Order No. 1017532 Type TDPT 16/ 3-SP-10,16-ZB Pieces per package 50 Net weight 23.21 g GTIN 4055626501642 Information that applies locally, see link on page 1 Country of origin 15 Information that applies locally, see link on page 1 Accessories Description Order No. Type SZS 1,2X8,0 VDE © PHOENIX CONTACT 2018       Screwdriver, slot-headed, VDE insulated, size: 1.2 x 8.0 x 175 mm, 2-com- 1205082 ponent grip, with non-slip grip REF 1017531 PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany phoenixcontact.com PHOENIX CONTACT 12 / 12
