1027616

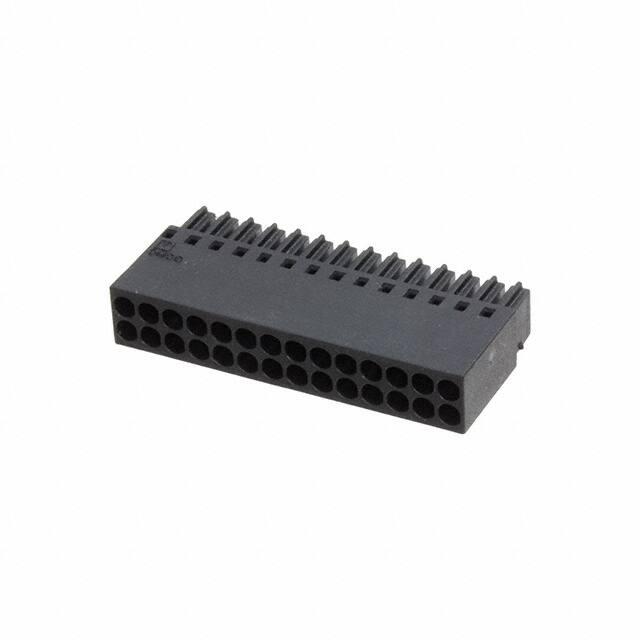

2018-12-14 Product version 00 Data sheet Document revision 00 Order No.: 1027616 Type: DMCC 0,5/14-ST-2,54 PCB connector, Crimp connection Main features      No. of pos. Conductor cross section Color Pitch Connection method 14 0.75 mm² black (9005) 2.54 mm Crimp connection     Nominal current Nominal voltage Connection direction Type of packaging 6A 160 V 0° packed in cardboard   1   The figure shows a 10-pos. version with 20 contacts Your advantages   Cost-effective connection of crimped conductors in large quantities Gold-plated contacts ensure transfer quality remains stable over the long term Contacts arranged in a double row enable high packing density in a compact area Tools for manual and automatic crimping available as an option Make sure you always use the latest documentation. It can be downloaded at: phoenixcontact.net/product/1027616 © PHOENIX CONTACT 2018 2 2018-12-14 Product version 00 Main features........................................................................................................................... 1 2 Your advantages ..................................................................................................................... 1 3 Table of contents ..................................................................................................................... 2 4 3D model in PDF can be activated (Acrobat Reader only)....................................................... 3 5 item properties......................................................................................................................... 4 5.1 Connection capacity ............................................................................................................. 4 5.2 Connection capacity AWG ..................................................................................................... 4 5.3 Material data ...................................................................................................................... 4 6 Dimensions.............................................................................................................................. 5 6.1 Dimensions for the product .................................................................................................... 5 7 Series drawing......................................................................................................................... 6 8 Packaging information ............................................................................................................. 7 9 Application............................................................................................................................... 7 9.1 Temperature limit values ....................................................................................................... 7 10 General tests ........................................................................................................................... 8 10.1 Specification....................................................................................................................... 8 11 Mechanical tests...................................................................................................................... 8 11.1 Tensile strength of crimped connections .................................................................................... 8 11.2 Insulating grip effectiveness (crimped connections) ...................................................................... 8 11.3 Mechanical test group A ........................................................................................................ 8 12 Electrical tests ......................................................................................................................... 9 12.1 Electrical data ..................................................................................................................... 9 12.2 Air and creepage distances .................................................................................................... 9 13 Current carrying capacity/derating curves ............................................................................. 10 14 Environmental and durability tests ......................................................................................... 11 14.1 Vibration test .................................................................................................................... 11 14.2 Railway application, vibration test .......................................................................................... 11 15 Classification for connectors.................................................................................................. 11 16 Approvals .............................................................................................................................. 11 17 Commercial Data................................................................................................................... 12 18 corresponding headers.......................................................................................................... 12 19 Accessories ........................................................................................................................... 12 20 Combination tests.................................................................................................................. 13 REF 1027603 PHOENIX CONTACT 2 / 13   Table of contents 1   3   Document revision 00 © PHOENIX CONTACT 2018 1027616 DMCC 0,5/14-ST-2,54 2018-12-14 Product version 00 1027616 DMCC 0,5/14-ST-2,54 3D model in PDF can be activated (Acrobat Reader only) © PHOENIX CONTACT 2018       4 Document revision 00 REF 1027603 PHOENIX CONTACT 3 / 13 2018-12-14 Product version 00 1027616 DMCC 0,5/14-ST-2,54 5 Document revision 00 item properties Order No. 1027616 Type DMCC 0,5/14-ST-2,54 Plug-in system MICRO COMBICON - DFMC 0,5 Product type PCB connector Type of contact Female connector Range of articles DMCC 0,5/..-ST Pitch 2.54 mm Range of positions 2...16 Number of positions 14 Number of levels 2 Number of connections 28 Number of potentials 28 Connection method Crimp connection Type of locking without without Connection direction of the connector to the PCB Solder pins per potential 1 Type Standard 5.1 Connection capacity 0.14 mm² ... 0.75 mm² (Maximum external diameter of the insulation 1.9 mm) Stripping length 4.1 mm ... 4.5 mm Connection capacity AWG Conductor cross section AWG 5.3 26 ... 18 (Maximum external diameter of the insulation 1.9 mm) Material data   5.2   Conductor cross section, flexible Material of metal parts WEEE/RoHS-compliant, whisker-free acc. to IEC 60068-2-82/JEDEC JESD 201 Contact material Cu alloy Surface characteristics Selective coating Insulating material data Housing Insulating material PA I CTI according to IEC 60112 600 Flammability rating according to UL 94 V0 Color black (9005) Glow wire flammability index GWFI according to EN 60695-2-12 850 Glow wire ignition temperature GWIT according to EN 60695-2-13 775 Temperature for the ball pressure test according to EN 60695-10-2 125 °C REF 1027603 © PHOENIX CONTACT 2018 Insulating material group   Note PHOENIX CONTACT 4 / 13 2018-12-14 Product version 00 1027616 DMCC 0,5/14-ST-2,54 6 Dimensions 6.1 Dimensions for the product Document revision 00 16 mm Width 36.06 mm Total height 6.49 mm Dimension a 33.02 mm © PHOENIX CONTACT 2018       Length REF 1027603 PHOENIX CONTACT 5 / 13 2018-12-14 Product version 00 1027616 DMCC 0,5/14-ST-2,54 Series drawing © PHOENIX CONTACT 2018       7 Document revision 00 REF 1027603 PHOENIX CONTACT 6 / 13 2018-12-14 Product version 00 1027616 DMCC 0,5/14-ST-2,54 8 Document revision 00 Packaging information Type of packaging packed in cardboard Pieces per package 50 9 Application 9.1 Temperature limit values -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (operation) -55 °C (dependent on the derating curve) © PHOENIX CONTACT 2018       Ambient temperature (storage/transport) REF 1027603 PHOENIX CONTACT 7 / 13 2018-12-14 Product version 00 1027616 DMCC 0,5/14-ST-2,54 10 General tests 10.1 Specification Document revision 00 Specification IEC 61984 Specification IEC 60352-2 11 Mechanical tests 11.1 Tensile strength of crimped connections Result Test passed Specification IEC 60512-16-4:2008-06 Conductor cross section/conductor type/tractive force setpoint/actual value 0.14 mm² / flexible / > 18 N 0.75 mm² / flexible / > 85 N Insulating grip effectiveness (crimped connections) Result Test passed Specification IEC 60512-16-8:2008-05 Mechanical test group A Specification IEC 61984:2008-10 Visual examination Test passed Specification IEC 60512-1-1:2002-02 Dimensional test Test passed Specification IEC 60512-1-2:2002-02 Resistance of marking Test passed Specification IEC 60068-2-70:1995-12 Insertion and withdrawal force Test passed IEC 60512-13-2:2006-02 No. of cycles 100 Insertion strength per pos. approx. 2N   Specification   11.3   11.2 Withdraw strength per pos. approx. 2N Polarization and coding Test passed Specification IEC 60512-13-5:2006-02 Test force 20 N Contact retention in insert Test passed IEC 60512-15-1:2008-05 Test force per pos. 20 N © PHOENIX CONTACT 2018 Specification REF 1027603 PHOENIX CONTACT 8 / 13 2018-12-14 Product version 00 1027616 DMCC 0,5/14-ST-2,54 12 Electrical tests 12.1 Electrical data Rated current / conductor cross section Document revision 00 6 A / 0.75 mm² Rated insulation voltage (III/2) 160 V Rated surge voltage (III/2) 2.5 kV Contact resistance Degree of pollution 12.2 2 Air and creepage distances Component PCB connector Specification IEC 60664-1:2007-04 Mains type unearthed mains Insulating material group I Comparative tracking index (IEC 60112:2003-01) CTI 600 Rated insulation voltage 160 V 160 V Rated surge voltage 2.5 kV 2.5 kV 2.5 kV Degree of pollution 3 2 2 Overvoltage category III III II Minimum clearance case A (inhomogeneous field) 1.5 mm 1.5 mm 1.5 mm Minimum value of the creepage path requirement in acc. with table 2 mm 1.5 mm 1.6 mm © PHOENIX CONTACT 2018       320 V REF 1027603 PHOENIX CONTACT 9 / 13 2018-12-14 Product version 00 1027616 DMCC 0,5/14-ST-2,54 13 Document revision 00 Current carrying capacity/derating curves Specification IEC 61984:2008-10 Note Representation based on IEC 60512-5-2:2002-02 Reduction factor 0.8 Number of positions See diagram Conductor cross section 0.75 mm² © PHOENIX CONTACT 2018       Type: DMCC 0.5/...-ST-2.54 with DMC 0.5/...-G1-2.54 P...THR R... REF 1027603 PHOENIX CONTACT 10 / 13 2018-12-14 Product version 00 1027616 DMCC 0,5/14-ST-2,54 14 Environmental and durability tests 14.1 Vibration test Document revision 00 Specification IEC 60068-2-6:2007-12 Result Test passed Frequency 10 - 150 - 10 Hz Sweep speed 1 octave/min Amplitude 0.35 mm (10 - 60.1 Hz) Acceleration 50 m/s2 (60.1 - 150 Hz) Test duration per axis 2h Test directions X-, Y- and Z-axis Note The connected conductor loops were guided to the test sample at a distance of approx. 10 cm. Railway application, vibration test Specification IEC 61373:2010-05 Result Test passed Testing Vibration, broadband noise Frequency 5 - 150 Hz Test directions X-, Y- and Z-axis (pos. and neg.) Spectrum Service life test category 1, class B, body mounted Classification for connectors Specification IEC 61984:2008-10 Main features Connectors without switching capacity (COC) Construction form Fixed connectors   15 Strain relief elements without strain relief Connection method Cannot be reconnected Protection against electric shock not encapsulated - back of hand safety when plugged in Protective conductor without PE no Connection method Crimp connections   Lock   14.2 Approvals © PHOENIX CONTACT 2018 16 REF 1027603 PHOENIX CONTACT 11 / 13 2018-12-14 Product version 00 1027616 DMCC 0,5/14-ST-2,54 17 Document revision 00 Commercial Data Order No. 1027616 Type DMCC 0,5/14-ST-2,54 Pieces per package 50 Net weight 2.29 g GTIN 4055626522760 Information that applies locally, see link on page 1 Country of origin 18 Information that applies locally, see link on page 1 corresponding headers Order No. Type 1844840 DMC 0,5/14-G1-2,54 P20THR R72 1845140 DMC 0,5/14-G1-2,54 SMD R72 1844992 DMCV 0,5/14-G1-2,54 P20THR R72 1845292 DMCV 0,5/14-G1-2,54 SMD R72 19 Accessories Description Type 1013425 MCC 0,5-MP AU 0,14-0,5 1013420 MCC 0,5-MP AU 0,14-0,5 R 1013419 MCC 0,5-MP AU 0,34-0,75 1013418 MCC 0,5-MP AU 0,34-0,75 R 1064998 CRIMPFOX-P CC 0.75 L © PHOENIX CONTACT 2018       Crimping pliers, for COMBICON crimp connectors with cross section: 0.14 ... 0.75 mm². Unlockable pressure lock, precise parallel crimping, front entry, B crimp, incl. 2 positioning aids Order No. REF 1027603 PHOENIX CONTACT 12 / 13 2018-12-14 Product version 00 1027616 DMCC 0,5/14-ST-2,54 20 Document revision 00 Combination tests DMCC 0,5/..-ST DMC 0,5/..-G1THR IEC 61984 IEC 61984 Mechanical tests (A) Insertion/withdrawal force per position approx. 2 N / 2 N Polarization when inserted Requirement >20 N Test passed Contact holder in insert Requirements >20 N Test passed Durability tests (B) Contact resistance R1 1st level 2.2 mΩ Contact resistance R1 2nd level 2.4 mΩ Insertion/withdrawal cycles 100 Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 2.95 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 1.39 kV   Thermal tests (C) 16 Tested conductor cross section 0.75 mm² Test current 6A Upper limiting temperature Requirements < 100°C Test passed   Tested number of positions Test sequence 1: low temperature storage -55 °C/2 h Test sequence 2: heat storage 105 °C/168 h Test sequence 3: noxious gas storage (ISO 6988) 1.0 dm3 SO2 on 300 dm3/ 40 °C/1 cycle Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 2.95 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 1.39 kV   Climatic tests (D) Specification IEC 61984:2008-10 Degree of protection Back of hand safety with IP10 access probe REF 1027603 PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany phoenixcontact.com © PHOENIX CONTACT 2018 Environmental and endurance tests (E) PHOENIX CONTACT 13 / 13
