1071199

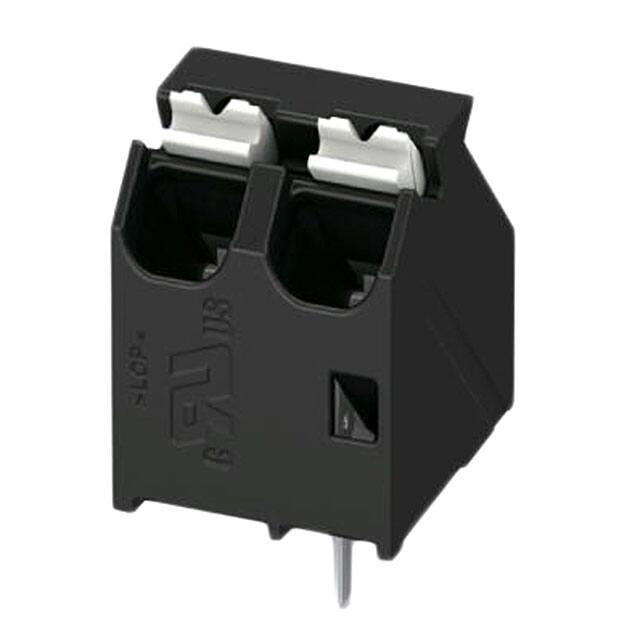

https://www.phoenixcontact.com/pi/products/1071199 PCB terminal block - SPTA-THR 1,5/ 2-5,08 R32 - 1071199 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 320 V, nominal cross section: 1.5 mm², pitch: 5.08 mm, number of positions: 2, connection method: Push-in spring connection, mounting: THR soldering, conductor/PCB connection direction: 45 °, color: black, Solder pin [P]: 2.6 mm The figure shows the 2-position version Your advantages  Time saving push-in connection, tools not required  Defined contact force ensures that contact remains stable over the long term  Intuitive use through colour coded actuation lever  Angled connection enables multi-row arrangement on the PCB  Designed for integration into the SMT soldering process Key Commercial Data Packing unit 145 pc Minimum order quantity 145 pc GTIN GTIN 4055626771137 Technical data Item properties Brief article description PCB terminal block Range of articles SPTA 1,5/..-THR Pitch 5.08 mm Number of positions 2 Connection method Push-in spring connection Mounting type THR soldering Number of levels 1 Electrical parameters Nominal current 13.5 A 09/12/2020   Page 1 / 6 https://www.phoenixcontact.com/pi/products/1071199 PCB terminal block - SPTA-THR 1,5/ 2-5,08 R32 - 1071199 Technical data Electrical parameters Nom. voltage 320 V Rated voltage 250 V Rated voltage (III/2) 320 V Rated voltage (II/2) 400 V Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Connection capacity Connection method Push-in spring connection pluggable no Conductor cross section solid 0.2 mm² ... 1.5 mm² (Conductor connection with open terminal point) 0.34 mm² ... 1.5 mm² (Push-in connection) Conductor cross section flexible 0.5 mm² ... 1.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve 0.25 mm² ... 1.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve 0.25 mm² ... 1.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve 0.5 mm² ... 0.75 mm² Stripping length 10 mm Material data - contact Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/ JEDEC JESD 201 Contact material Cu alloy Surface characteristics hot-dip tin-plated Metal surface terminal point (top layer) Tin (2 - 4 µm Sn) Metal surface soldering area (top layer) Tin (2 - 4 µm Sn) Material data - housing Housing color black (9005) Insulating material LCP GF Insulating material group III CTI according to IEC 60112 175 Flammability rating according to UL 94 V0 Glow wire flammability index GWFI according to EN 60695-2-12 850 Glow wire ignition temperature GWIT according to EN 60695-2-13 775 Temperature for the ball pressure test according to EN 60695-10-2 125 °C Dimensions for the product Length [ l ] 11.6 mm Width [ w ] 9.68 mm Height [ h ] 15.07 mm Pitch 5.08 mm Height (without solder pin) 12.47 mm 09/12/2020   Page 2 / 6 https://www.phoenixcontact.com/pi/products/1071199 PCB terminal block - SPTA-THR 1,5/ 2-5,08 R32 - 1071199 Technical data Dimensions for the product Solder pin [P] 2.6 mm Dimensions for PCB design Hole diameter 1.1 mm Packaging information Type of packaging 32 mm wide tape Pieces per package 145 Denomination packing units Pcs. [W] tape width 32 mm [A] coil diameter 330 mm [W2] coil overall dimension 38.4 mm Outer packaging type Transparent-Bag ESD level (D) electrostatically conductive Specification DIN EN 61340-5-1 (VDE 0300-5-1): 2008-07 General product information Type of note Assembly instruction: Note This item is not suitable for PCB cleaning with liquids. Processing notes Process Reflow/wave soldering Specification Following IPC/JEDEC J-STD-020E:2014-12 Following IEC 61760-1:2006-04 Follwing IEC 60068-2-58:2015-03 Moisture Sensitive Level MSL 1 Classification temperature Tc 260 °C Solder cycles in the reflow 3 Ambient conditions Ambient temperature (storage/transport) -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (operation) -40 °C ... 105 °C (Depending on the current carrying capacity/derating curve) Electrical tests Rated current 13.5 A Conductor cross section 1.5 mm² Rated voltage (III/2) 320 V Rated surge voltage (III/2) 4 kV Air clearances and creepage distances Clearances and creepage distances IEC 60947-7-4:2013-08 Specification IEC 60947-7-4:2013-08 Minimum clearance - inhomogeneous field (III/3) 3 mm 09/12/2020   Page 3 / 6 https://www.phoenixcontact.com/pi/products/1071199 PCB terminal block - SPTA-THR 1,5/ 2-5,08 R32 - 1071199 Technical data Air clearances and creepage distances Minimum clearance - inhomogeneous field (III/2) 3 mm Minimum clearance - inhomogeneous field (II/2) 3 mm Minimum creepage distance value (III/3) 4 mm Minimum creepage distance value (III/2) 3.2 mm Minimum creepage distance value (II/2) 4 mm Current carrying capacity / derating curves Specification IEC 60947-7-4:2019-01 Number of positions 4 Reduction factor 1 Note Representation based on IEC 60512-5-2:2002-02 Standards and Regulations Connection in acc. with standard EN-VDE Classifications eCl@ss eCl@ss 10.0.1 27440401 eCl@ss 8.0 27440401 eCl@ss 9.0 27440401 ETIM ETIM 5.0 EC002643 ETIM 6.0 EC002643 ETIM 7.0 EC002643 Approvals Approvals Approvals cULus Recognized / EAC / VDE Zeichengenehmigung / IECEE CB Scheme / VDE Zeichengenehmigung Ex Approvals Approval details 09/12/2020   Page 4 / 6 https://www.phoenixcontact.com/pi/products/1071199 PCB terminal block - SPTA-THR 1,5/ 2-5,08 R32 - 1071199 Approvals cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E60425-20061129   B D Nominal voltage UN 300 V 300 V Nominal current IN 10 A 10 A mm²/AWG/kcmil 24-16 24-16 EAC      B.01687 VDE Zeichengenehmigung    http://www2.vde.com/de/Institut/Online-Service/ VDE-gepruefteProdukte/Seiten/Online-Suche.aspx  40046113     Nominal voltage UN 320 V Nominal current IN 13.5 A mm²/AWG/kcmil 0.2-1.5 IECEE CB Scheme    http://www.iecee.org/     Nominal voltage UN 160 V Nominal current IN 13.5 A mm²/AWG/kcmil 0.2-1.5 VDE Zeichengenehmigung    http://www2.vde.com/de/Institut/Online-Service/ VDE-gepruefteProdukte/Seiten/Online-Suche.aspx  DE1-63833  40046113 Accessories Accessories Crimping tool Crimping pliers - CRIMPFOX 6 - 1212034 Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm² ... 6.0 mm², lateral entry, trapezoidal crimp     09/12/2020   Page 5 / 6 https://www.phoenixcontact.com/pi/products/1071199 PCB terminal block - SPTA-THR 1,5/ 2-5,08 R32 - 1071199 Accessories Screwdriver tools Screwdriver - SZS 0,4X2,5 VDE - 1205037 Screwdriver, slot-headed, VDE insulated, size: 0.4 x 2.5 x 80 mm, 2-component grip, with non-slip grip     Test plug terminal block Test plugs - MPS-MT 1-S - 1944372 Test plug, consisting of 1.0 mm Ø test pin and 2.0 mm Ø socket     Accessories - MPS-MT 1-S4-B RD - 1982800 Accessories, number of positions: 1, pitch: 0 mm     Phoenix Contact 2020 © - all rights reserved http://www.phoenixcontact.com PHOENIX CONTACT GmbH & Co. KG Flachsmarktstr. 8 32825 Blomberg Germany Tel. +49 5235 300 Fax +49 5235 3 41200 http://www.phoenixcontact.com 09/12/2020   Page 6 / 6
