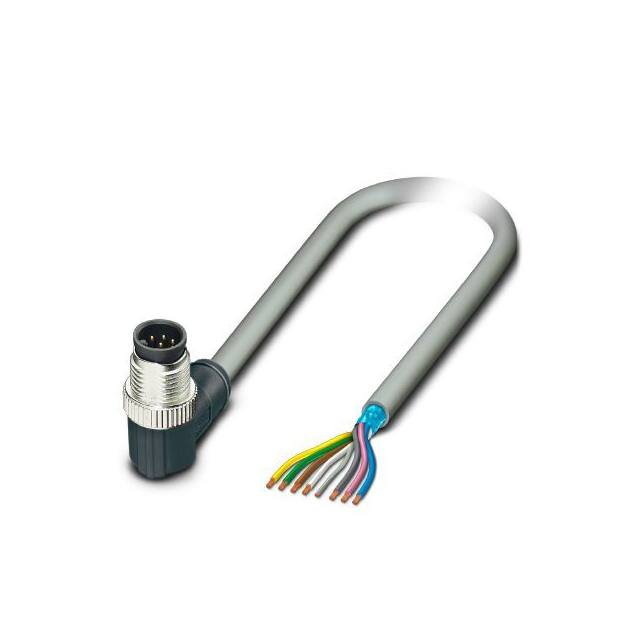

https://www.phoenixcontact.com/us/products/1095818 Sensor/actuator cable - SAC-8P-M12MR/15,0-680 FDP - 1095818 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator cable, 8-position, PVC, gray, shielded, Plug angled M12, coding: A, on free cable end, cable length: 15 m, Foil shielding plus drain wire Key Commercial Data Packing unit 1 pc GTIN GTIN 4055626927695 Weight per Piece (excluding packing) 620.000 g Country of origin United States Technical data Dimensions Length of cable 15 m Ambient conditions Ambient temperature (operation) -25 °C ... 90 °C (Plug / socket) -25 °C ... 90 °C (Plug / socket) Degree of protection IP65 IP67 IP68 General Rated current at 40°C 2A Rated voltage 30 V AC 30 V DC 12/27/2021   Page 1 / 6 https://www.phoenixcontact.com/us/products/1095818 Sensor/actuator cable - SAC-8P-M12MR/15,0-680 FDP - 1095818 Technical data General Number of positions 8 Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Status display No Protective circuit/component unwired Overvoltage category II Degree of pollution 3 Insertion/withdrawal cycles ≥ 100 Torque 0.4 Nm (M12 connector) Material Flammability rating according to UL 94 HB Contact material CuZn Contact surface material Ni/Au Contact carrier material TPU GF Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, nickel-plated Standards and Regulations Standards/specifications M12 connector IEC 61076-2-101 Cable Cable type PVC, gray, 105°C UL AWM style 2517 (105 °C / 300 V) AWG signal line 24 Core diameter including insulation 1.12 mm ±0.03 mm Wire colors white, brown, green, yellow, gray, pink, blue Type of pair shielding Plastic-coated aluminum foil, aluminum side inside Overall twist Conductors, fillers, and drain wire are twisted with left-hand lay Shielding Plastic-coated aluminum foil connection with a drain wire External cable diameter D 5.11 mm ±0.2 mm Minimum bending radius, flexible installation 8xD Cable weight 40.55 kg/km External sheath, color gray Outer sheath, material PVC Material conductor insulation PVC (Signal line) Conductor material Tin-plated Cu litz wires Insulation resistance ≥ (550 M Ohms/m @ 500V) 12/27/2021   Page 2 / 6 https://www.phoenixcontact.com/us/products/1095818 Sensor/actuator cable - SAC-8P-M12MR/15,0-680 FDP - 1095818 Technical data Cable Conductor resistance max. 80.2 Ω/km (20 °C) Nominal voltage, cable 300 V Other resistance UV resistant Flame resistance FT4 Ambient temperature (operation) -30 °C ... 105 °C (cable, fixed installation) Environmental Product Compliance REACh SVHC Lead 7439-92-1 Drawings Schematic diagram Dimensional drawing Ø14,8 30,2 M12 Ø11 Pin assignment M12 plug, 8-pos., A-coded, view plug side 34,5 M12 x 1 male plug, angled 12/27/2021   Page 3 / 6 https://www.phoenixcontact.com/us/products/1095818 Sensor/actuator cable - SAC-8P-M12MR/15,0-680 FDP - 1095818 Circuit diagram 1 1 BN 2 2 WH 3 3 GN 4 4 YE 5 5 GY 6 6 PK 7 7 BU 8 8 DRAIN Contact assignment of the M12 plug and the M12 socket 12/27/2021   Page 4 / 6 https://www.phoenixcontact.com/us/products/1095818 Sensor/actuator cable - SAC-8P-M12MR/15,0-680 FDP - 1095818 Cable cross section Classifications eCl@ss eCl@ss 10.0.1 27060311 eCl@ss 11.0 27060311 eCl@ss 9.0 27060311 UNSPSC UNSPSC 19.0 31251501 UNSPSC 20.0 31251501 UNSPSC 21.0 31251501 12/27/2021   Page 5 / 6 https://www.phoenixcontact.com/us/products/1095818 Sensor/actuator cable - SAC-8P-M12MR/15,0-680 FDP - 1095818 Approvals Approvals Approvals UL Listed / cUL Listed / cULus Listed Ex Approvals Approval details UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 30 V Nominal current IN 2A cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 30 V Nominal current IN 2A cULus Listed      FILE E 221474  FILE E 221474   Phoenix Contact 2021 © - all rights reserved http://www.phoenixcontact.com 12/27/2021   Page 6 / 6
