Sensor/actuator cable - SAC-8P-15,0-680/M12FR FDP - 1095877
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

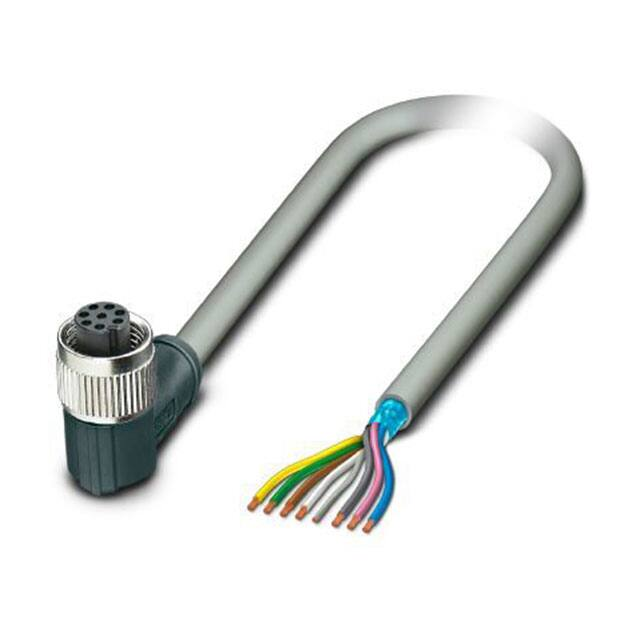

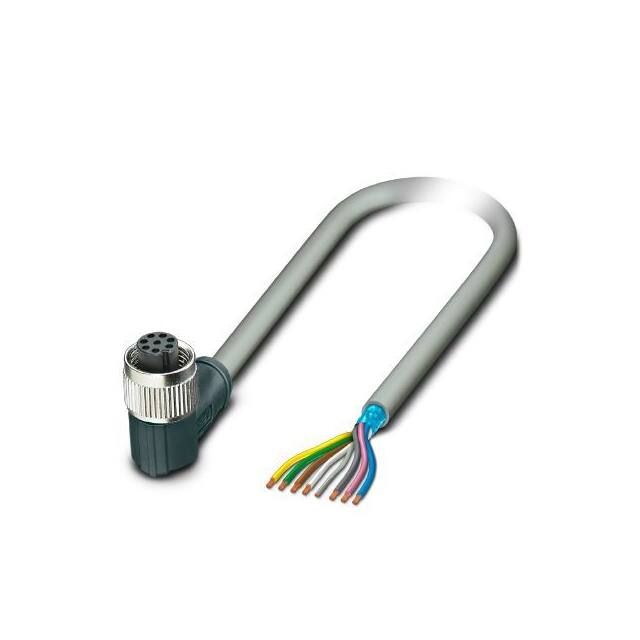

Sensor/actuator cable, 8-position, PVC, gray, shielded, free cable end, on Socket angled M12, coding: A, cable
length: 15 m, Foil shielding plus drain wire
Key Commercial Data
Packing unit
1 pc
GTIN
GTIN
4055626928289
Weight per Piece (excluding packing)
620.000 g
Country of origin
United States
Technical data
Dimensions
Length of cable
15 m
Ambient conditions
Ambient temperature (operation)
-25 °C ... 90 °C (Plug / socket)
-25 °C ... 90 °C (Plug / socket)
Degree of protection
IP65
IP67
IP68
General
Rated current at 40°C
2A
Rated voltage
30 V AC
30 V DC
12/17/2021 Page 1 / 9
https://www.phoenixcontact.com/us/products/1095877
Sensor/actuator cable - SAC-8P-15,0-680/M12FR FDP - 1095877
Technical data
General
Number of positions
8
Insulation resistance
≥ 100 MΩ
Coding
A - standard
Standards/regulations
M12 connector IEC 61076-2-101
Status display
No
Protective circuit/component
unwired
Overvoltage category
II
Degree of pollution
3
Insertion/withdrawal cycles
≥ 100
Torque
0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94
HB
Contact material
CuZn
Contact surface material
Ni/Au
Contact carrier material
TPU GF
Material of grip body
TPU, hardly inflammable, self-extinguishing
Material, knurls
Zinc die-cast, nickel-plated
Sealing material
NBR
Standards and Regulations
Standards/specifications
M12 connector IEC 61076-2-101
Cable
Cable type
PVC, gray, 105°C
UL AWM style
2517 (105 °C / 300 V)
AWG signal line
24
Core diameter including insulation
1.12 mm ±0.03 mm
Wire colors
white, brown, green, yellow, gray, pink, blue
Type of pair shielding
Plastic-coated aluminum foil, aluminum side inside
Overall twist
Conductors, fillers, and drain wire are twisted with left-hand lay
Shielding
Plastic-coated aluminum foil connection with a drain wire
External cable diameter D
5.11 mm ±0.2 mm
Minimum bending radius, flexible installation
8xD
Cable weight
40.55 kg/km
External sheath, color
gray
Outer sheath, material
PVC
Material conductor insulation
PVC (Signal line)
Conductor material
Tin-plated Cu litz wires
12/17/2021 Page 2 / 9
https://www.phoenixcontact.com/us/products/1095877
Sensor/actuator cable - SAC-8P-15,0-680/M12FR FDP - 1095877
Technical data
Cable
Insulation resistance
≥ (550 M Ohms/m @ 500V)
Conductor resistance
max. 80.2 Ω/km (20 °C)
Nominal voltage, cable
300 V
Other resistance
UV resistant
Flame resistance
FT4
Ambient temperature (operation)
-30 °C ... 105 °C (cable, fixed installation)
Environmental Product Compliance
REACh SVHC
Lead 7439-92-1
Drawings
Schematic diagram
Dimensional drawing
Ø14,8
27,4
M12
Ø11
Pin assignment M12 socket, 8-pos., A-coded,
view female side
34,5
M12 x 1 socket, angled
12/17/2021 Page 3 / 9
https://www.phoenixcontact.com/us/products/1095877
Sensor/actuator cable - SAC-8P-15,0-680/M12FR FDP - 1095877
Circuit diagram
1
WH
2
BN
3
GN
4
YE
5
GY
6
PK
7
BU
8
DRAIN
Contact assignment of the M12 plug and the M12 socket
12/17/2021 Page 4 / 9
https://www.phoenixcontact.com/us/products/1095877
Sensor/actuator cable - SAC-8P-15,0-680/M12FR FDP - 1095877
Cable cross section
Classifications
eCl@ss
eCl@ss 10.0.1
27060311
eCl@ss 11.0
27060311
eCl@ss 9.0
27060311
UNSPSC
UNSPSC 19.0
31251501
UNSPSC 20.0
31251501
UNSPSC 21.0
31251501
12/17/2021 Page 5 / 9
https://www.phoenixcontact.com/us/products/1095877
Sensor/actuator cable - SAC-8P-15,0-680/M12FR FDP - 1095877
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
Approval details
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Nominal voltage UN
30 V
Nominal current IN
2A
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Nominal voltage UN
30 V
Nominal current IN
2A
cULus Listed
FILE E 221474
FILE E 221474
Accessories
Accessories
Conductor marking
Insert label - PABA WH/23 - 1013779
Insert label, Strip, white, unlabeled, can be labeled with: CMS-P1-PLOTTER, mounting type: slide-on, cable diameter
range: 1.5 ... 35 mm, lettering field size: 23 x 4 mm, Number of individual labels: 20
12/17/2021 Page 6 / 9
https://www.phoenixcontact.com/us/products/1095877
Sensor/actuator cable - SAC-8P-15,0-680/M12FR FDP - 1095877
Accessories
Insert label - PABA YE/23 - 1013782
Insert label, Strip, yellow, unlabeled, can be labeled with: CMS-P1-PLOTTER, mounting type: slide-on, cable diameter
range: 1.5 ... 35 mm, lettering field size: 23 x 4 mm, Number of individual labels: 20
Marker pen
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Plug for cable screw gland
Screw plug - PROT-M12 MS-PA-CHAIN - 1430899
M12 sealing cap with fixing band, for sensor cables, for free M12 sockets
Protective cap
Sealing cap - PROT-M12 FS-PA-CHAIN - 1430873
M12 sealing cap made of plastic with fixing band, for sensor cables, for free M12 plugs
Safety locking
12/17/2021 Page 7 / 9
https://www.phoenixcontact.com/us/products/1095877
Sensor/actuator cable - SAC-8P-15,0-680/M12FR FDP - 1095877
Accessories
Locking clip - SAC-M12-EXCLIP-M - 1558988
Locking clip for the pin side of sensor/actuator cables with M12 connector and M12 connectors for assembly, for knurl
diameter: 15 mm or for Allen key with a wrench size of 14 mm, prevents the disconnection of plug-in connections without
tools
Locking clip - SAC-M12-EXCLIP-F - 1558991
Locking clip for the socket side of sensor/actuator cables with M12 connector and M12 connectors for assembly, for knurl
diameter: 15 mm or for Allen key with a wrench size of 14 mm, prevents the disconnection of plug-in connections without
tools
Screwdriver tools
Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600
Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits
Tool - SAC BIT M12-D15 - 1208432
Nut for assembling sensor/actuator cables with M12 connector and M12 connectors for assembly, with a knurl diameter
of 15 mm, for 4 mm hexagonal drive
Torque tool
Torque screwdriver - TSD 04 SAC - 1208429
Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors
12/17/2021 Page 8 / 9
https://www.phoenixcontact.com/us/products/1095877
Sensor/actuator cable - SAC-8P-15,0-680/M12FR FDP - 1095877
Accessories
Torque screwdriver - TSD-M 1,2NM - 1212224
Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm
Phoenix Contact 2021 © - all rights reserved
