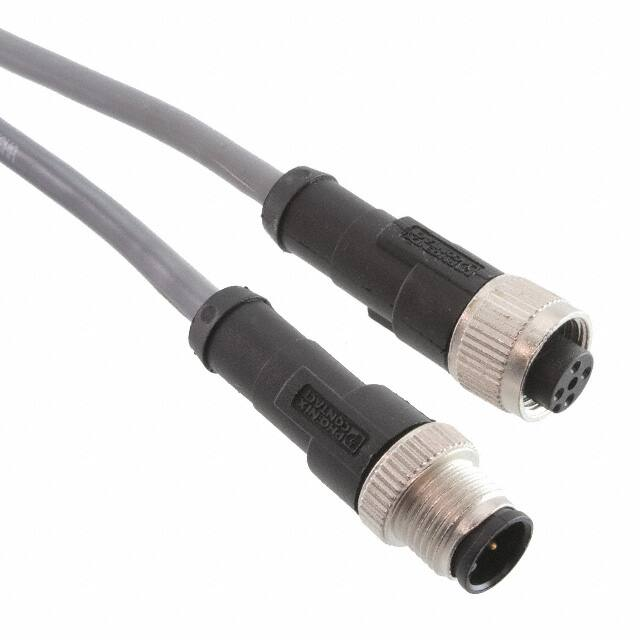

https://www.phoenixcontact.com/us/products/1095904 Sensor/actuator cable - SAC-4P-M12MS/0,5-680/M12FS FDP - 1095904 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator cable, 4-position, PVC, gray, shielded, Plug straight M12, coding: A, on Socket straight M12, coding: A, cable length: 0.5 m, Foil shielding plus drain wire Key Commercial Data Packing unit 1 pc GTIN GTIN 4055626928555 Weight per Piece (excluding packing) 40.000 g Country of origin United States Technical data Dimensions Length of cable 0.5 m Ambient conditions Ambient temperature (operation) -25 °C ... 90 °C (Plug / socket) -25 °C ... 90 °C (Plug / socket) Degree of protection IP65 IP67 IP68 General Rated current at 40°C 4A Rated voltage 250 V AC 250 V DC 12/27/2021   Page 1 / 8 https://www.phoenixcontact.com/us/products/1095904 Sensor/actuator cable - SAC-4P-M12MS/0,5-680/M12FS FDP - 1095904 Technical data General Number of positions 4 Insulation resistance ≥ 10 MΩ Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Status display No Protective circuit/component unwired Overvoltage category II Degree of pollution 3 Insertion/withdrawal cycles ≥ 100 Torque 0.4 Nm (M12 connector) Material Flammability rating according to UL 94 HB Contact material CuSn Contact surface material Ni/Au Contact carrier material TPU GF Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, nickel-plated Sealing material NBR Standards and Regulations Standards/specifications M12 connector IEC 61076-2-101 Cable Cable type PVC, gray, 105°C Cable type (abbreviation) 680 UL AWM style 2517 (105 °C / 300 V) AWG signal line 22 Core diameter including insulation 1.27 mm ±0.03 mm Wire colors brown, blue, black Type of pair shielding Plastic-coated aluminum foil, aluminum side inside Overall twist Conductors, fillers, and drain wire are twisted with left-hand lay Shielding Plastic-coated aluminum foil connection with a drain wire External cable diameter D 4.75 mm ±0.2 mm Minimum bending radius, flexible installation 8xD Cable weight 35.4 kg/km External sheath, color gray Outer sheath, material PVC Material conductor insulation PVC (Signal line) 12/27/2021   Page 2 / 8 https://www.phoenixcontact.com/us/products/1095904 Sensor/actuator cable - SAC-4P-M12MS/0,5-680/M12FS FDP - 1095904 Technical data Cable Conductor material Tin-plated Cu litz wires Insulation resistance ≥ (550 M Ohms/m @ 500V) Conductor resistance max. 51.1 Ω/km (20 °C) Nominal voltage, cable 300 V Special properties UL standards PLTC and ITC Other resistance UV resistant Flame resistance FT4 Ambient temperature (operation) -30 °C ... 105 °C (cable, fixed installation) Drawings Schematic diagram Schematic diagram 4 3 3 4 1 2 2 1 Pin assignment M12 plug, 4-pos., A-coded, view plug side Pin assignment M12 socket, 4-pos., A-coded, view female side Dimensional drawing Dimensional drawing M12 Ø11 Ø11 M12 Ø14,8 Plug, M12 x 1, straight Ø14,8 44 46,8 M12 x 1 socket, straight 12/27/2021   Page 3 / 8 https://www.phoenixcontact.com/us/products/1095904 Sensor/actuator cable - SAC-4P-M12MS/0,5-680/M12FS FDP - 1095904 Circuit diagram 1 1 BN 2 2 DRAIN 3 3 BU 4 4 BK Contact assignment of the M12 plug and the M12 socket 12/27/2021   Page 4 / 8 https://www.phoenixcontact.com/us/products/1095904 Sensor/actuator cable - SAC-4P-M12MS/0,5-680/M12FS FDP - 1095904 Cable cross section PVC, gray, 105°C [680] Classifications eCl@ss eCl@ss 10.0.1 27060311 eCl@ss 11.0 27060311 eCl@ss 9.0 27060311 UNSPSC UNSPSC 19.0 31251501 UNSPSC 20.0 31251501 12/27/2021   Page 5 / 8 https://www.phoenixcontact.com/us/products/1095904 Sensor/actuator cable - SAC-4P-M12MS/0,5-680/M12FS FDP - 1095904 Classifications UNSPSC UNSPSC 21.0 31251501 Approvals Approvals Approvals UL Listed / cUL Listed / cULus Listed Ex Approvals Approval details UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 300 V Nominal current IN 4A cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 300 V Nominal current IN 4A cULus Listed      FILE E 221474  FILE E 221474   Accessories Accessories Plug for cable screw gland 12/27/2021   Page 6 / 8 https://www.phoenixcontact.com/us/products/1095904 Sensor/actuator cable - SAC-4P-M12MS/0,5-680/M12FS FDP - 1095904 Accessories Screw plug - PROT-M12 MS-PA-CHAIN - 1430899 M12 sealing cap with fixing band, for sensor cables, for free M12 sockets     Protective cap Sealing cap - PROT-M12 FS-PA-CHAIN - 1430873 M12 sealing cap made of plastic with fixing band, for sensor cables, for free M12 plugs     Safety locking Locking clip - SAC-M12-EXCLIP-M - 1558988 Locking clip for the pin side of sensor/actuator cables with M12 connector and M12 connectors for assembly, for knurl diameter: 15 mm or for Allen key with a wrench size of 14 mm, prevents the disconnection of plug-in connections without tools     Locking clip - SAC-M12-EXCLIP-F - 1558991 Locking clip for the socket side of sensor/actuator cables with M12 connector and M12 connectors for assembly, for knurl diameter: 15 mm or for Allen key with a wrench size of 14 mm, prevents the disconnection of plug-in connections without tools     Screwdriver tools 12/27/2021   Page 7 / 8 https://www.phoenixcontact.com/us/products/1095904 Sensor/actuator cable - SAC-4P-M12MS/0,5-680/M12FS FDP - 1095904 Accessories Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600 Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits     Tool - SAC BIT M12-D15 - 1208432 Nut for assembling sensor/actuator cables with M12 connector and M12 connectors for assembly, with a knurl diameter of 15 mm, for 4 mm hexagonal drive     Torque tool Torque screwdriver - TSD 04 SAC - 1208429 Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors     Torque screwdriver - TSD-M 1,2NM - 1212224 Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm     Phoenix Contact 2021 © - all rights reserved http://www.phoenixcontact.com 12/27/2021   Page 8 / 8
