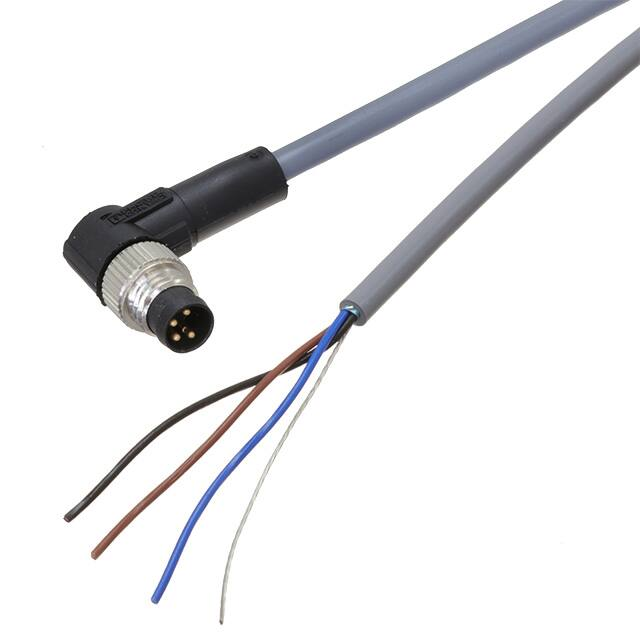

https://www.phoenixcontact.com/us/products/1096008 Sensor/actuator cable - SAC-4P-M8MR/ 5,0-680 FDP - 1096008 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator cable, 4-position, PVC, gray, shielded, Plug angled M8, on free cable end, cable length: 5 m, Foil shielding plus drain wire Key Commercial Data Packing unit 1 pc GTIN GTIN 4055626929590 Weight per Piece (excluding packing) 140.000 g Country of origin United States Technical data Dimensions Length of cable 5m Ambient conditions Ambient temperature (operation) -25 °C ... 90 °C (Plug / socket) -25 °C ... 90 °C (Plug / socket) Degree of protection IP65 IP67 IP68 General Rated current at 40°C 4A Rated voltage 48 V AC 60 V DC 12/27/2021   Page 1 / 6 https://www.phoenixcontact.com/us/products/1096008 Sensor/actuator cable - SAC-4P-M8MR/ 5,0-680 FDP - 1096008 Technical data General Number of positions 4 Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M8 connector IEC 61076-2-104 Status display No Protective circuit/component unwired Overvoltage category II Degree of pollution 3 Insertion/withdrawal cycles ≥ 100 Torque 0.2 Nm (M8 connectors) Material Flammability rating according to UL 94 HB Contact material CuSn Contact surface material Ni/Au Contact carrier material TPU GF Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, nickel-plated Standards and Regulations Standards/specifications M8 connector IEC 61076-2-104 Cable Cable type PVC, gray, 105°C UL AWM style 2517 (105 °C / 300 V) AWG signal line 24 Core diameter including insulation 1.12 mm ±0.03 mm Wire colors brown, blue, black Type of pair shielding Plastic-coated aluminum foil, aluminum side inside Overall twist Conductors, fillers, and drain wire are twisted with left-hand lay Shielding Plastic-coated aluminum foil connection with a drain wire External cable diameter D 4.17 mm ±0.2 mm Minimum bending radius, flexible installation 8xD Cable weight 26.04 kg/km External sheath, color gray Outer sheath, material PVC Material conductor insulation PVC (Signal line) Conductor material Tin-plated Cu litz wires Insulation resistance ≥ (550 M Ohms/m @ 500V) 12/27/2021   Page 2 / 6 https://www.phoenixcontact.com/us/products/1096008 Sensor/actuator cable - SAC-4P-M8MR/ 5,0-680 FDP - 1096008 Technical data Cable Conductor resistance max. 80.2 Ω/km (20 °C) Nominal voltage, cable 300 V Other resistance UV resistant Flame resistance FT4 Ambient temperature (operation) -30 °C ... 105 °C (cable, fixed installation) Environmental Product Compliance REACh SVHC Lead 7439-92-1 Drawings Schematic diagram 2 4 1 3 Dimensional drawing Ø10 23,9 M8 Ø7,5 Pin assignment M8 plug, 4-pos., view male side 27,9 M8 x 1 male plug, angled version Circuit diagram 1 2 3 4 1 BN 2 DRAIN 3 BU 4 BK Contact assignment of M8 plugs/sockets 12/27/2021   Page 3 / 6 https://www.phoenixcontact.com/us/products/1096008 Sensor/actuator cable - SAC-4P-M8MR/ 5,0-680 FDP - 1096008 Cable cross section Classifications eCl@ss eCl@ss 10.0.1 27060311 eCl@ss 11.0 27060311 eCl@ss 9.0 27060311 UNSPSC UNSPSC 19.0 31251501 UNSPSC 20.0 31251501 UNSPSC 21.0 31251501 12/27/2021   Page 4 / 6 https://www.phoenixcontact.com/us/products/1096008 Sensor/actuator cable - SAC-4P-M8MR/ 5,0-680 FDP - 1096008 Approvals Approvals Approvals UL Listed / cUL Listed / cULus Listed Ex Approvals Approval details  UL Listed   http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 30 V Nominal current IN 4A  cUL Listed   http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 30 V Nominal current IN 4A  cULus Listed     FILE E 221474  FILE E 221474   Accessories Accessories Plug for cable screw gland Screw plug - PROT-M 8 MS-PA-CHAIN - 1430860 M8 sealing cap made of plastic with fixing band for sensor cables, for M8 sockets     12/27/2021   Page 5 / 6 https://www.phoenixcontact.com/us/products/1096008 Sensor/actuator cable - SAC-4P-M8MR/ 5,0-680 FDP - 1096008 Accessories Protective cap Sealing cap - PROT-M 8 FS-PA-CHAIN - 1430857 M8 sealing cap made of plastic with fixing band for sensor cables, for M8 plugs     Screwdriver tools Tool - SAC BIT M8-D10 - 1208461 Nut for assembling M8 connectors with longitudinal knurl and a knurl diameter of 10 mm, for 4 mm hexagonal drive     Torque tool Torque screwdriver - TSD 02 SAC - 1208487 Torque screwdriver, with preset torque of 0.2 Nm and 4 mm hexagonal drive for M8 connectors     Phoenix Contact 2021 © - all rights reserved http://www.phoenixcontact.com 12/27/2021   Page 6 / 6
