1401062

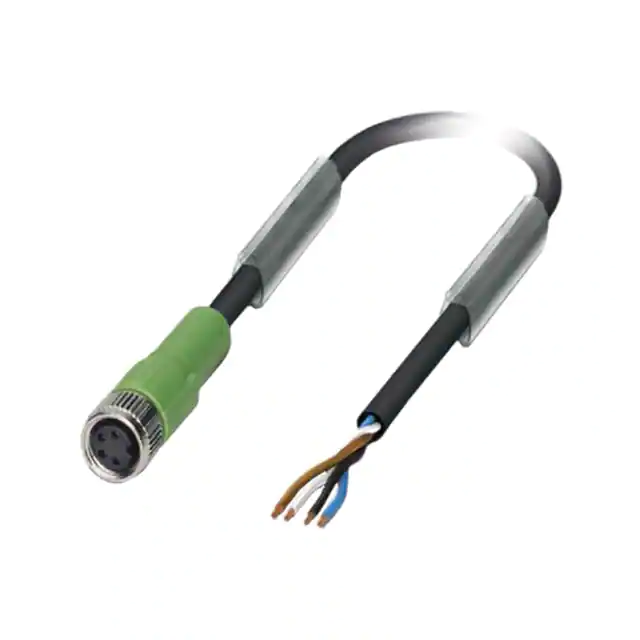

https://www.phoenixcontact.com/us/products/1401062 Sensor/Actuator cable - SAC-4P-10,0-PVC/M 8FS - 1401062 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/Actuator cable, 4-position, PVC, Black RAL 9005, free cable end, on Socket straight M8, Cable length: 10 m Product Features  Easy and safe: 100% electrically tested plug-in components     Key commercial data Packing unit 1 pc Custom tariff number 85444290 Country of origin Germany Technical data Dimensions Length of cable 10 m Ambient conditions Ambient temperature (operation) -25 °C ... 90 °C (Plug / socket) Degree of protection IP65 IP67 IP68 General Rated current at 40°C 4A Rated voltage 30 V Number of positions 4 Contact resistance ≤ 5 mΩ Insulation resistance ≥ 100 MΩ Coding A - standard 05/13/2015   Page 1 / 4 https://www.phoenixcontact.com/us/products/1401062 Sensor/Actuator cable - SAC-4P-10,0-PVC/M 8FS - 1401062 Technical data General Standards/regulations M8 connector IEC 61076-2-104 Status display No Protective circuit/component Unwired Surge voltage category II Pollution degree 3 Insertion/withdrawal cycles ≥ 100 Material Inflammability class according to UL 94 HB Contact material CuSn Contact surface material Ni/Au Contact carrier material TPU GF Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, nickel-plated Sealing material NBR Cable Cable type PVC black Cable type (abbreviation) PVC Cable abbreviation LiYY Conductor cross section 4x 0.25 mm² (signal line) AWG signal line 24 Conductor structure signal line 14x 0.15 mm Core diameter including insulation 1.17 mm ±0.05 mm Thickness, insulation ≥ 0.23 mm (Core insulation) ≥ 0.76 mm (Outer cable sheath) Wire colors brown, white, blue, black Overall twist 4 wires, twisted External sheath, color Black RAL 9005 External cable diameter D 4.4 mm ±0.15 mm Cable weight 33 kg/km Outer sheath, material PVC Material conductor insulation PVC Conductor material Bare Cu litz wires Insulation resistance ≥ 100 MΩ*km (at 20 °C) Conductor resistance max. 79 Ω/km (at 20 °C) Nominal voltage, cable ≤ 300 V Test voltage, cable ≥ 3000 V 05/13/2015   Page 2 / 4 https://www.phoenixcontact.com/us/products/1401062 Sensor/Actuator cable - SAC-4P-10,0-PVC/M 8FS - 1401062 Technical data Cable Flame resistance As per UL-Style 2464 Classifications eCl@ss eCl@ss 4.0 27060306 eCl@ss 4.1 27060306 eCl@ss 5.0 27061801 eCl@ss 5.1 27061801 eCl@ss 6.0 27061801 eCl@ss 7.0 27061801 eCl@ss 8.0 27279218 ETIM ETIM 3.0 EC001855 ETIM 4.0 EC001855 ETIM 5.0 EC001855 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Drawings Schematic diagram 4 2 3 1 Cable cross section Pin assignment M8 socket, 4-pos., view female side PVC black [PVC] 05/13/2015   Page 3 / 4 https://www.phoenixcontact.com/us/products/1401062 Sensor/Actuator cable - SAC-4P-10,0-PVC/M 8FS - 1401062 Dimensional drawing Circuit diagram Socket M8 x 1, straight M8 Ø10 Ø7,5 33,7 1 BN 2 WH 4 BK 3 BU Contact assignment of M8/M12 plugs/sockets Phoenix Contact 2015 © - all rights reserved http://www.phoenixcontact.com 05/13/2015   Page 4 / 4
