1401096

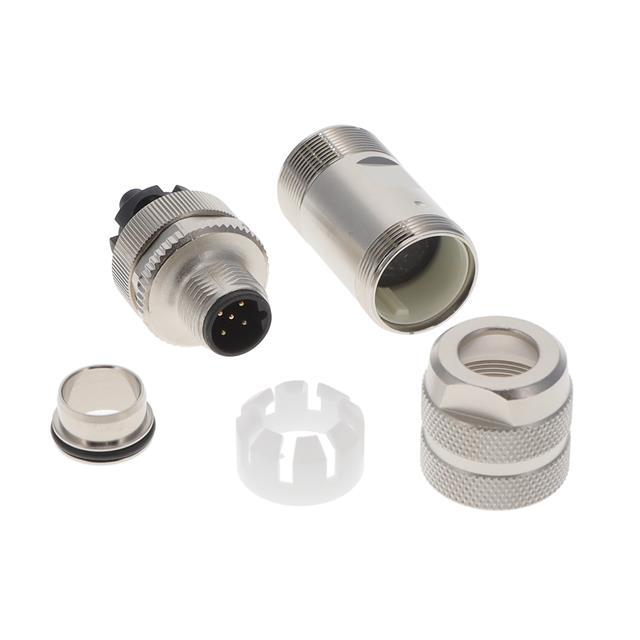

https://www.phoenixcontact.com/us/produkte/1401096 Bus system plug connector - SACC-M12MSB-5CON-PG9 SH XL PB - 1401096 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Bus system connector, male connector, straight, 5-pos., M12, shielded, gold-plated contacts, Bencoded, screw connection, metal knurl, PG11 cable gland     Key commercial data Packing unit 0 Minimum order quantity 1 GTIN Custom tariff number 85366990 Country of origin GERMANY Technical data General data Rated current at 40°C 4A Rated voltage 60 V Number of positions 5 Volume resistance ≤ 3 mΩ Insulation resistance ≥ 100 MΩ General characteristics Coding B - inverse Surge voltage category II Pollution degree 3 Degree of protection IP67 Torque 1 Nm ... 1.4 Nm (Pressure nut) Contact material CuZn Contact surface material Au Contact carrier material PA 66 Material of grip body Zinc die-cast, nickel-plated Material, knurls Nickel-plated brass Sealing material NBR Connection method Screw connection 08.08.2012   Page 1 / 3 https://www.phoenixcontact.com/us/produkte/1401096 Bus system plug connector - SACC-M12MSB-5CON-PG9 SH XL PB - 1401096 Technical data General characteristics Conductor cross section 0.25 mm² ... 0.75 mm² AWG conductor cross section 24 ... 18 External cable diameter 8 mm ... 10 mm Status display No Classifications eclass eCl@ss 4.0 27250313 eCl@ss 4.1 27250313 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 7.0 27449001 etim ETIM 3.0 EC002062 ETIM 4.0 EC002062 unspsc UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Drawings Schematic diagram Schematic diagram 4 Cable connection side M12 (screw connection) 3 5 1 2 Pin assignment M12 male connector, 5-pos., B-coded, male side 08.08.2012   Page 2 / 3 https://www.phoenixcontact.com/us/produkte/1401096 Bus system plug connector - SACC-M12MSB-5CON-PG9 SH XL PB - 1401096 Dimensioned drawing Functional drawing Ø20,2 M12x1 62 18 M12 x 1 male connector, straight, shielded © Phoenix Contact 2012 - all rights reserved http://www.phoenixcontact.com 08.08.2012   Page 3 / 3
