1402503

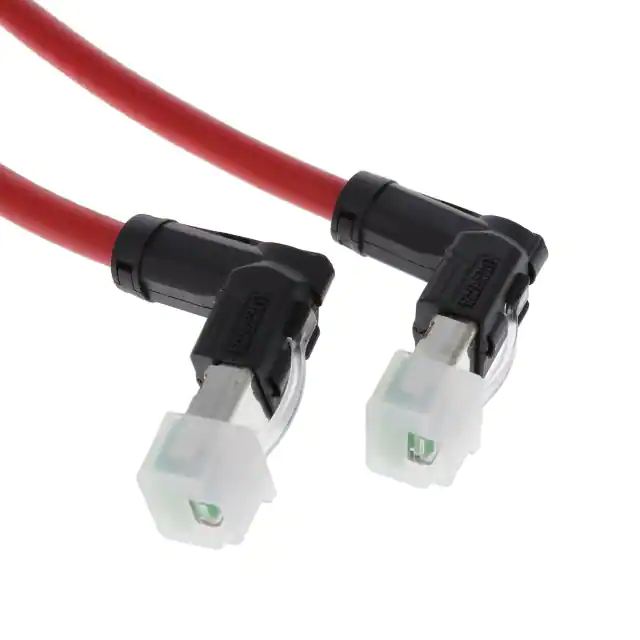

https://www.phoenixcontact.com/us/products/1402503 Patch cable - VS-PNRJ45R-PNRJ45R-93K-0,3 - 1402503 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sercos III patch cable, shielded, star quad, AWG 22 stranded (7-wire), RAL 3020 (traffic red), RJ45 connector/IP 20, angled, to RJ45 connector/IP20, angled, length: 0.3 m Sercos III patch cable Key Commercial Data Packing unit 1 pc GTIN GTIN 4046356622516 Weight per Piece (excluding packing) 40.000 g Custom tariff number 85444210 Country of origin Poland Technical data Dimensions Length of cable 0.30 m Ambient conditions Degree of protection IP20 General data Number of positions 4 Degree of pollution 1 Rated voltage (III/3) 72 V (DC) Degree of protection IP20 Characteristics head 1 07/09/2020   Page 1 / 6 https://www.phoenixcontact.com/us/products/1402503 Patch cable - VS-PNRJ45R-PNRJ45R-93K-0,3 - 1402503 Technical data Characteristics head 1 Color black Material (component) CuSn (Contact) Ni/Au (Contact surface) PA (Contact carriers) PA (Housing) Insertion/withdrawal cycles ≥ 750 Ambient temperature (operation) -25 °C ... 80 °C Shielded yes Characteristics head 2 Color black Material (component) CuSn (Contact) Ni/Au (Contact surface) PA (Contact carriers) PA (Housing) Insertion/withdrawal cycles ≥ 750 Ambient temperature (operation) -25 °C ... 80 °C Standards and Regulations Flammability rating according to UL 94 V0 Cable Cable type Sercos III Cable type (abbreviation) 93K UL AWM style 21694 (60°C / 600 V) Signal type/category Sercos CAT5 (IEC 11801), 100 Mbps Cable structure 1x4xAWG22/7; SF/TQ Conductor cross section 4x 0.34 mm² AWG signal line 22 Conductor structure signal line 7x 0.25 mm Core diameter including insulation approx. 1.55 mm Wire colors White, yellow, blue, orange Type of pair shielding Aluminum-lined polyester foil Overall twist Star quad Shielding Tinned copper braided shield External sheath, color signal red RAL 3020 Outer sheath thickness approx. 0.9 mm External cable diameter D 6.5 mm ±0.2 mm Minimum bending radius, fixed installation 3xD 07/09/2020   Page 2 / 6 https://www.phoenixcontact.com/us/products/1402503 Patch cable - VS-PNRJ45R-PNRJ45R-93K-0,3 - 1402503 Technical data Cable Minimum bending radius, flexible installation 7xD Cable weight 68 kg/km Outer sheath, material PVC Material, inner sheath PVC Material conductor insulation PE Conductor material Tin-plated Cu litz wires Insulation resistance ≥ 0.5 GΩ*km Conductor resistance ≤ 120 Ω/km Wave impedance 100 Ω ±15 Ω (at 100 MHz) Signal runtime 5.3 ns/m Coupling resistance ≤ 20.00 mΩ/m (at 10 Hz) Nominal voltage, cable 600 V Test voltage Core/Core 2000 V (50 Hz, 1 min.) Test voltage Core/Shield 2000 V (50 Hz, 1 min.) Flame resistance according to UL 1685 (CSA FT 4) Resistance to oil Resistant to oil to a limited extent Other resistance UV resistant According to UL 1581, Section 1200 Ambient temperature (operation) -40 °C ... 70 °C (cable, fixed installation) -40 °C ... 70 °C (cable, flexible installation) Ambient temperature (installation) -20 °C ... 60 °C Ambient temperature (storage/transport) -50 °C ... 70 °C Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings 07/09/2020   Page 3 / 6 https://www.phoenixcontact.com/us/products/1402503 Patch cable - VS-PNRJ45R-PNRJ45R-93K-0,3 - 1402503 Dimensional drawing RJ45 connector, IP20, angled Circuit diagram 07/09/2020   Page 4 / 6 https://www.phoenixcontact.com/us/products/1402503 Patch cable - VS-PNRJ45R-PNRJ45R-93K-0,3 - 1402503 Cable cross section Sercos III [93K] Classifications eCl@ss eCl@ss 10.0.1 27060308 eCl@ss 4.0 24010400 eCl@ss 4.1 24010400 eCl@ss 5.0 19030300 eCl@ss 5.1 19030300 eCl@ss 6.0 27061800 eCl@ss 7.0 27060308 07/09/2020   Page 5 / 6 https://www.phoenixcontact.com/us/products/1402503 Patch cable - VS-PNRJ45R-PNRJ45R-93K-0,3 - 1402503 Classifications eCl@ss eCl@ss 8.0 27060308 eCl@ss 9.0 27060308 ETIM ETIM 4.0 EC002599 ETIM 5.0 EC002599 ETIM 6.0 EC001262 ETIM 7.0 EC001262 UNSPSC UNSPSC 6.01 26121616 UNSPSC 7.0901 26121616 UNSPSC 11 26121604 UNSPSC 12.01 31261501 UNSPSC 13.2 26121604 UNSPSC 18.0 26121604 UNSPSC 19.0 26121604 UNSPSC 20.0 26121604 UNSPSC 21.0 26121604 Approvals Approvals Approvals EAC Ex Approvals Approval details EAC      19060508 Phoenix Contact 2020 © - all rights reserved http://www.phoenixcontact.com 07/09/2020   Page 6 / 6
