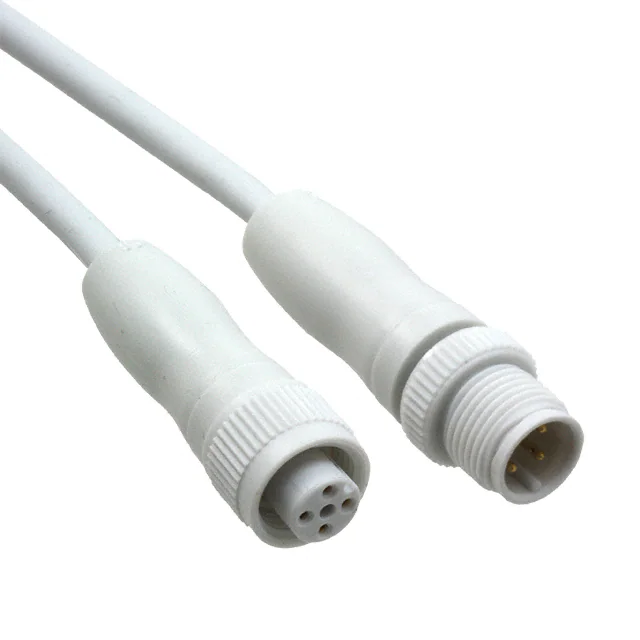

https://www.phoenixcontact.com/us/products/1404026 Sensor/actuator cable - SAC-4P-M12MS/3,0-600/M12FS FB - 1404026 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator cable, 4-position, PP-EPDM halogen-free, gray RAL 7035, Plug straight M12, coding: A, on Socket straight M12, coding: A, cable length: 3 m, Hygienic design, with plastic knurl Your advantages  Easy and safe: 100% electrically tested plug-in components  Easy to clean, thanks to the special hygienic design  Contamination can be detected quickly – thanks to the light color Key Commercial Data Packing unit 1 pc GTIN GTIN 4046356677714 Weight per Piece (excluding packing) 100.000 g Custom tariff number 85444290 Country of origin Poland Technical data Dimensions Length of cable 3m Ambient conditions Ambient temperature (operation) -40 °C ... 105 °C (Plug / socket) -40 °C ... 105 °C (Plug / socket) Degree of protection IP65 IP67 04/20/2021   Page 1 / 6 https://www.phoenixcontact.com/us/products/1404026 Sensor/actuator cable - SAC-4P-M12MS/3,0-600/M12FS FB - 1404026 Technical data Ambient conditions IP68 IP69K General Rated current at 40°C 4A Rated voltage 250 V AC 250 V DC Number of positions 4 Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Material conformance FDA 21 CFR 177.2600 Status display No Protective circuit/component unwired Overvoltage category II Degree of pollution 3 Insertion/withdrawal cycles ≥ 100 Torque 0.4 Nm (M12 connector) Material Contact material CuSn Contact surface material Ni/Au Contact carrier material PP Material of grip body PP Material, knurls Polypropylene Sealing material FKM Standards and Regulations Standards/specifications M12 connector IEC 61076-2-101 Material conformance FDA 21 CFR 177.2600 Cable Cable type Halogen-free PP gray Cable type (abbreviation) 600 Cable abbreviation Li9Y9Y Conductor cross section 4x 0.34 mm² (Signal line) AWG signal line 22 Conductor structure signal line 42x 0.10 mm Core diameter including insulation 1.27 mm ±0.02 mm (Signal line) 04/20/2021   Page 2 / 6 https://www.phoenixcontact.com/us/products/1404026 Sensor/actuator cable - SAC-4P-M12MS/3,0-600/M12FS FB - 1404026 Technical data Cable Thickness, insulation ≥ 0.21 mm (Core insulation) Wire colors brown, white, blue, black Overall twist 4 wires, twisted Length of twist, overall twist 48 mm External sheath, color gray RAL 7035 Outer sheath thickness approx. 0.8 mm External cable diameter D 4.7 mm ±0.15 mm Minimum bending radius, fixed installation 5xD Minimum bending radius, flexible installation 10 x D Number of bending cycles 4000000 Minimum bending radius, drag chain applications 10 x D Traversing path 10 m Traversing rate 3 m/s Acceleration 10 m/s² Torsion force ± 270 °/m (4,000,000 torsion cycles, max. 25 torsion cycles/min) Cable weight 30 kg/km Outer sheath, material PP-EPDM Material conductor insulation PP Conductor material Bare Cu litz wires Conductor resistance 58 Ω/km (at 20 °C) Nominal voltage, cable ≤ 300 V AC Test voltage, cable ≥ 3000 V AC (Spark test) Special properties FDA compliant according to FDA 21 CFR 177.2600 highly flexible Flexible cable conduit capable Other resistance Resistant to cold bending and cold impacts According to DIN EN 60811-1-4 (-40 °C) Halogen-free in accordance with DIN VDE 0472 part 815 Ambient temperature (operation) -40 °C ... 105 °C (cable, fixed installation) -25 °C ... 105 °C (cable, flexible installation) Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings 04/20/2021   Page 3 / 6 https://www.phoenixcontact.com/us/products/1404026 Sensor/actuator cable - SAC-4P-M12MS/3,0-600/M12FS FB - 1404026 Schematic diagram Schematic diagram 4 3 3 4 1 2 2 1 Pin assignment M12 plug, 4-pos., A-coded, view plug side Pin assignment M12 socket, 4-pos., A-coded, view female side Cable cross section Dimensional drawing Ø13,4 M12 Ø14,8 46,8 Halogen-free PP gray [600] Plug, M12 x 1, straight, shielded Dimensional drawing Circuit diagram M12 Ø14,8 Ø13,4 44 M12 x 1 socket, straight 1 1 4 4 3 3 2 2 Contact assignment of the M12 plug and the M12 socket Classifications eCl@ss eCl@ss 10.0.1 27060311 eCl@ss 11.0 27060311 eCl@ss 4.0 27060300 eCl@ss 4.1 27060300 eCl@ss 5.0 27061800 eCl@ss 5.1 27061800 eCl@ss 6.0 27279200 eCl@ss 7.0 27279218 04/20/2021   Page 4 / 6 https://www.phoenixcontact.com/us/products/1404026 Sensor/actuator cable - SAC-4P-M12MS/3,0-600/M12FS FB - 1404026 Classifications eCl@ss eCl@ss 9.0 27060311 ETIM ETIM 3.0 EC001855 ETIM 4.0 EC001855 ETIM 6.0 EC001855 ETIM 7.0 EC001855 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 UNSPSC 19.0 31251501 UNSPSC 20.0 31251501 UNSPSC 21.0 31251501 Approvals Approvals Approvals EAC-RoHS / EAC Ex Approvals Approval details EAC-RoHS      RU DDE.HB35.B.00387 EAC      RU CDE.BL08.B.00286 04/20/2021   Page 5 / 6 https://www.phoenixcontact.com/us/products/1404026 Phoenix Contact 2021 © - all rights reserved http://www.phoenixcontact.com 04/20/2021   Page 6 / 6
