Sensor/Actuator cable - SAC-5P-M12MS/3,0-600 FB - 1404076
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

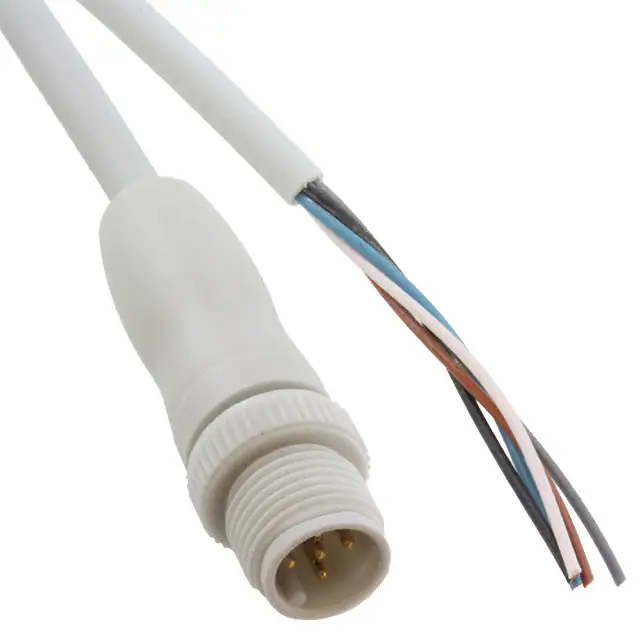

Sensor/Actuator cable, 5-position, PP-EPDM halogen-free, Gray RAL 7035, Plug straight M12, Acoded, on Free cable end, Cable length: 3 m, Hygienic design, with plastic knurl
Key commercial data
Packing unit
0
Minimum order quantity
1
GTIN
Custom tariff number
85444290
Country of origin
POLAND
Technical data
General data
Number of positions
5
Volume resistance
≤ 5 mΩ
Insulation resistance
≥ 100 MΩ
Length of cable
3m
Ambient temperature (operation)
-40 °C ... 105 °C (Male connector / female connector)
General characteristics
Standards/regulations
M12 plug-in connector IEC 61076-2-101
Coding
A - standard
Surge voltage category
II
Pollution degree
3
Degree of protection
IP65/IP68/IP69K
Insertion/withdrawal cycles
≥ 100
Contact material
CuSn
Contact surface material
Ni/Au
Contact carrier material
PP
Material of grip body
PP
Material, knurls
PP
Status display
No
18.01.2013 Page 1 / 6
https://www.phoenixcontact.com/us/produkte/1404076
Sensor/Actuator cable - SAC-5P-M12MS/3,0-600 FB - 1404076
Technical data
Conductor data
Cable type
Halogen-free PP gray
Cable type (abbreviation)
600
Cable abbreviation
Li9Y9Y
Conductor cross section
5x 0.34 mm² (signal line)
AWG signal line
22
Conductor structure signal line
42x 0.10 mm
Core diameter including insulation
1.27 mm ±0.02 mm (signal line)
Thickness, insulation
≥ 0.21 mm (Core insulation)
Wire colors
Brown, white, blue, black, gray
Overall twist
5 cores, twisted
Length of twist, overall twist
55 mm
External sheath, color
Gray RAL 7035
Outer sheath thickness
Approx. 0.7 mm
External cable diameter D
5 mm ±0.15 mm
Minimum bending radius, fixed installation
5xD
Minimum bending radius, flexible installation
10 x D
Cable weight
34 kg/km
Outer sheath, material
PP-EPDM
Material conductor insulation
PP
Conductor material
Bare Cu litz wires
Conductor resistance
58 Ω/km (At an ambient temperature of 20°C)
Nominal voltage, conductor
≤ 300 V AC
Test voltage, conductor
≥ 3000 V AC
Special properties
FDA compliant
Halogen-free
in accordance with DIN VDE 0472 part 815
Ambient temperature (operation)
-40 °C ... 105 °C (cable, fixed installation)
Classifications
ETIM
ETIM 3.0
EC001855
ETIM 4.0
EC001855
ETIM 5.0
EC001855
UNSPSC
UNSPSC 11
31251501
UNSPSC 12.01
31251501
UNSPSC 13.2
31251501
UNSPSC 6.01
31251501
UNSPSC 7.0901
31251501
eCl@ss
eCl@ss 4.0
27060306
18.01.2013 Page 2 / 6
https://www.phoenixcontact.com/us/produkte/1404076
Sensor/Actuator cable - SAC-5P-M12MS/3,0-600 FB - 1404076
Classifications
eCl@ss
eCl@ss 4.1
27060306
eCl@ss 5.0
27061801
eCl@ss 5.1
27061801
eCl@ss 6.0
27061801
eCl@ss 7.0
27061801
Accessories
Accessories
Tools
Cable-cutting tool - CUTFOX-S VDE - 1212207
Diagonal cutter for copper and aluminum conductors, VDE-tested
Stripping tool - WIREFOX SAC - 1212623
Stripping pliers, for halogen-free sensor/actuator cables (SAC cables), with PUR and PVC insulation, from
Ø of 4.4 to 7 mm, any stripping length
Stripping tool - WIREFOX 10 - 1212150
Stripping tool, for cables and conductors from 0.02 - 10 mm², self-adjusting, stripping length of up to 18 mm,
cutting capacity of up to 10 mm² stranded/1.5 mm² solid, replaceable stripping blade
Drawings
18.01.2013 Page 3 / 6
https://www.phoenixcontact.com/us/produkte/1404076
Sensor/Actuator cable - SAC-5P-M12MS/3,0-600 FB - 1404076
Schematic diagram
4
Cable cross section
3
5
1
2
Pin assignment M12 male connector, 5-pos., A-coded, male side
Halogen-free PP gray [600]
Circuit diagram
1
BN
2
WH
4
BK
3
BU
5
GY
Contact assignment of the M12 plug
18.01.2013 Page 4 / 6
https://www.phoenixcontact.com/us/produkte/1404076
Sensor/Actuator cable - SAC-5P-M12MS/3,0-600 FB - 1404076
Dimensioned drawing
Ø13,4
M12
Ø14,8
46,8
M12 x 1 male connector, straight
