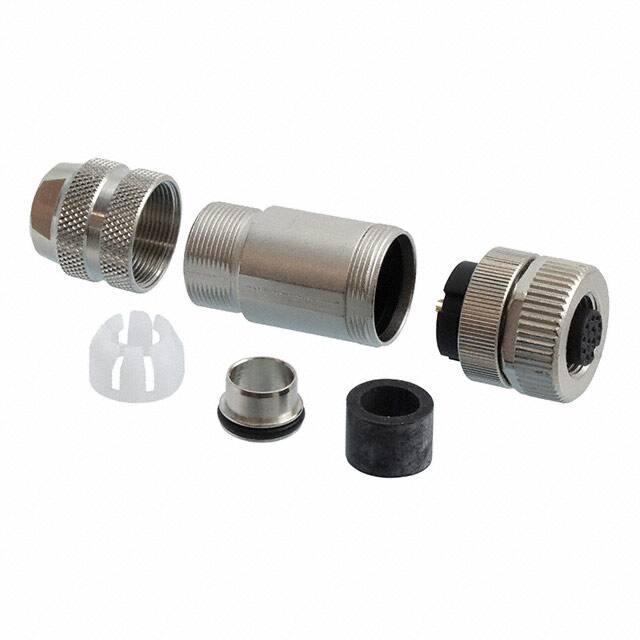

https://www.phoenixcontact.com/us/products/1404411 Connector - SACC-M12FS-12SOL-PG 9-M SH - 1404411 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Connector, Universal, 12-position, shielded, Socket straight M12, A-coded, Solder connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6 mm ... 8 mm Your advantages  Safe use in the field, thanks to a high degree of protection  Flexible: connectors for on-site assembly  Save space – with high-pos. connectors  Reliable signal transmission - 360° shielding in environments with electromagnetic interference Key Commercial Data Packing unit 1 pc GTIN GTIN 4046356693844 Weight per Piece (excluding packing) 40.000 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Diameter housing 19.6 mm Length 56 mm External cable diameter 6 mm ... 8 mm Stripping length of the sheath 35 mm Stripping length of the individual wire 4 mm 04/11/2019   Page 1 / 6 https://www.phoenixcontact.com/us/products/1404411 Connector - SACC-M12FS-12SOL-PG 9-M SH - 1404411 Technical data Ambient conditions Ambient temperature (operation) -40 °C ... 85 °C (Plug / socket) Degree of protection IP67 General Rated current at 40°C 1.5 A (up to 40 °C) Rated voltage 30 V AC 30 V DC Number of positions 12 Insulation resistance > 10 GΩ Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Signal type/category Universal Status display No Overvoltage category II Degree of pollution 3 Connection method Solder connection Conductor cross section 0.08 mm² ... 0.25 mm² (without ferrule) 0.08 mm² ... 0.25 mm² (solid) Conductor cross section AWG 28 ... 24 (without ferrule) Insertion/withdrawal cycles ≥ 100 Torque 0.4 Nm (M12 knurl) 0.8 Nm ... 1 Nm (Pressure screw) Tightening torque Screw plug insert with sleeve housing as far it will go Material Flammability rating according to UL 94 HB Contact material CuZn Contact surface material Au Contact carrier material PA Material of grip body Zinc die-cast, nickel-plated Material, knurls Zinc die-cast, nickel-plated Sealing material NBR Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Flammability rating according to UL 94 HB Environmental Product Compliance 04/11/2019   Page 2 / 6 https://www.phoenixcontact.com/us/products/1404411 Connector - SACC-M12FS-12SOL-PG 9-M SH - 1404411 Technical data Environmental Product Compliance China RoHS Environmentally Friendly Use Period = 25; For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Schematic diagram 10 2 Dimensional drawing 3 11 4 ! 56 Ø18 8 6 M12x1 5 9 12 7 Pin assignment M12 socket, 12-pos., A-coded, view female side Ø19,6 1 18 M12 x 1 socket, straight, shielded Classifications eCl@ss eCl@ss 4.0 27140815 eCl@ss 4.1 27140815 eCl@ss 5.0 27143423 eCl@ss 5.1 27143400 eCl@ss 6.0 27279200 eCl@ss 7.0 27440104 eCl@ss 8.0 27440104 eCl@ss 9.0 27440102 ETIM ETIM 3.0 EC002062 ETIM 4.0 EC002062 ETIM 5.0 EC002062 ETIM 6.0 EC002062 UNSPSC UNSPSC 6.01 30211824 UNSPSC 7.0901 39121413 UNSPSC 11 39121413 UNSPSC 12.01 39121413 04/11/2019   Page 3 / 6 https://www.phoenixcontact.com/us/products/1404411 Connector - SACC-M12FS-12SOL-PG 9-M SH - 1404411 Classifications UNSPSC UNSPSC 13.2 39121413 Approvals Approvals Approvals UL Recognized / cUL Recognized / EAC / cULus Recognized Ex Approvals Approval details UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 30 V Nominal current IN 1A cUL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 30 V Nominal current IN 1A  FILE E 221474  FILE E 221474 EAC      EAC-Zulassung cULus Recognized       04/11/2019   Page 4 / 6 https://www.phoenixcontact.com/us/products/1404411 Connector - SACC-M12FS-12SOL-PG 9-M SH - 1404411 Accessories Accessories Protective cap Screw plug - PROT-M12 MS-PA-CHAIN - 1430899 M12 sealing cap with fixing band, for sensor cables, for free M12 sockets     Screwdriver tools Tool - SACC BIT M12-D20 - 1208445 Nut for assembling M12 connectors for assembly with a knurl diameter of 20 mm, for 4 mm hexagonal drive     Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600 Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits     Stripping tool Stripping tool - WIREFOX SAC - 1212623 Stripping pliers, for halogen-free sensor/actuator cables (SAC cables), with PUR and PVC insulation, from Ø of 4.4 to 7 mm, any stripping length     Torque tool 04/11/2019   Page 5 / 6 https://www.phoenixcontact.com/us/products/1404411 Connector - SACC-M12FS-12SOL-PG 9-M SH - 1404411 Accessories Torque screwdriver - TSD 04 SAC - 1208429 Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors     Torque screwdriver - TSD-M 1,2NM - 1212224 Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm     Stripping tool - VS-CABLE-STRIP-VARIO - 1657407 Stripping tool, for the multi-level stripping of shielded cables     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 04/11/2019   Page 6 / 6
