1404644

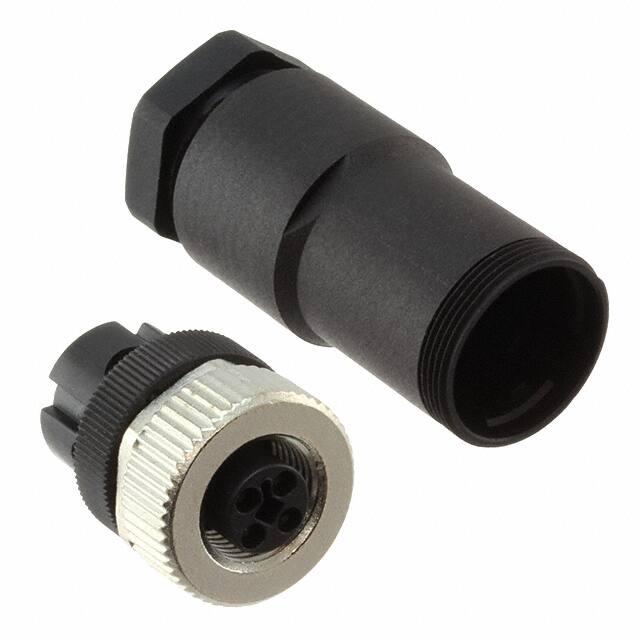

https://www.phoenixcontact.com/us/products/1404644 Power connectors - SACC-M12FST-3PECON-PG11-M - 1404644 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Power connectors, Power, 4-position, Socket straight M12, T-coded, Screw connection, knurl material: Zinc diecast, nickel-plated, cable gland Pg11, external cable diameter 8 mm ... 10 mm, For direct current up to 12 A/63 V Your advantages  Safe use in the field, thanks to a high degree of protection  Flexible: connectors for on-site assembly  Screw connection: proven connection technology for a large selection of different conductors  High-performance: DC connectors for up to 12 A and 63 V DC  Protection against incorrect connection using special T-coding Key Commercial Data Packing unit 1 pc GTIN GTIN 4046356707756 Weight per Piece (excluding packing) 20.000 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Wrench size, union nut 19 mm Diameter housing 20 mm Length 60.4 mm External cable diameter 8 mm ... 10 mm Stripping length of the sheath 20 mm 01/09/2020   Page 1 / 8 https://www.phoenixcontact.com/us/products/1404644 Power connectors - SACC-M12FST-3PECON-PG11-M - 1404644 Technical data Dimensions Stripping length of the individual wire 5 mm Ambient conditions Ambient temperature (operation) -40 °C ... 85 °C (Plug / socket) Degree of protection IP67 General Note Strip 22 mm off the cable sheath, strip 7 mm off the conductor insulation, crimp the ferrule, then shorten this to 5 mm. Length of conductor with shortened ferrule: 20 mm. Connect conductors and tighten the mounting screws with 0.2 Nm. NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. Rated current at 40°C 12 A (when using 1.5 mm² conductors) 12 A (at 40 °C) Rated voltage 63 V DC Number of positions 4 Color handle area black Insulation resistance > 10 GΩ Coding T power Standards/regulations M12 connector IEC 61076-2-111 Signal type/category Power Status display No Overvoltage category III Degree of pollution 3 Connection method Screw connection Conductor cross section 0.75 mm² ... 1.5 mm² (without ferrule) 0.75 mm² ... 1.5 mm² (with ferrule) 0.75 mm² ... 1.5 mm² (solid) Conductor cross section AWG 18 ... 16 (without ferrule) 18 ... 16 (with ferrule) Insertion/withdrawal cycles ≥ 100 Torque 0.4 Nm (M12 knurl) 1.5 Nm ... 2 Nm (Pressure screw with sleeve housing) 0.4 Nm (Screw plug insert with sleeve housing as far it will go) 0.2 Nm (Screw terminal blocks) Assembly instructions The wires can be connected both with ferrules and without ferrules Material 01/09/2020   Page 2 / 8 https://www.phoenixcontact.com/us/products/1404644 Power connectors - SACC-M12FST-3PECON-PG11-M - 1404644 Technical data Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Au Contact carrier material PA Material of grip body PA Material, knurls Zinc die-cast, nickel-plated Sealing material Viton (M12 socket) NBR (Cable clamping) Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-111 Flammability rating according to UL 94 V0 Environmental Product Compliance Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Dimensional drawing M12 x 1 socket, straight 01/09/2020   Page 3 / 8 https://www.phoenixcontact.com/us/products/1404644 Power connectors - SACC-M12FST-3PECON-PG11-M - 1404644 Schematic diagram Pin assignment of M12 socket, 4-pos., T-coded, socket side view Classifications eCl@ss eCl@ss 10.0.1 27440102 eCl@ss 4.0 27260700 eCl@ss 4.1 27260700 eCl@ss 5.0 27260700 eCl@ss 5.1 27260700 01/09/2020   Page 4 / 8 https://www.phoenixcontact.com/us/products/1404644 Power connectors - SACC-M12FST-3PECON-PG11-M - 1404644 Classifications eCl@ss eCl@ss 6.0 27279200 eCl@ss 7.0 27440104 eCl@ss 8.0 27440104 eCl@ss 9.0 27440102 ETIM ETIM 2.0 EC001121 ETIM 3.0 EC002062 ETIM 4.0 EC002062 ETIM 5.0 EC002062 ETIM 6.0 EC002062 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 39121413 UNSPSC 18.0 39121413 UNSPSC 19.0 39121413 UNSPSC 20.0 39121413 UNSPSC 21.0 39121413 Approvals Approvals Approvals UL Recognized / cUL Recognized / EAC / cULus Recognized Ex Approvals Approval details 01/09/2020   Page 5 / 8 https://www.phoenixcontact.com/us/products/1404644 Power connectors - SACC-M12FST-3PECON-PG11-M - 1404644 Approvals  UL Recognized   http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 60 V Nominal current IN 12 A mm²/AWG/kcmil 16  cUL Recognized   http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 60 V Nominal current IN 12 A mm²/AWG/kcmil 16 EAC  cULus Recognized   FILE E 221474  FILE E 221474     RU CDE.AI30.B.01102      Accessories Accessories Cable end sleeve Ferrule - A 1,5 - 7 - 3200263 Ferrule, length: 7 mm, color: silver     Crimping tool 01/09/2020   Page 6 / 8 https://www.phoenixcontact.com/us/products/1404644 Power connectors - SACC-M12FST-3PECON-PG11-M - 1404644 Accessories Crimping pliers - CRIMPFOX 6H - 1212046 Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.14 mm² ... 6 mm², unlockable pressure lock, lateral entry     Plug for cable screw gland Screw plug - PROT-M12 MS-PA-CHAIN - 1430899 M12 sealing cap with fixing band, for sensor cables, for free M12 sockets     Screwdriver tools Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600 Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits     Tool - SACC BIT M12-D20 - 1208445 Nut for assembling M12 connectors for assembly with a knurl diameter of 20 mm, for 4 mm hexagonal drive     Stripping tool 01/09/2020   Page 7 / 8 https://www.phoenixcontact.com/us/products/1404644 Power connectors - SACC-M12FST-3PECON-PG11-M - 1404644 Accessories Stripping tool - WIREFOX 6SC - 1212158 Stripping tool, for cables and conductors (especially for cables protected against short circuits and ground leakages) 1.5 - 6 mm², self-adjusting, stripping length of up to 18 mm, cutting capacity of up to 10 mm² stranded/1.5 mm² solid, replaceable stripping blade     Torque tool Torque screwdriver - TSD 04 SAC - 1208429 Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors     Torque screwdriver - TSD-M 1,2NM - 1212224 Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm     Phoenix Contact 2020 © - all rights reserved http://www.phoenixcontact.com 01/09/2020   Page 8 / 8
