Sensor/actuator cable - SAC-3P- 2,0-542/M8 FS SH BK - 1406063
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

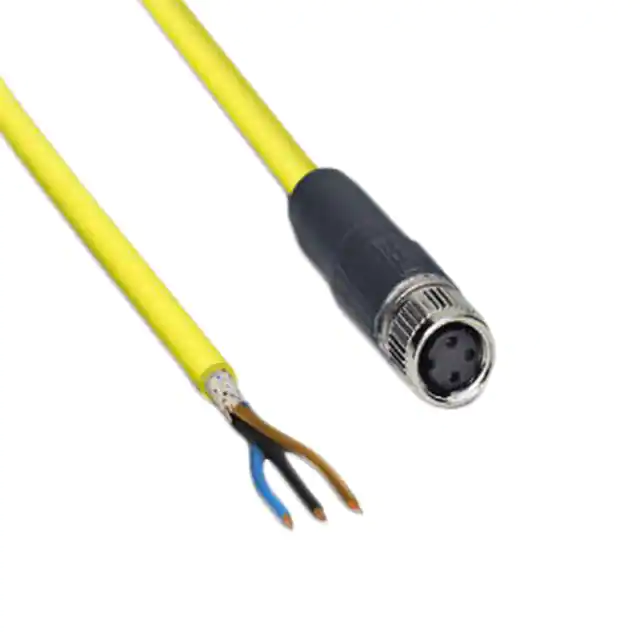

Sensor/actuator cable, 3-position, PVC, yellow, shielded, free cable end, on Socket straight M8, cable length: 2 m
Key Commercial Data
Packing unit
1 pc
GTIN
GTIN
4046356799843
Weight per Piece (excluding packing)
100.000 g
Custom tariff number
85444290
Country of origin
United States
Technical data
Dimensions
Length of cable
2m
Ambient conditions
Ambient temperature (operation)
-25 °C ... 90 °C (Plug / socket)
Degree of protection
IP65
IP67
General
Rated current at 40°C
4A
Rated voltage
48 V AC
60 V DC
Number of positions
3
07/14/2019 Page 1 / 10
https://www.phoenixcontact.com/us/products/1406063
Sensor/actuator cable - SAC-3P- 2,0-542/M8 FS SH BK - 1406063
Technical data
General
Color handle area
black
Insulation resistance
≥ 100 MΩ
Coding
A - standard
Standards/regulations
M8 connector IEC 61076-2-104
Status display
No
Protective circuit/component
unwired
Overvoltage category
II
Degree of pollution
3
Insertion/withdrawal cycles
≥ 100
Torque
0.2 Nm (M8 connectors)
Material
Flammability rating according to UL 94
HB
Contact material
CuSn
Contact surface material
Ni/Au
Contact carrier material
TPU GF
Material of grip body
TPU, hardly inflammable, self-extinguishing
Material, knurls
Zinc die-cast, nickel-plated
Sealing material
NBR
Standards and Regulations
Standard designation
M8 connector
Standards/regulations
IEC 61076-2-104
Flammability rating according to UL 94
HB
Cable
Cable type
PVC yellow 105 °C
Cable type (abbreviation)
542
UL AWM style
2517 (105 °C / 300 V)
AWG signal line
24
Conductor structure signal line
32x 1.10 mm
Core diameter including insulation
1.12 mm ±0.03 mm
Wire colors
brown, blue, black
Overall twist
3 wires, twisted
Shielding
Tinned copper braided shield
Optical shield covering
85 %
External sheath, color
yellow
External cable diameter D
4.7 mm ±0.2 mm
Minimum bending radius, flexible installation
12 x D
07/14/2019 Page 2 / 10
https://www.phoenixcontact.com/us/products/1406063
Sensor/actuator cable - SAC-3P- 2,0-542/M8 FS SH BK - 1406063
Technical data
Cable
Cable weight
33 kg/km
Outer sheath, material
PVC
Material conductor insulation
PVC
Conductor material
Tin-plated Cu litz wires
Insulation resistance
≥ (550 M Ohms/m @ 500V)
Conductor resistance
max. 79.7 Ω/km (20 °C)
Nominal voltage, cable
300 V
Flame resistance
FT4
Other resistance
UV resistant
Ambient temperature (operation)
-30 °C ... 105 °C (cable, fixed installation)
-5 °C ... 105 °C (cable, flexible installation)
Environmental Product Compliance
Lead 7439-92-1
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category
“Manufacturer's declaration”
Drawings
Schematic diagram
Cable cross section
4
3
1
Pin assignment M8 socket, 3-pos., view female side
PVC yellow 105 °C [542]
07/14/2019 Page 3 / 10
https://www.phoenixcontact.com/us/products/1406063
Sensor/actuator cable - SAC-3P- 2,0-542/M8 FS SH BK - 1406063
Circuit diagram
Dimensional drawing
BK
3
BU
M8
4
33,8
Ø10
BN
Ø8,4
1
Contact assignment of M8 socket
Socket M8 x 1, straight, shielded
Classifications
eCl@ss
eCl@ss 4.0
27060306
eCl@ss 4.1
27060306
eCl@ss 5.0
27061801
eCl@ss 5.1
27061800
eCl@ss 6.0
27279200
eCl@ss 7.0
27279218
eCl@ss 8.0
27279218
eCl@ss 9.0
27060311
ETIM
ETIM 3.0
EC001855
ETIM 4.0
EC001855
ETIM 5.0
EC001855
ETIM 6.0
EC001855
ETIM 7.0
EC001855
UNSPSC
UNSPSC 6.01
31251501
UNSPSC 7.0901
31251501
UNSPSC 11
31251501
UNSPSC 12.01
31251501
UNSPSC 13.2
31251501
Approvals
Approvals
07/14/2019 Page 4 / 10
https://www.phoenixcontact.com/us/products/1406063
Sensor/actuator cable - SAC-3P- 2,0-542/M8 FS SH BK - 1406063
Approvals
Approvals
UL Listed / cUL Listed / EAC / cULus Listed
Ex Approvals
Approval details
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Nominal voltage UN
125 V
Nominal current IN
4A
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Nominal voltage UN
125 V
Nominal current IN
4A
EAC
cULus Listed
FILE E 221474
FILE E 221474
RU CDE.AI30.B.00767
Accessories
Accessories
Conductor marking
07/14/2019 Page 5 / 10
https://www.phoenixcontact.com/us/products/1406063
Sensor/actuator cable - SAC-3P- 2,0-542/M8 FS SH BK - 1406063
Accessories
Insert label - PABA WH/23 - 1013779
Insert label, Strip, white, unlabeled, can be labeled with: CMS-P1-PLOTTER, mounting type: thread on, cable diameter
range: 1.5 ... 35 mm, lettering field size: 23 x 4 mm
Insert label - PABA YE/23 - 1013782
Insert label, Strip, yellow, unlabeled, can be labeled with: CMS-P1-PLOTTER, mounting type: thread on, cable diameter
range: 1.5 ... 35 mm, lettering field size: 23 x 4 mm
Insert label - PABA WH/15 - 1013151
Insert label, Strip, white, unlabeled, can be labeled with: CMS-P1-PLOTTER, mounting type: thread on, cable diameter
range: 0.6 ... 50 mm, lettering field size: 15 x 4 mm
Insert label - PABA YE/15 - 1013698
Insert label, Strip, yellow, unlabeled, can be labeled with: CMS-P1-PLOTTER, mounting type: thread on, cable diameter
range: 0.6 ... 50 mm, lettering field size: 15 x 4 mm
Insert label - PABA RD/15 - 1013944
Insert label, Strip, red, unlabeled, can be labeled with: CMS-P1-PLOTTER, mounting type: thread on, cable diameter
range: 0.6 ... 50 mm, lettering field size: 15 x 4 mm
Corrugated pipe
07/14/2019 Page 6 / 10
https://www.phoenixcontact.com/us/products/1406063
Sensor/actuator cable - SAC-3P- 2,0-542/M8 FS SH BK - 1406063
Accessories
Protective hose - WP-PA HF 13,0 BK - 3240681
Polyamide protective hose, inflammability class V0, UV resistant
Protective hose - WP-PA HF-HB 13,0 BK - 3240839
Polyamide protective hose, inflammability class HB, UV resistant
Cutting tools
Diagonal cutter - CUTFOX-S VDE - 1212207
Diagonal cutter for hard (piano wire) and soft wires, VDE 1000 V AC/1500 V DC tested
Marker carrier cable
Conductor marker carrier - PATG 2/15 - 1013038
Conductor marker carrier, transparent, unlabeled, mounting type: slide on, cable diameter range: 2 ... 4 mm, lettering field
size: 15 x 4 mm
Conductor marker carrier - PATG 3/15 - 1013041
Conductor marker carrier, transparent, unlabeled, mounting type: slide on, cable diameter range: 4 ... 7 mm, lettering field
size: 15 x 4 mm
07/14/2019 Page 7 / 10
https://www.phoenixcontact.com/us/products/1406063
Sensor/actuator cable - SAC-3P- 2,0-542/M8 FS SH BK - 1406063
Accessories
Conductor marker carrier - PATG 4/15 - 1013054
Conductor marker carrier, transparent, unlabeled, mounting type: slide on, cable diameter range: 6 ... 10 mm, lettering
field size: 15 x 4 mm
Marker pen
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Protective cap
Screw plug - PROT-M 8 MS-PA-CHAIN - 1430860
M8 sealing cap made of plastic with fixing band for sensor cables, for M8 sockets
Screwdriver tools
Tool - SAC BIT M8-D10 - 1208461
Nut for assembling M8 connectors with longitudinal knurl and a knurl diameter of 10 mm, for 4 mm hexagonal drive
Stripping tool
07/14/2019 Page 8 / 10
https://www.phoenixcontact.com/us/products/1406063
Sensor/actuator cable - SAC-3P- 2,0-542/M8 FS SH BK - 1406063
Accessories
Stripping tool - WIREFOX SAC-1 - 1212757
Stripping pliers, for halogen-free sensor/actuator cables (SAC cables), with PUR and PVC insulation, from Ø of 3.2 to 4.4
mm, any stripping length
Stripping tool - WIREFOX SAC - 1212623
Stripping pliers, for halogen-free sensor/actuator cables (SAC cables), with PUR and PVC insulation, from Ø of 4.4 to 7
mm, any stripping length
Stripping tool - WIREFOX 10 - 1212150
Stripping tool, for cables and conductors from 0.02 - 10 mm², self-adjusting, stripping length of up to 18 mm, cutting
capacity of up to 10 mm² stranded/1.5 mm² solid, replaceable stripping blade
Torque tool
Torque screwdriver - TSD 02 SAC - 1208487
Torque screwdriver, with preset torque of 0.2 Nm and 4 mm hexagonal drive for M8 connectors
Protective hose adapter - WP-CTA POM 13,0 BK - 1422884
Protective hose adapter, for corrugated hoses with a nominal size of 13 (10 x 13), corrugated in parallel
07/14/2019 Page 9 / 10
