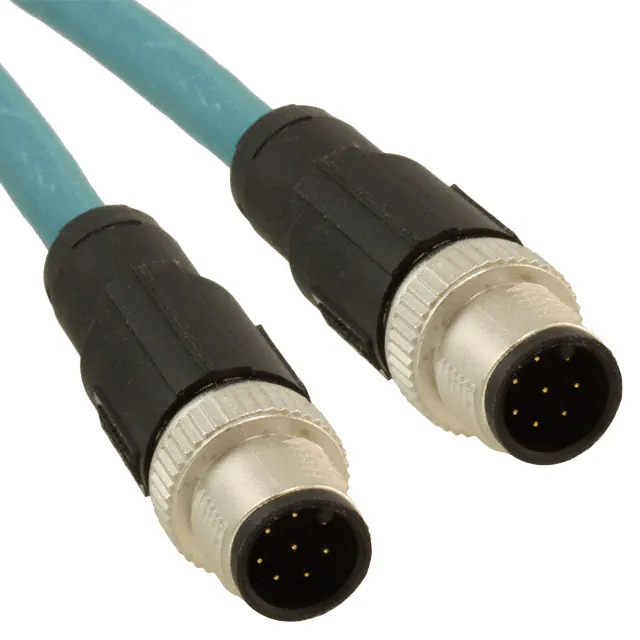

https://www.phoenixcontact.com/us/products/1406118 Network cable - NBC-MS/ 2,0-94B/MS SCO US - 1406118 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Network cable, Ethernet CAT5 (1 Gbps), 8-position, PUR halogen-free, water blue RAL 5021, shielded, Plug straight M12 SPEEDCON / IP67, coding: A, on Plug straight M12 SPEEDCON / IP67, coding: A, cable length: 2 m Key Commercial Data Packing unit 1 pc GTIN GTIN 4046356799317 Weight per Piece (excluding packing) 1.000 g Custom tariff number 85444210 Country of origin United States Technical data Dimensions Length of cable 2m Ambient conditions Degree of protection IP65 IP67 Ambient temperature (operation) -25 °C ... 85 °C (M12 connector) General data Rated current at 40°C 2A Rated voltage 48 V AC 60 V DC Number of positions 8 09/09/2019   Page 1 / 8 https://www.phoenixcontact.com/us/products/1406118 Network cable - NBC-MS/ 2,0-94B/MS SCO US - 1406118 Technical data General data Signal type/category Ethernet CAT5 (on the basis of IEC 11801), 1 Gbps Standards/regulations M12 connector IEC 61076-2-101 Contact material CuSn Contact carrier material TPU GF Contact surface material Ni/Au Characteristics head 1 Head type Plug straight M12 SPEEDCON / IP67 Coding A (Standard) Characteristics head 2 Head type Plug straight M12 SPEEDCON / IP67 Coding A (Standard) Color black Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Cable Cable type Ethernet, flexible, CAT5 Cable type (abbreviation) 94B UL AWM style 20963 (80°C/30 V) Signal type/category Ethernet CAT5 (IEC 11801), 1 Gbps Cable structure 4x2xAWG26/7; SF/UTP Conductor cross section 4x 2x 0.14 mm² AWG signal line 26 Conductor structure signal line 7x 0.16 mm Core diameter including insulation 0.96 mm Wire colors white/blue-blue, white/orange-orange, white/green-green, white/brownbrown Twisted pairs 2 cores to the pair Overall twist 4 pairs for core Shielding Aluminum-coated foil, tinned copper braided shield Optical shield covering 70 % External sheath, color water blue RAL 5021 Outer sheath thickness 1.05 mm External cable diameter D 6.4 mm ±0.2 mm Minimum bending radius, fixed installation 4xD Minimum bending radius, flexible installation 8xD 09/09/2019   Page 2 / 8 https://www.phoenixcontact.com/us/products/1406118 Network cable - NBC-MS/ 2,0-94B/MS SCO US - 1406118 Technical data Cable Tensile strength GRP ≤ 100 N Cable weight 47 kg/km Outer sheath, material PUR Material conductor insulation Foamed PE Conductor material Bare Cu litz wires Insulation resistance ≥ 500 MΩ*km Loop resistance ≤ 290.00 Ω/km Cable capacity 48 nF/km (at 1 kHz) Wave impedance 100 Ω ±5 Ω (at 100 MHz) Near end crosstalk attenuation (NEXT) 71.3 dB (with 1 MHz) 62.3 dB (at 4 МHz) 56.3 dB (at 10 MHz) 53.2 dB (at 16 MHz) 51.8 dB (at 20 МHz) 48.9 dB (at 31.25 МHz) 44.4 dB (at 62.5 МHz) 41.3 dB (at 100 MHz) Power-summated near end crosstalk attenuation (PSNEXT) 62.3 dB (with 1 MHz) 53.3 dB (at 4 МHz) 47.3 dB (at 10 MHz) 44.2 dB (at 16 MHz) 42.8 dB (at 20 МHz) 39.9 dB (at 31.25 МHz) 35.4 dB (at 62.5 МHz) 32.3 dB (at 100 MHz) Attenuation 3.2 dB (with 1 MHz) 6 dB (at 4 МHz) 9.5 dB (at 10 MHz) 12.1 dB (at 16 MHz) 13.6 dB (at 20 МHz) 17.1 dB (at 31.25 МHz) 24.8 dB (at 62.5 МHz) 32 dB (at 100 MHz) Return loss (RL) 23 dB (at 4 МHz) 24.1 dB (at 8 МHz) 25 dB (at 10 MHz) 25 dB (at 16 MHz) 09/09/2019   Page 3 / 8 https://www.phoenixcontact.com/us/products/1406118 Network cable - NBC-MS/ 2,0-94B/MS SCO US - 1406118 Technical data Cable 25 dB (at 20 МHz) 23.6 dB (at 31.25 МHz) 21.5 dB (at 62.5 МHz) 20.1 dB (at 100 MHz) Signal runtime 5.3 ns/m Coupling resistance ≤ 100.00 mΩ/m (at 10 MHz) Nominal voltage, cable ≤ 100 V Test voltage Core/Core 700 V (50 Hz, 1 min.) Test voltage Core/Shield 700 V (50 Hz, 1 min.) Flame resistance according to IEC 60332-1-2 Halogen-free according to IEC 60754-1 Resistance to oil according to EN 60811-2-1 Ambient temperature (operation) -40 °C ... 80 °C (cable, fixed installation) -20 °C ... 80 °C (cable, flexible installation) Ambient temperature (installation) -20 °C ... 80 °C Ambient temperature (storage/transport) -20 °C ... 80 °C Environmental Product Compliance Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings 09/09/2019   Page 4 / 8 https://www.phoenixcontact.com/us/products/1406118 Network cable - NBC-MS/ 2,0-94B/MS SCO US - 1406118 Schematic diagram Pin assignment M12 plug, 8-pos., A-coded, view plug side 09/09/2019   Page 5 / 8 https://www.phoenixcontact.com/us/products/1406118 Network cable - NBC-MS/ 2,0-94B/MS SCO US - 1406118 Dimensional drawing Plug, M12 x 1, straight, shielded Circuit diagram Contact assignment of the M12 plugs 09/09/2019   Page 6 / 8 https://www.phoenixcontact.com/us/products/1406118 Network cable - NBC-MS/ 2,0-94B/MS SCO US - 1406118 Cable cross section Ethernet, flexible, CAT5 [94B] Classifications eCl@ss eCl@ss 4.0 24010400 eCl@ss 4.1 24010400 eCl@ss 5.0 19030300 eCl@ss 5.1 19030300 eCl@ss 6.0 27061800 eCl@ss 7.0 27061801 eCl@ss 8.0 27061801 09/09/2019   Page 7 / 8 https://www.phoenixcontact.com/us/products/1406118 Network cable - NBC-MS/ 2,0-94B/MS SCO US - 1406118 Classifications eCl@ss eCl@ss 9.0 27060308 ETIM ETIM 3.0 EC001855 ETIM 4.0 EC001855 ETIM 5.0 EC002599 ETIM 6.0 EC000830 ETIM 7.0 EC003249 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 09/09/2019   Page 8 / 8
