1406131

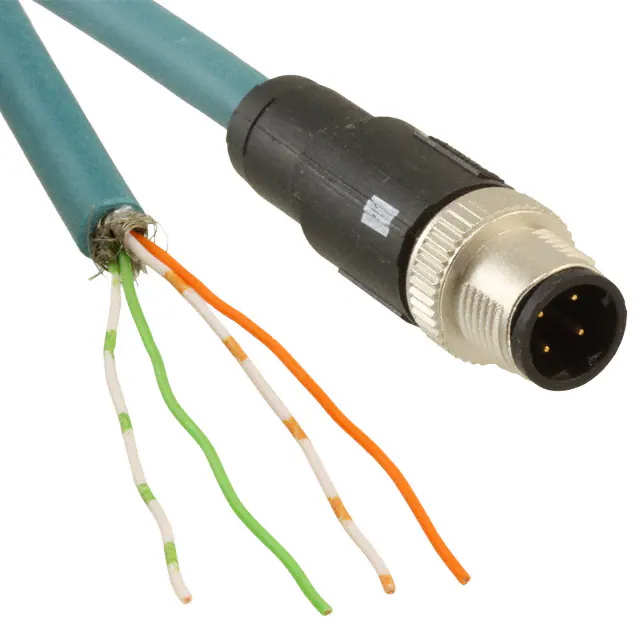

https://www.phoenixcontact.com/us/products/1406131 Network cable - NBC-MSD/ 2,0-93E SCO US - 1406131 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Network cable, Ethernet, 4-position, PUR halogen-free, water blue RAL 5021, shielded, Plug Straight M12 SPEEDCON / IP67, Coding: D, on Free cable end, Cable length: 2 m         Key commercial data Packing unit 1 PCE GTIN Custom tariff number 85444210 Country of origin GERMANY Technical data Dimensions Length of cable 2m General data Rated current at 40°C 4A Rated voltage 250 V Number of positions 4 Signal type/category Ethernet CAT5 (IEC 11801:2002) Signal type/category Ethernet CAT5e (TIA 568B:2001) Standards/regulations M12 plug-in connector IEC 61076-2-101 Degree of protection IP65 Degree of protection IP67 Characteristics head 1 Head design Plug Straight M12 SPEEDCON / IP67 Coding D (Data) 12.07.2013   Page 1 / 4 https://www.phoenixcontact.com/us/products/1406131 Network cable - NBC-MSD/ 2,0-93E SCO US - 1406131 Technical data Characteristics head 2 Head design Free cable end Line characteristics Cable type Ethernet Cable type (abbreviation) 93E UL AWM style 20963 (80°C/30 V) Signal type/category Ethernet CAT5 (IEC 11801:2002) Signal type/category Ethernet CAT5e (TIA 568B:2001) Cable structure 2x2xAWG26/7; SF/UTP Conductor cross section 2x 2x 0.14 mm² AWG signal line 26 Conductor structure signal line 7x 0.16 mm Core diameter including insulation 0.98 mm Wire colors white/orange-orange, white/green-green Twisted pairs 2 cores to the pair Overall twist Two pairs with two fillers to the core Shielding Aluminum-coated foil, tinned copper braided shield Optical shield covering 70 % External sheath, color water blue RAL 5021 External cable diameter D 6.4 mm ± 0.2 mm Minimum bending radius, fixed installation 4xD Minimum bending radius, flexible installation 8xD Tensile strength short-term/long-term ≤ 80N Cable weight 42 kg/km Outer sheath, material PUR Material conductor insulation Foamed PE Conductor material Bare Cu litz wires Insulation resistance ≥ 500 MΩ*km (at 20 °C) Conductor resistance ≤ 290 Ω/km (at 20 °C) Working capacitance 45 nF (At 1 kHz) Wave impedance 100 Ω ± 5 Ω (At 100 MHz) Signal runtime 5.3 ns/m Nominal voltage, cabel ≤ 100 V Nominal voltage, cabel 300 V (Outer cable sheath) Test voltage Core/Core 700 V (50 Hz, 1 min.) Test voltage Core/Shield 700 V (50 Hz, 1 min.) Flame resistance IEC 60332-1-2 Halogen-free According to IEC 60754-1 12.07.2013   Page 2 / 4 https://www.phoenixcontact.com/us/products/1406131 Network cable - NBC-MSD/ 2,0-93E SCO US - 1406131 Technical data Line characteristics Resistance to oil in accordance with DIN EN 60811-2-1 Ambient temperature (operation) -40 °C ... 80 °C (cable, fixed installation) Ambient temperature (operation) -20 °C ... 80 °C (cable, flexible installation) Ambient temperature (installation) -20 °C ... 80 °C Ambient temperature (storage/transport) -20 °C ... 80 °C Classifications ETIM ETIM 3.0 EC001855 ETIM 4.0 EC001855 ETIM 5.0 EC001855 UNSPSC UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 eCl@ss eCl@ss 4.0 27060306 eCl@ss 4.1 27060306 eCl@ss 5.0 27061801 eCl@ss 5.1 27061801 eCl@ss 6.0 27061801 eCl@ss 7.0 27061801 Drawings 12.07.2013   Page 3 / 4 https://www.phoenixcontact.com/us/products/1406131 Network cable - NBC-MSD/ 2,0-93E SCO US - 1406131 Schematic diagram 4 3 1 2 Cable cross section Pin assignment M12 male connector, 4-pos., D-coded, male side Ethernet [93E] Dimensioned drawing Circuit diagram Ø12 M12 Ø14,8 47,3 Plug, M12 x 1, straight, shielded 1 WH/OG 3 OG 2 WH/GN 4 GN Contact assignment of the M12 plug © Phoenix Contact 2013 - all rights reserved http://www.phoenixcontact.com 12.07.2013   Page 4 / 4
