1406178

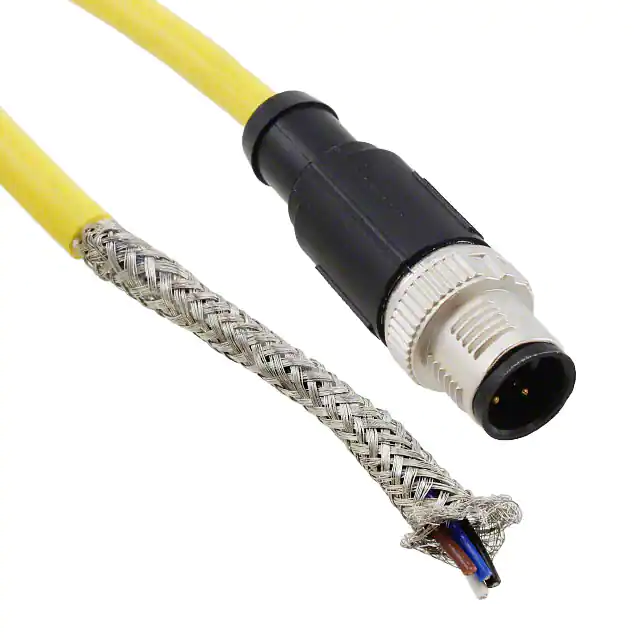

https://www.phoenixcontact.com/us/products/1406178 Sensor/Actuator cable - SAC-4P-MS/ 5,0-542 SH SCO BK - 1406178 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/Actuator cable, 4-position, PVC, yellow RAL 1021, shielded, Plug straight M12 SPEEDCON, A-coded, on free cable end, Cable length: 5 m Key Commercial Data Packing unit 1 pc Weight per Piece (excluding packing) 260.0 g Custom tariff number 85444290 Country of origin United States Technical data Dimensions Length of cable 5m Ambient conditions Ambient temperature (operation) -25 °C ... 90 °C (Plug / socket) Degree of protection IP65 IP67 IP68 General Rated current at 40°C 4A Rated voltage 250 V Number of positions 4 Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Status display No 03/07/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/1406178 Sensor/Actuator cable - SAC-4P-MS/ 5,0-542 SH SCO BK - 1406178 Technical data General Protective circuit/component Unwired Overvoltage category II Degree of pollution 3 Insertion/withdrawal cycles ≥ 100 Torque 0.4 Nm (M12 connector) Material Flammability rating according to UL 94 HB Contact material CuSn Contact surface material Ni/Au Contact carrier material TPU GF Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, nickel-plated Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Flammability rating according to UL 94 HB Cable Cable type PVC yellow 105 °C Cable type (abbreviation) 542 UL AWM style 2517 (105°C/300 V) AWG signal line 22 Core diameter including insulation 1.27 mm ±0.03 mm Wire colors brown, blue, black, white Overall twist 4 wires, twisted Shielding Tinned copper braided shield Optical shield covering 85 % External sheath, color yellow External cable diameter D 5.5 mm ±0.2 mm Minimum bending radius, flexible installation 12 x D Cable weight 48 kg/km Outer sheath, material PVC Material conductor insulation PVC Conductor material Tin-plated Cu litz wires Nominal voltage, cable 300 V Special properties UL standards PLTC and ITC Other resistance UV resistant 03/07/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/1406178 Sensor/Actuator cable - SAC-4P-MS/ 5,0-542 SH SCO BK - 1406178 Technical data Cable Ambient temperature (operation) -30 °C ... 105 °C (cable, fixed installation) Classifications eCl@ss eCl@ss 4.0 27060306 eCl@ss 4.1 27060306 eCl@ss 5.0 27061801 eCl@ss 5.1 27061801 eCl@ss 6.0 27279218 eCl@ss 7.0 27279218 eCl@ss 8.0 27279218 ETIM ETIM 3.0 EC001855 ETIM 4.0 EC001855 ETIM 5.0 EC001855 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Approvals Approvals Approvals UL Listed / cUL Listed / cULus Listed Ex Approvals Approvals submitted 03/07/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/1406178 Sensor/Actuator cable - SAC-4P-MS/ 5,0-542 SH SCO BK - 1406178 Approvals Approval details UL Listed      Nominal current IN 4A Nominal voltage UN 300 V cUL Listed      Nominal current IN 4A Nominal voltage UN 300 V cULus Listed  Drawings Schematic diagram 4 Dimensional drawing 3 Ø11 2 M12 1 Ø14,8 46,8 Pin assignment M12 plug, 4-pos., A-coded, view plug side M12 x 1 plug, straight 03/07/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/1406178 Sensor/Actuator cable - SAC-4P-MS/ 5,0-542 SH SCO BK - 1406178 Circuit diagram 1 BN 2 WH 4 BK 3 BU Contact assignment of the M12 plug Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 03/07/2016   Page 5 / 5
