1406214

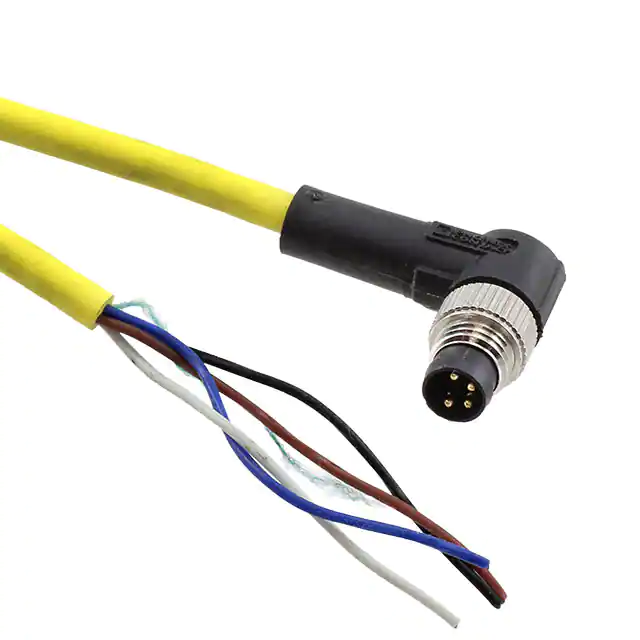

https://www.phoenixcontact.com/us/products/1406214 Sensor/actuator cable - SAC-4P-M8MR/ 2,0-542 BK - 1406214 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator cable, 4-position, PVC, yellow, Plug angled M8, on free cable end, cable length: 2 m Key Commercial Data Packing unit 1 STK GTIN GTIN 4046356798365 Weight per Piece (excluding packing) 1.000 g Custom tariff number 85444290 Country of origin United States Technical data Dimensions Length of cable 2m Ambient conditions Ambient temperature (operation) -25 °C ... 90 °C (Plug / socket) Degree of protection IP65 IP67 IP68 General Rated current at 40°C 4A Rated voltage 48 V AC 60 V DC 09/06/2018   Page 1 / 6 https://www.phoenixcontact.com/us/products/1406214 Sensor/actuator cable - SAC-4P-M8MR/ 2,0-542 BK - 1406214 Technical data General Number of positions 4 Insulation resistance ≥ 100 MΩ Coding A - standard Status display No Protective circuit/component Unwired Overvoltage category II Degree of pollution 3 Insertion/withdrawal cycles ≥ 100 Torque 0.2 Nm (M8 connectors) Material Flammability rating according to UL 94 HB Contact material CuSn Contact surface material Ni/Au Contact carrier material TPU GF Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, nickel-plated Standards and Regulations Flammability rating according to UL 94 HB Cable Cable type PVC yellow 105 °C Cable type (abbreviation) 542 UL AWM style 2517 (105 °C / 300 V) AWG signal line 24 Conductor structure signal line 32x 1.10 mm Core diameter including insulation 1.12 mm ±0.03 mm Wire colors brown, blue, black, white Overall twist 4 wires, twisted External sheath, color yellow External cable diameter D 4.4 mm ±0.2 mm Minimum bending radius, flexible installation 8xD Cable weight 25 kg/km Outer sheath, material PVC Material conductor insulation PVC Conductor material Tin-plated Cu litz wires Insulation resistance ≥ (550 M Ohms/m @ 500V) Conductor resistance max. 79.7 Ω/km (20 °C) 09/06/2018   Page 2 / 6 https://www.phoenixcontact.com/us/products/1406214 Sensor/actuator cable - SAC-4P-M8MR/ 2,0-542 BK - 1406214 Technical data Cable Nominal voltage, cable 300 V Flame resistance FT4 Other resistance UV resistant Ambient temperature (operation) -30 °C ... 105 °C (cable, fixed installation) -5 °C ... 105 °C (cable, flexible installation) Environmental Product Compliance REACh SVHC Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Schematic diagram 2 4 1 3 Cable cross section Pin assignment M8 plug, 4-pos., view male side PVC yellow 105 °C [542] Dimensional drawing Circuit diagram Ø10 Ø7,5 23,9 M8 1 BN 2 WH 4 BK 3 BU 27,9 Contact assignment of the M8 plug M8 x 1 male plug, angled version 09/06/2018   Page 3 / 6 https://www.phoenixcontact.com/us/products/1406214 Sensor/actuator cable - SAC-4P-M8MR/ 2,0-542 BK - 1406214 Schematic diagram Layout of connector pin assignments Classifications eCl@ss eCl@ss 4.0 27060306 eCl@ss 4.1 27060306 eCl@ss 5.0 27061801 eCl@ss 5.1 27061800 eCl@ss 6.0 27279200 eCl@ss 7.0 27279218 eCl@ss 8.0 27279218 eCl@ss 9.0 27060311 ETIM ETIM 3.0 EC001855 ETIM 4.0 EC001855 ETIM 5.0 EC001855 ETIM 6.0 EC001855 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Approvals Approvals 09/06/2018   Page 4 / 6 https://www.phoenixcontact.com/us/products/1406214 Sensor/actuator cable - SAC-4P-M8MR/ 2,0-542 BK - 1406214 Approvals Approvals UL Listed / cUL Listed / cULus Listed Ex Approvals Approval details UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 125 V Nominal current IN 4A cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 125 V Nominal current IN 4A cULus Listed      FILE E 221474  FILE E 221474   Accessories Accessories Protective cap Sealing cap - PROT-M 8 FS-PA-CHAIN - 1430857 M8 sealing cap made of plastic with fixing band for sensor cables, for M8 plugs     Screwdriver tools 09/06/2018   Page 5 / 6 https://www.phoenixcontact.com/us/products/1406214 Sensor/actuator cable - SAC-4P-M8MR/ 2,0-542 BK - 1406214 Accessories Tool - SAC BIT M8-D10 - 1208461 Nut for assembling M8 connectors with longitudinal knurl and a knurl diameter of 10 mm, for 4 mm hexagonal drive     Torque tool Torque screwdriver - TSD 02 SAC - 1208487 Torque screwdriver, with preset torque of 0.2 Nm and 4 mm hexagonal drive for M8 connectors     Phoenix Contact 2018 © - all rights reserved http://www.phoenixcontact.com 09/06/2018   Page 6 / 6
