1406237

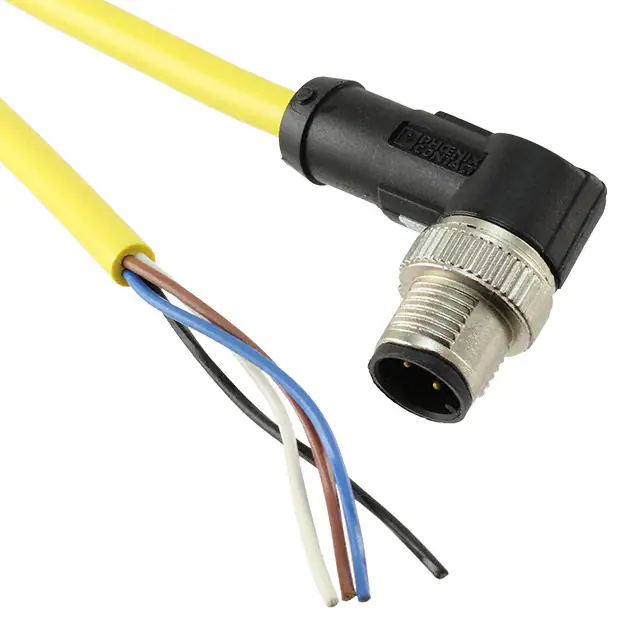

https://www.phoenixcontact.com/us/products/1406237 Sensor/Actuator cable - SAC-4P-MR/ 2,0-542 SCO BK - 1406237 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/Actuator cable, 4-position, PVC, Plug angled M12 SPEEDCON, A-coded, on free cable end, Cable length: 2 m       Key Commercial Data Packing unit 1 pc Weight per Piece (excluding packing) 110.0 g Custom tariff number 85444290 Country of origin United States Technical data Dimensions Length of cable 2m Ambient conditions Ambient temperature (operation) -25 °C ... 90 °C (Plug / socket) Degree of protection IP65 IP67 IP68 General Rated current at 40°C 4A Rated voltage 250 V Number of positions 4 Insulation resistance ≥ 10 MΩ Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Status display No 12/01/2015   Page 1 / 5 https://www.phoenixcontact.com/us/products/1406237 Sensor/Actuator cable - SAC-4P-MR/ 2,0-542 SCO BK - 1406237 Technical data General Protective circuit/component Unwired Overvoltage category II Pollution degree 3 Insertion/withdrawal cycles ≥ 100 Torque 0.4 Nm (M12 connector) Material Flammability rating according to UL 94 HB Contact material CuSn Contact surface material Ni/Au Contact carrier material TPU GF Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, nickel-plated Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Flammability rating according to UL 94 HB Cable Cable type PVC yellow 105 °C Cable type (abbreviation) 542 UL AWM style 2517 (105°C/300 V) AWG signal line 22 Core diameter including insulation 1.27 mm ±0.03 mm Wire colors brown, blue, black, white Overall twist 4 wires, twisted External sheath, color yellow External cable diameter D 5 mm ±0.2 mm Minimum bending radius, flexible installation 8xD Cable weight 36 kg/km Outer sheath, material PVC Material conductor insulation PVC Conductor material Tin-plated Cu litz wires Nominal voltage, cable 300 V Special properties UL standards PLTC and ITC Other resistance UV resistant Ambient temperature (operation) -30 °C ... 105 °C (cable, fixed installation) 12/01/2015   Page 2 / 5 https://www.phoenixcontact.com/us/products/1406237 Sensor/Actuator cable - SAC-4P-MR/ 2,0-542 SCO BK - 1406237 Classifications eCl@ss eCl@ss 4.0 27060306 eCl@ss 4.1 27060306 eCl@ss 5.0 27061801 eCl@ss 5.1 27061801 eCl@ss 6.0 27061801 eCl@ss 7.0 27061801 eCl@ss 8.0 27279218 ETIM ETIM 3.0 EC001855 ETIM 4.0 EC001855 ETIM 5.0 EC001855 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Approvals Approvals Approvals UL Listed / cUL Listed / cULus Listed Ex Approvals Approvals submitted Approval details 12/01/2015   Page 3 / 5 https://www.phoenixcontact.com/us/products/1406237 Sensor/Actuator cable - SAC-4P-MR/ 2,0-542 SCO BK - 1406237 Approvals UL Listed      Nominal current IN 4A Nominal voltage UN 300 V cUL Listed      Nominal current IN 4A Nominal voltage UN 300 V cULus Listed  Drawings Schematic diagram 4 Dimensional drawing 3 Ø14,8 M12 2 30,2 1 Ø11 Pin assignment M12 plug, 4-pos., A-coded, view plug side 34,5 M12 x 1 male plug, angled 12/01/2015   Page 4 / 5 https://www.phoenixcontact.com/us/products/1406237 Sensor/Actuator cable - SAC-4P-MR/ 2,0-542 SCO BK - 1406237 Circuit diagram 1 BN 2 WH 4 BK 3 BU Contact assignment of the M12 plugs Phoenix Contact 2015 © - all rights reserved http://www.phoenixcontact.com 12/01/2015   Page 5 / 5
