1406396

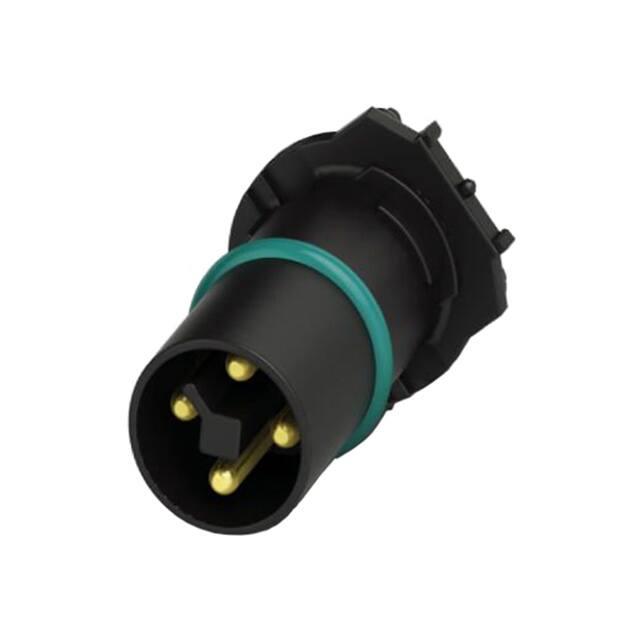

https://www.phoenixcontact.com/us/products/1406396 Flush-type connector - SACC-CI-M12MST-4CON-L180 THR - 1406396 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Flush-type connector, Universal, 4-position, PlugLink:straight, T power, PCB mounting, THR solder connection Product Features ■ ■ ■ ■ ■ ■ For compact devices: transmit high power in a confined space Reduced mounting costs thanks to two-piece device connector All common pin assignments and codings available Easy device integration thanks to mechanical port screw connections with threaded attachment, press-in contour or direct integration in the front plate Additional gasket for the device when not plugged in Packaging available for automated pick and place assembly Key Commercial Data Packing unit 1 pc Minimum order quantity 60 pc Weight per Piece (excluding packing) 5.667 g Custom tariff number 85366990 Country of origin Germany Technical data Ambient conditions Ambient temperature (operation) -25 °C ... 105 °C -40 °C ... 105 °C (without mechanical actuation) Degree of protection IP67 General Note The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using 04/27/2016   Page 1 / 4 https://www.phoenixcontact.com/us/products/1406396 Flush-type connector - SACC-CI-M12MST-4CON-L180 THR - 1406396 Technical data General a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Rated current at 40°C 12 A Rated voltage 60 V Rated surge voltage 1.5 kV Number of positions 4 Insulation resistance ≥ 100 MΩ Coding T power Standards/regulations M12 connector Signal type/category Universal Overvoltage category III Degree of pollution 3 Connection method THR solder connection Insertion/withdrawal cycles > 100 Mounting type PCB mounting Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Au Contact carrier material PA4T Sealing material FKM Standards and Regulations Standard designation M12 connector Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 27140815 eCl@ss 4.1 27140815 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 7.0 27449001 eCl@ss 8.0 27440103 eCl@ss 9.0 27440102 04/27/2016   Page 2 / 4 https://www.phoenixcontact.com/us/products/1406396 Flush-type connector - SACC-CI-M12MST-4CON-L180 THR - 1406396 Classifications ETIM ETIM 3.0 EC002061 ETIM 4.0 EC002062 ETIM 5.0 EC002061 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Approvals Approvals Approvals EAC / UL Listed / cUL Listed / EAC / cULus Listed Ex Approvals Approvals submitted Approval details EAC  UL Listed      mm²/AWG/kcmil 16 Nominal current IN 12 A Nominal voltage UN 63 V 04/27/2016   Page 3 / 4 https://www.phoenixcontact.com/us/products/1406396 Flush-type connector - SACC-CI-M12MST-4CON-L180 THR - 1406396 Approvals cUL Listed      mm²/AWG/kcmil 16 Nominal current IN 12 A Nominal voltage UN 63 V EAC  cULus Listed  Drawings Schematic diagram 2,5 1,5 Ø12,5 2 Ø1,3 1 18,8 3 ±0,05 4 Dimensional drawing Connector pin assignment of M12 plug, 4-pos., Tcoded, view of pin side M12 flush-type connector Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 04/27/2016   Page 4 / 4
