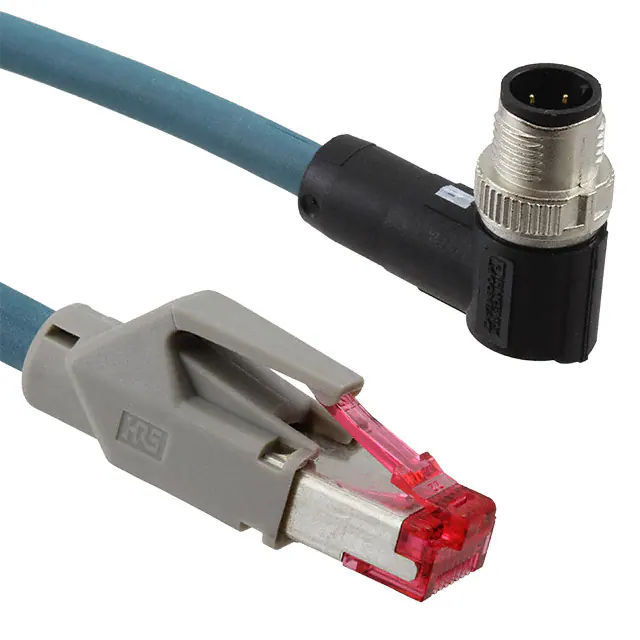

https://www.phoenixcontact.com/us/products/1408742 Network cable - NBC-MRD/ 0,5-93E/R4AC SCO US - 1408742 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Network cable, Ethernet CAT5 (100 Mbps), 4-position, PUR halogen-free, water blue RAL 5021, shielded, Plug angled M12 SPEEDCON / IP67, Coding: D, on Plug straight RJ45 / IP20, Cable length: 0.5 m Key Commercial Data Packing unit 1 STK Weight per Piece (excluding packing) 51.420 g Custom tariff number 85444210 Country of origin United States Technical data Dimensions Length of cable 0.5 m Ambient conditions Degree of protection IP65 (M12 connector) IP67 (M12 connector) IP20 (RJ45 connector) Ambient temperature (operation) -25 °C ... 85 °C (M12 connector) General data Rated current at 40°C 1A Rated voltage 50 V Number of positions 4 Signal type/category Ethernet CAT5 (IEC 11801), 100 Mbps Standards/regulations M12 connector IEC 61076-2-101 Characteristics head 1 Head type Plug angled M12 SPEEDCON / IP67 10/23/2016   Page 1 / 4 https://www.phoenixcontact.com/us/products/1408742 Network cable - NBC-MRD/ 0,5-93E/R4AC SCO US - 1408742 Technical data Characteristics head 1 Coding D (Data) Characteristics head 2 Head type Plug straight RJ45 / IP20 Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Cable Cable type PUR ETHERNET 2x2 FLEX Cable type (abbreviation) 93E UL AWM style 20963 (80°C/30 V) Signal type/category Ethernet CAT5 (IEC 11801), 100 Mbps Cable structure 2x2xAWG26/7; SF/UTP Conductor cross section 2x 2x 0.14 mm² AWG signal line 26 Conductor structure signal line 7x 0.16 mm Core diameter including insulation 0.98 mm Wire colors white/orange-orange, white/green-green Twisted pairs 2 cores to the pair Overall twist Two pairs with two fillers to the core Shielding Aluminum-coated foil, tinned copper braided shield Optical shield covering 70 % External sheath, color water blue RAL 5021 Outer sheath thickness 1.2 mm External cable diameter D 6.4 mm ±0.2 mm Minimum bending radius, fixed installation 4xD Minimum bending radius, flexible installation 8xD Tensile strength short-term/long-term ≤ 80N Cable weight 42 kg/km Outer sheath, material PUR Material conductor insulation Foamed PE Conductor material Bare Cu litz wires Standards/specifications Electrical requirements EN 50288-2-2 Insulation resistance ≥ 500 MΩ*km Loop resistance ≤ 290 Ω (per km) Cable capacity approx. 45 nF/km (at 1 kHz) Wave impedance 100 Ω ±5 Ω (at 100 MHz) 10/23/2016   Page 2 / 4 https://www.phoenixcontact.com/us/products/1408742 Network cable - NBC-MRD/ 0,5-93E/R4AC SCO US - 1408742 Technical data Cable Signal runtime 5.3 ns/m Coupling resistance ≤ 100.00 mΩ/m (At 10 MHz) Nominal voltage, cable ≤ 100 V (Peak value, not for high-power applications) Test voltage Core/Core 700 V (50 Hz, 1 min.) Test voltage Core/Shield 700 V (50 Hz, 1 min.) Flame resistance According to IEC 60332-1-2 in acc. to UL VW1 Halogen-free According to IEC 60754-1 Resistance to oil according to EN 60811-2-1 Ambient temperature (operation) -40 °C ... 80 °C (cable, fixed installation) -20 °C ... 80 °C (cable, flexible installation) Ambient temperature (installation) -20 °C ... 80 °C Ambient temperature (storage/transport) -20 °C ... 80 °C Drawings Schematic diagram Schematic diagram 8 765 432 1 Pin assignment M12 male connector, 4-pos., D-coded, male side Connector pin assignment plug RJ45 Cable cross section Dimensional drawing 44,65 PUR ETHERNET 2x2 FLEX [93E] 13,4 RJ45 connector, IP20 10/23/2016   Page 3 / 4 https://www.phoenixcontact.com/us/products/1408742 Network cable - NBC-MRD/ 0,5-93E/R4AC SCO US - 1408742 Circuit diagram RJ45 M12 1 1 3 2 2 3 4 6 Contact assignment of the M12 and RJ45 plug Approvals Approvals Approvals UL Listed Ex Approvals Approval details UL Listed   http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 335024     Nominal current IN 1.5 A Nominal voltage UN 30 V Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 10/23/2016   Page 4 / 4
