1408744

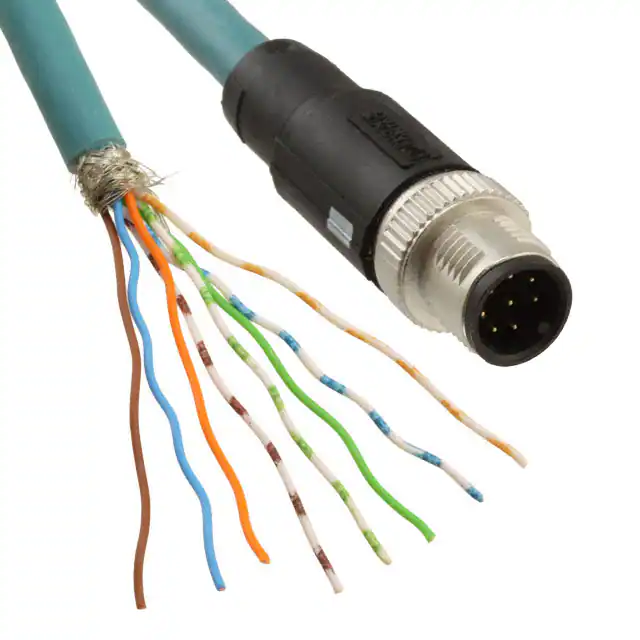

https://www.phoenixcontact.com/us/products/1408744 Network cable - NBC-MS/ 10,0-94B SCO US - 1408744 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Network cable, Ethernet, 8-position, PUR halogen-free, water blue RAL 5021, shielded, Plug Straight M12 SPEEDCON / IP67, Coding: A, on Free cable end, Cable length: 10 m       Key commercial data Packing unit 1 PCE GTIN Custom tariff number 85444210 Country of origin GERMANY Technical data Dimensions Length of cable 10 m General data Rated current at 40°C 2A Rated voltage 30 V Number of positions 8 Signal type/category Ethernet CAT5 (IEC 11801:2002) Signal type/category Ethernet CAT5e (TIA 568B:2001) Standards/regulations M12 plug-in connector IEC 61076-2-101 Degree of protection IP65 Degree of protection IP67 Characteristics head 1 Head design Plug Straight M12 SPEEDCON / IP67 Coding A (Standard) 15.07.2013   Page 1 / 6 https://www.phoenixcontact.com/us/products/1408744 Network cable - NBC-MS/ 10,0-94B SCO US - 1408744 Technical data Characteristics head 2 Head design Free cable end Line characteristics Cable type Ethernet Cable type (abbreviation) 94B UL AWM style 20963 (80 °C / 60 V) Signal type/category Ethernet CAT5 (IEC 11801:2002) Signal type/category Ethernet CAT5e (TIA 568B:2001) Cable structure 4x2xAWG26/7; SF/UTP Conductor cross section 4x 2x 0.14 mm² AWG signal line 26 Conductor structure signal line 7x 0.16 mm Core diameter including insulation 0.98 mm Thickness, insulation 0.25 mm (signal line) Thickness, insulation 1 mm (Outer cable sheath) Wire colors white/blue-blue, white/orange-orange, white/green-green, white/brownbrown Twisted pairs 2 cores to the pair Overall twist 4 pairs Shielding Aluminum-coated foil, tinned copper braided shield Optical shield covering 70 % External sheath, color water blue RAL 5021 External cable diameter D 6.4 mm ± 0.2 mm Smallest bending radius, fixed installation 25.6 mm Smallest bending radius, movable installation 51.2 mm Tensile strength short-term/long-term ≤ 100 N Cable weight 47 kg/km Outer sheath, material PUR Material conductor insulation PE Conductor material Bare Cu litz wires Insulation resistance ≥ 500 MΩ*km (at 20 °C) Conductor resistance ≤ 290 Ω/km (at 20 °C) Working capacitance 48 nF (At 1 kHz) Wave impedance 100 Ω ± 5 Ω (At 100 MHz) Signal runtime 5.3 ns/m Coupling resistance ≤ 100.00 mΩ/m (At 10 MHz) Nominal voltage, cabel ≤ 100 V (at 20 °C) Nominal voltage, cabel 300 V (Outer cable sheath) 15.07.2013   Page 2 / 6 https://www.phoenixcontact.com/us/products/1408744 Network cable - NBC-MS/ 10,0-94B SCO US - 1408744 Technical data Line characteristics Test voltage Core/Core 700 V (50 Hz, 1 min.) Test voltage Core/Shield 700 V (50 Hz, 1 min.) Flame resistance IEC 60332-1-2 Halogen-free According to IEC 60754-1 Resistance to oil in accordance with DIN EN 60811-2-1 Ambient temperature (operation) -40 °C ... 80 °C (cable, fixed installation) Ambient temperature (operation) -20 °C ... 80 °C (cable, flexible installation) Ambient temperature (installation) -20 °C ... 80 °C Ambient temperature (storage/transport) -20 °C ... 80 °C Classifications eCl@ss eCl@ss 4.0 27060306 eCl@ss 4.1 27060306 eCl@ss 5.0 27061801 eCl@ss 5.1 27061801 eCl@ss 6.0 27061801 eCl@ss 7.0 27060308 ETIM ETIM 3.0 EC001855 ETIM 4.0 EC002599 ETIM 5.0 EC002599 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Drawings 15.07.2013   Page 3 / 6 https://www.phoenixcontact.com/us/products/1408744 Network cable - NBC-MS/ 10,0-94B SCO US - 1408744 Schematic diagram Cable cross section 5 6 4 8 7 1 3 2 Pin assignment M12 plug, 8-pos., A-coded, view plug side Ethernet [94B] Dimensioned drawing Ø12 M12 Ø14,8 47,3 Plug, M12 x 1, straight, shielded 15.07.2013   Page 4 / 6 https://www.phoenixcontact.com/us/products/1408744 Network cable - NBC-MS/ 10,0-94B SCO US - 1408744 Circuit diagram M12 6 WH/OG 4 OG 1 WH/BU 7 BU 5 WH/GN 8 GN 2 WH/BN 3 BN 15.07.2013   Page 5 / 6 Contact assignment of the M12 plug https://www.phoenixcontact.com/us/products/1408744 © Phoenix Contact 2013 - all rights reserved http://www.phoenixcontact.com 15.07.2013   Page 6 / 6
