1409211

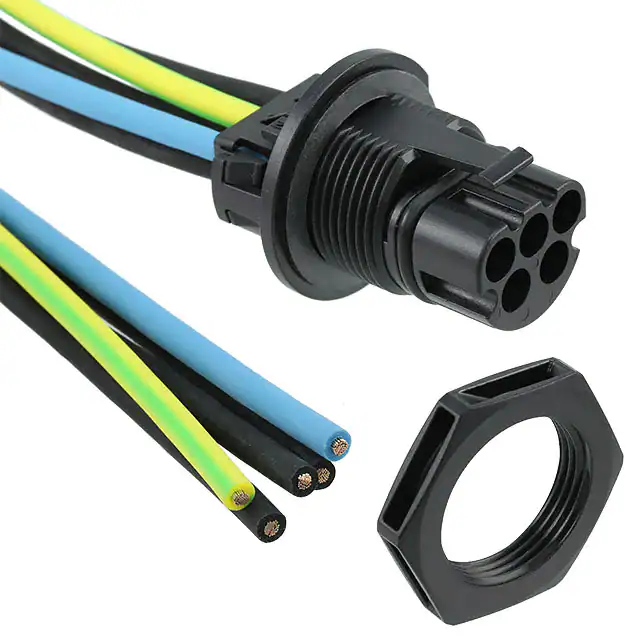

https://www.phoenixcontact.com/us/products/1409211 Device connector, rear mounting - PRC 5-FT25-MC2,5-150 - 1409211 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Circular connectors (device-side), Range of articles: PRC, Device connector, rear mounting, housing material: PPE, color: black, number of positions: 5, max. conductor cross section: 2.5 mm², nom. voltage: 690 V AC, rated current: 24 A, Connection method: Crimp connection, Type of contact: Pin, cable length: 150 Key Commercial Data Packing unit 1 pc Minimum order quantity 10 pc GTIN GTIN 4046356864336 Weight per Piece (excluding packing) 46.000 g Custom tariff number 85444290 Country of origin Poland Technical data General data Number of positions 5 Protection class II Color black Locking type Snap-in locking Insertion/withdrawal cycles 100 Pull-out-force 175 N ± 50 N Insertion force 40 N ±10 N Degree of protection (not plugged in) IP65 (Lengthwise waterproofing) Degree of protection (when plugged in) IP66 / IP68 (2m / 24h) Connection data 11/08/2019   Page 1 / 9 https://www.phoenixcontact.com/us/products/1409211 Device connector, rear mounting - PRC 5-FT25-MC2,5-150 - 1409211 Technical data Connection data Rated current 24 A (With 2.5 mm² conductor cross section in accordance with IEC 61984) 20 A (With 2.5 mm² conductor cross section in accordance with IEC 61535) 14.1 A (With 2.5 mm² conductor cross section and 85 °C in accordance with 2 PfG 1915) 24 A (With 2.5 mm²/AWG 14, in accordance with UL 2238) Nominal voltage ATD 690 V AC (in accordance with IEC 61984) 500 V AC (in accordance with IEC 61535/2 PfG 1915) 600 V AC (In accordance with UL 2238) Rated voltage (III/2) 690 V Torque 2.5 Nm ±0.1 Nm (Tightening torque nut) Wrench size, union nut 32 mm Type of contact Pin Conductor cross section flexible max. 2.5 mm² Material data Contact material Cu Contact surface material Ag Contact carrier material PPE Flammability rating according to UL 94 V0 Conductor data Fixed cable length 150 mm Single wire, material PVC Single wire, color blue, black, gray, brown, green/yellow Wire diameter incl. insulation 3.65 mm ±0.15 mm Standards and Regulations Flammability rating according to UL 94 V0 CE safety note • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. • Assembled products may not be manipulated or improperly opened. 11/08/2019   Page 2 / 9 https://www.phoenixcontact.com/us/products/1409211 Device connector, rear mounting - PRC 5-FT25-MC2,5-150 - 1409211 Technical data Standards and Regulations • Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). • When using the product in direct connection with third-party manufacturers, the user is responsible. • For operating voltages > 50 V AC, conductive connector housings must be grounded • Ensure that the protective or functional ground has been properly connected. • VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector • Observe the corresponding technical data. You will find information: o On the product o On the packing label o In the supplied documentation o Online at phoenixcontact.com/products under the product • Only use tools recommended by Phoenix Contact • The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. • Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products • Operate the connector only when it is fully plugged in. • Operate the connector only when it is fully plugged in and interlocked. • Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. • Observe the minimum bending radius of the cable. Lay the cable without twisting it. • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). Environmental Product Compliance Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings 11/08/2019   Page 3 / 9 https://www.phoenixcontact.com/us/products/1409211 Device connector, rear mounting - PRC 5-FT25-MC2,5-150 - 1409211 Schematic diagram Connector pin assignment 11/08/2019   Page 4 / 9 https://www.phoenixcontact.com/us/products/1409211 Device connector, rear mounting - PRC 5-FT25-MC2,5-150 - 1409211 Dimensional drawing Housing cutout 11/08/2019   Page 5 / 9 https://www.phoenixcontact.com/us/products/1409211 Device connector, rear mounting - PRC 5-FT25-MC2,5-150 - 1409211 Dimensional drawing Dimensional drawing Dimensional drawing Dimensional drawing 11/08/2019   Page 6 / 9 https://www.phoenixcontact.com/us/products/1409211 Device connector, rear mounting - PRC 5-FT25-MC2,5-150 - 1409211 Classifications eCl@ss eCl@ss 4.0 27260700 eCl@ss 4.1 27260700 eCl@ss 5.0 27260700 eCl@ss 5.1 27260700 eCl@ss 6.0 27260700 eCl@ss 7.0 27440102 eCl@ss 8.0 27440102 eCl@ss 9.0 27440103 ETIM ETIM 4.0 EC002061 ETIM 5.0 EC002061 ETIM 6.0 EC002061 UNSPSC UNSPSC 6.01 30211923 UNSPSC 7.0901 39121522 UNSPSC 11 39121522 UNSPSC 12.01 39121522 UNSPSC 13.2 39121413 Approvals Approvals Approvals DNV GL / TÜV Rheinland / TÜV Rheinland / UL Listed / cUL Listed / EAC / EAC / cULus Listed Ex Approvals Approval details DNV GL    https://approvalfinder.dnvgl.com/  TAE00002KM 11/08/2019   Page 7 / 9 https://www.phoenixcontact.com/us/products/1409211 Device connector, rear mounting - PRC 5-FT25-MC2,5-150 - 1409211 Approvals TÜV Rheinland    http://www.certipedia.com     Nominal voltage UN 690 V Nominal current IN 35 A mm²/AWG/kcmil 6 TÜV Rheinland    http://www.certipedia.com     Nominal voltage UN 500 V Nominal current IN 32 A mm²/AWG/kcmil 6 UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 600 V Nominal current IN 30 A mm²/AWG/kcmil 2.5 cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 600 V Nominal current IN 30 A mm²/AWG/kcmil 2.5 EAC      R 60117904-0002  R 60117904-0001  E221474-20150513  E221474-20150513  B.01742 11/08/2019   Page 8 / 9 https://www.phoenixcontact.com/us/products/1409211 Device connector, rear mounting - PRC 5-FT25-MC2,5-150 - 1409211 Approvals EAC      B.00767 cULus Listed       Accessories Accessories Protective cover Protective cap - PRC COVER M - 1409237 Protective cap for 3 and 5-pos. PRC device plugs     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 11/08/2019   Page 9 / 9
