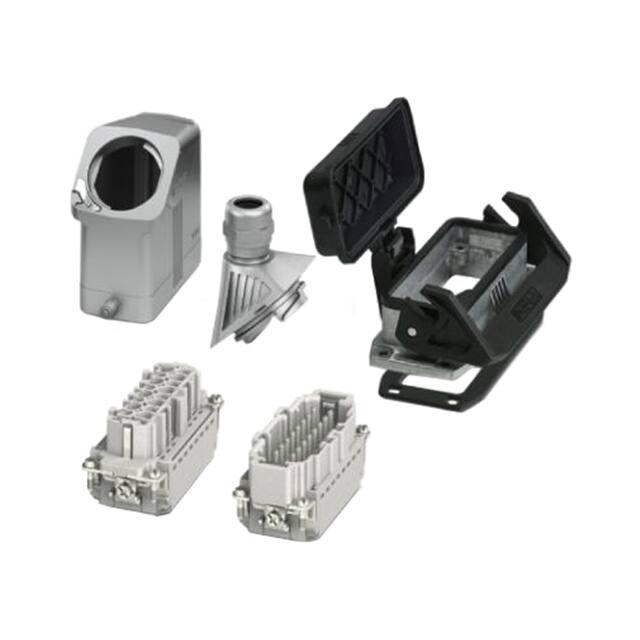

https://www.phoenixcontact.com/us/products/1411492 Connector set - HC-EVO-B16PT-BWSC-HH-M25ELC-AL - 1411492 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) EVO connector set, B16 series, metal housing, consisting of sleeve housing 1411461, panel mounting base 1411325, EVO screw connection 1411446, pin contact insert 1407732, socket contact insert 1407731 Key Commercial Data Packing unit 1 STK GTIN GTIN 4046356932929 Weight per Piece (excluding packing) 680.000 g Custom tariff number 85366990 Country of origin Germany Technical data General Number of positions 16+PE Design B16 Cable exit straight lateral Degree of protection for housing IP66 IP67 4X (UL 50) Connection method Push-in connection Rated voltage (III/3) 500 V Rated surge voltage 6 kV Rated current 16 A 11/22/2016   Page 1 / 4 https://www.phoenixcontact.com/us/products/1411492 Connector set - HC-EVO-B16PT-BWSC-HH-M25ELC-AL - 1411492 Technical data Standards and Regulations Flammability rating according to UL 94 V0 Drawings Schematic diagram Schematic diagram 9 1 1 9 10 2 2 10 11 3 3 11 12 4 4 12 13 5 5 13 14 6 6 14 15 7 7 15 16 8 8 16 Pin assignment, connection side, pin Pin assignment, connection side, socket Dimensional drawing 2 = 2,5 mm HC-B 06 PT 2 = 2,5 mm HC-B 10 PT 2 = 2,5 mm HC-B 16 PT 2 = 2,5 mm HC-B 24 PT 10 20 30 40 50 60 70 80 118,2 !129,7 Current strength [A] Diagram 32 28 24 20 16 12 8 4 0 0 90 100 110 Ambient temperature [°C] Derating diagram 103 32 114 53 Dimensional drawing Dimensional drawing 103 35 32 86 Ø4,5 Panel cutout 11/22/2016   Page 2 / 4 https://www.phoenixcontact.com/us/products/1411492 Connector set - HC-EVO-B16PT-BWSC-HH-M25ELC-AL - 1411492 Articles in set Contact insert - HC-B 16-I-PT-F - 1407731 HEAVYCON socket insert, B16 series, 16 + PE-pos., push-in connection     Contact insert - HC-B 16-I-PT-M - 1407732 HEAVYCON pin insert, B16 series, 16 + PE-pos., push-in connection     Housing - HC-STA-B16-BWSC-ELC-AL - 1411325 HEAVYCON B16 panel mounting base, with single locking latch, with plastic protective cover, with flat gasket, salt-waterresistant aluminum, conductive profile gasket.     Housing - HC-EVO-B16-HHFS-EL-AL - 1411461 HEAVYCON EVO sleeve housing, EMC version, without powder coating, with bayonet flange for EVO screw connection, B16, for single locking latch, height: 88 mm, without EVO screw connection.     Cable gland - HC-B-G-M25-EC-AL - 1411446 EVO EMC cable gland with bayonet locking, B series, size M25, cable diameter: 11 - 16 mm     11/22/2016   Page 3 / 4 https://www.phoenixcontact.com/us/products/1411492 Connector set - HC-EVO-B16PT-BWSC-HH-M25ELC-AL - 1411492 Approvals Approvals Approvals EAC / EAC Ex Approvals Approval details EAC   7500651.22.01.00246 EAC   EAC-Zulassung Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 11/22/2016   Page 4 / 4
