1411573

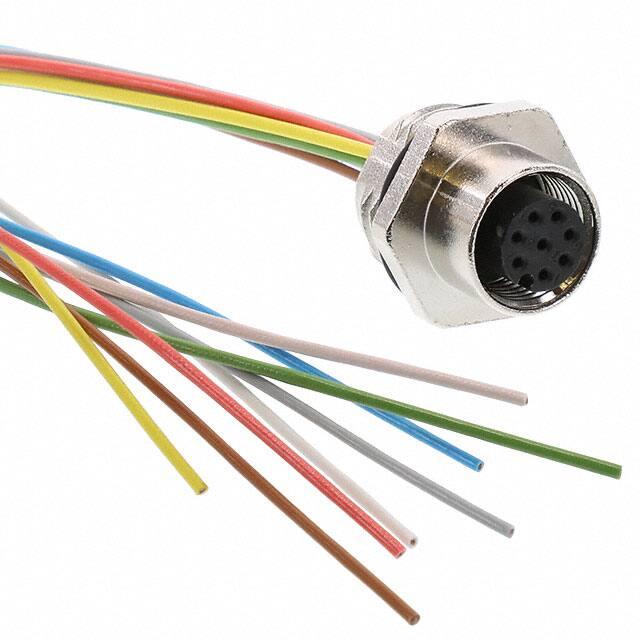

https://www.phoenixcontact.com/gb/products/1411573 Flush-type connector - SACC-E-M12FS-8P-M16XL/0,5 - 1411573 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Flush-type connector, Universal, 8-position, SocketLink:M12, A-coded, Front mounting, M16 x 1.5, Individual wires, Cable length: 0.5 m The figure shows the 12-pos. product version Why buy this product  Easy-to-install, optimized XL housing contour with wrench size 19  Tightening limitation for the O-ring gasket  Pre-assembled with litz wires for immediate use  Customer-specific assemblies and litz wire lengths available  Sealed on the litz wire side for optimum leak-tightness  All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design  For high transmission safety: shield connection to the housing with optional EMC nut Key Commercial Data Packing unit 1 STK GTIN GTIN 4046356936125 Weight per Piece (excluding packing) 28.200 g Custom tariff number 85366990 Country of origin Germany Note Made to Order (non-returnable) Technical data Dimensions Length of cable 0.5 m Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) Degree of protection IP67 12/22/2016   Page 1 / 5 https://www.phoenixcontact.com/gb/products/1411573 Flush-type connector - SACC-E-M12FS-8P-M16XL/0,5 - 1411573 Technical data General Note The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Rated current at 40°C 2A Rated voltage 30 V Rated surge voltage 0.8 kV Number of positions 8 Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Signal type/category Universal Status display No Overvoltage category II Degree of pollution 3 Connection method Individual wires Insertion/withdrawal cycles > 100 Torque 0.8 Nm ... 1.3 Nm (Installation-side) Mounting type Front mounting M16 x 1.5 Tightening limitation Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Au Contact carrier material PA 66 Material, knurls Zinc die-cast, nickel-plated Sealing material FKM Cable Cable type TPE litz wire Conductor cross section 0.25 mm² AWG signal line 24 Conductor structure signal line 14x 0.15 mm Core diameter including insulation 1.15 mm ±0.07 mm Thickness, insulation 0.21 mm (Core insulation) Wire colors Brown, blue, white, gray, pink, green, yellow, red Material conductor insulation TPE Conductor material Tin-plated Cu litz wires Standards/specifications M12 connector IEC 61076-2-101 Insulation resistance ≥ 20 MΩ*km Conductor resistance ≤ 80 mΩ/m Nominal voltage, cable 300 V 12/22/2016   Page 2 / 5 https://www.phoenixcontact.com/gb/products/1411573 Flush-type connector - SACC-E-M12FS-8P-M16XL/0,5 - 1411573 Technical data Cable Test voltage, cable 2000 V AC Ambient temperature (operation) -40 °C ... 85 °C (cable, fixed installation) -25 °C ... 85 °C (cable, flexible installation) Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Schematic diagram Dimensional drawing 20,1 18,5 10 Pin assignment M12 socket, 8-pos., A-coded, view female side M12x1 M16x1,5 L 19 2,8 M12 flush-type socket Circuit diagram 1 WH 2 BN 3 GN 4 YE 5 GY 6 PK 7 BU 8 RD Contact assignment of the M12 socket Classifications eCl@ss eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 8.0 27440103 12/22/2016   Page 3 / 5 https://www.phoenixcontact.com/gb/products/1411573 Flush-type connector - SACC-E-M12FS-8P-M16XL/0,5 - 1411573 Classifications eCl@ss eCl@ss 9.0 27440102 ETIM ETIM 4.0 EC002061 ETIM 5.0 EC002061 ETIM 6.0 EC002061 UNSPSC UNSPSC 13.2 39121413 Approvals Approvals Approvals EAC / cULus Recognized Ex Approvals Approval details EAC   cULus Recognized      B.01742  http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E221474-20140616     mm²/AWG/kcmil 24-22 Nominal current IN 2A Nominal voltage UN 30 V Accessories Accessories Flat nut 12/22/2016   Page 4 / 5 https://www.phoenixcontact.com/gb/products/1411573 Flush-type connector - SACC-E-M12FS-8P-M16XL/0,5 - 1411573 Accessories Flat nut - SACC-E-MU-M16 - 1504097 Flat nut with M16 thread     Protective cap Screw plug - PROT-M12 - 1680539 An M12 screw plug for the unoccupied M12 sockets of the sensor/actuator cable, boxes and flush-type connectors     Screw plug - PROT-M12 SH - 1503302 An M12 screw plug for the unoccupied M12 sockets of the shielded sensor/actuator cable, boxes and flush-type connectors     Screw plug - PROT-M12 FB - 1555538 M12 high-grade steel screw plug, for unoccupied M12 sockets of the sensor/actuator cables, boxes and flush-type connectors for the food industry     Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 12/22/2016   Page 5 / 5
