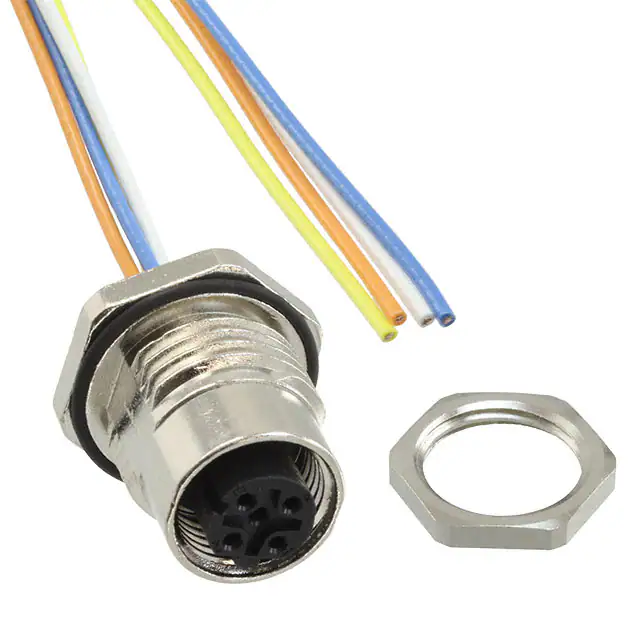

https://www.phoenixcontact.com/us/products/1411585 Bus system flat-type plug - SACC-DSI-M12FSD-4P-M16XL/0,5 - 1411585 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Bus system flat-type plug, 4-position, Socket, M12, D-coded, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.5 m The figure shows the 4-pos., Acoded version Why buy this product  Easy-to-install, optimized XL housing contour with wrench size 19  Tightening limitation for the O-ring gasket  Pre-assembled with litz wires for immediate use  Customer-specific assemblies and litz wire lengths available  Sealed on the litz wire side for optimum leak-tightness  All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design  For high transmission safety: shield connection to the housing with optional EMC nut Key Commercial Data Packing unit 1 STK GTIN GTIN 4046356935814 Weight per Piece (excluding packing) 20.000 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length of cable 0.5 m 03/05/2018   Page 1 / 5 https://www.phoenixcontact.com/us/products/1411585 Bus system flat-type plug - SACC-DSI-M12FSD-4P-M16XL/0,5 - 1411585 Technical data Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) Degree of protection IP67 General Note The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) Rated current at 40°C 4A Rated voltage 250 V Rated surge voltage 2.5 kV Number of positions 4 Insulation resistance ≥ 100 MΩ Coding D - data Standards/regulations M12 connector IEC 61076-2-101 Status display No Overvoltage category II Degree of pollution 3 Connection method Individual wires Insertion/withdrawal cycles > 100 Torque 0.8 Nm ... 1.3 Nm (Installation-side) Mounting type Rear mounting M16 x 1.5 With flat nut Assembly instructions Tightening limitation Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Au Contact carrier material PA 6.6 Material, knurls Zinc die-cast, nickel-plated Sealing material FKM Cable Cable type TPE litz wire Conductor cross section 0.34 mm² AWG signal line 22 03/05/2018   Page 2 / 5 https://www.phoenixcontact.com/us/products/1411585 Bus system flat-type plug - SACC-DSI-M12FSD-4P-M16XL/0,5 - 1411585 Technical data Cable Conductor structure signal line 7x 0.25 mm Core diameter including insulation 1.2 mm ±0.07 mm Thickness, insulation 0.21 mm Wire colors Yellow, orange, white, blue Material conductor insulation TPE Conductor material Tin-plated Cu litz wires Standards/specifications M12 connector IEC 61076-2-101 Insulation resistance ≥ 20 MΩ*km Conductor resistance ≤ 57.6 mΩ/m Transmission characteristics (category) CAT5 (IEC 11801:2002) Nominal voltage, cable 300 V Test voltage, cable 2000 V AC Ambient temperature (operation) -40 °C ... 85 °C (cable, fixed installation) -25 °C ... 85 °C (cable, flexible installation) Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Schematic diagram Dimensional drawing L 20,4 18,8 M12x1 Pin assignment M12 socket, 4-pos., D-coded, female side 2,8 M16x1,5 2,8 19 6,5 M12 flush-type connector 03/05/2018   Page 3 / 5 https://www.phoenixcontact.com/us/products/1411585 Bus system flat-type plug - SACC-DSI-M12FSD-4P-M16XL/0,5 - 1411585 Circuit diagram 1 YE 2 WH 3 OG 4 BU Contact assignment of the M12 socket Classifications eCl@ss eCl@ss 5.1 27143423 eCl@ss 6.0 27279220 eCl@ss 8.0 27440103 eCl@ss 9.0 27440102 ETIM ETIM 4.0 EC002061 ETIM 5.0 EC002061 ETIM 6.0 EC002061 UNSPSC UNSPSC 13.2 39121413 Approvals Approvals Approvals EAC / cULus Recognized Ex Approvals Approval details 03/05/2018   Page 4 / 5 https://www.phoenixcontact.com/us/products/1411585 Bus system flat-type plug - SACC-DSI-M12FSD-4P-M16XL/0,5 - 1411585 Approvals EAC      B.01742 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E221474-20140616     mm²/AWG/kcmil 22-20 Nominal current IN 4A Nominal voltage UN 250 V Phoenix Contact 2018 © - all rights reserved http://www.phoenixcontact.com 03/05/2018   Page 5 / 5
