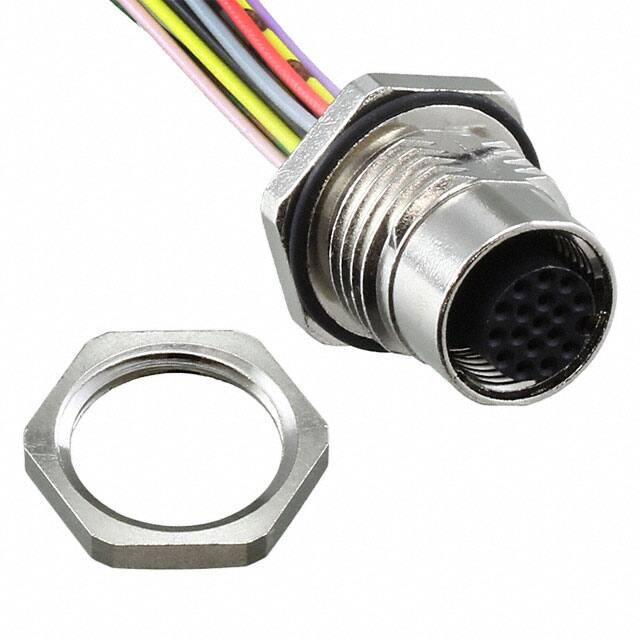

Flush-type connector - SACC-DSI-M12FS-17P-M16XL/0,5 - 1411590
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Flush-type connector, Universal, 17-position, SocketLink:M12, A-coded, Rear mounting, M16 x 1.5, Individual
wires, Cable length: 0.5 m
The figure shows the 12-pos. product
version
Why buy this product
Easy-to-install, optimized XL housing contour with wrench size 19
Tightening limitation for the O-ring gasket
Pre-assembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
For high transmission safety: shield connection to the housing with optional EMC nut
Key Commercial Data
Packing unit
1 STK
Weight per Piece (excluding packing)
40.000 g
Custom tariff number
85366990
Country of origin
Germany
Technical data
Dimensions
Length of cable
0.5 m
Ambient conditions
Ambient temperature (operation)
-25 °C ... 85 °C (Plug / socket)
Degree of protection
IP67
11/22/2016 Page 1 / 4
https://www.phoenixcontact.com/us/products/1411590
Flush-type connector - SACC-DSI-M12FS-17P-M16XL/0,5 - 1411590
Technical data
General
Note
The electrical and mechanical data specified assume that the connector
pair is correctly locked and mounted. If the connector is unlocked and if
there is a danger of contamination, the connector must be sealed using
a protective cap > IP54. Influences arising from litz wires, cables or PCB
assembly must also be taken into consideration.
Rated current at 40°C
1.5 A
Rated voltage
30 V
Rated surge voltage
0.8 kV
Number of positions
17
Insulation resistance
≥ 100 MΩ
Coding
A - standard
Standards/regulations
M12 connector IEC 61076-2-101
Signal type/category
Universal
Status display
No
Overvoltage category
II
Degree of pollution
3
Connection method
Individual wires
Insertion/withdrawal cycles
> 100
Torque
0.8 Nm ... 1.3 Nm (Installation-side)
Mounting type
Rear mounting M16 x 1.5 With flat nut
Assembly instructions
Tightening limitation
Material
Flammability rating according to UL 94
V0
Contact material
CuZn
Contact surface material
Au
Contact carrier material
PA 66
Material, knurls
Zinc die-cast, nickel-plated
Sealing material
FKM
Cable
Cable type
TPE litz wire
Conductor cross section
0.14 mm²
AWG signal line
26
Conductor structure signal line
7x 0.16 mm
Core diameter including insulation
1.1 mm ±0.05 mm
Thickness, insulation
0.21 mm (Core insulation)
Wire colors
brown, blue, white, green, pink, yellow, black, gray, red, violet, gray/pink,
red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray
Material conductor insulation
TPE
11/22/2016 Page 2 / 4
https://www.phoenixcontact.com/us/products/1411590
Flush-type connector - SACC-DSI-M12FS-17P-M16XL/0,5 - 1411590
Technical data
Cable
Conductor material
Tin-plated Cu litz wires
Standards/specifications
M12 connector IEC 61076-2-101
Insulation resistance
≥ 20 MΩ*km
Conductor resistance
≤ 57.6 mΩ/m
Nominal voltage, cable
300 V
Test voltage, cable
2000 V AC
Ambient temperature (operation)
-40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 85 °C (cable, flexible installation)
Standards and Regulations
Standard designation
M12 connector
Standards/regulations
IEC 61076-2-101
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category
“Manufacturer's declaration”
Drawings
Schematic diagram
Dimensional drawing
2
3 13
4
17
1
5
11
14
10
6
15
9
16 8 7
L
20,4
18,8
2,8
M12x1
19
Pin assignment M12, 17-pos., socket side view
2,8
M16x1,5
12
6,5
M12 flush-type socket
11/22/2016 Page 3 / 4
https://www.phoenixcontact.com/us/products/1411590
Flush-type connector - SACC-DSI-M12FS-17P-M16XL/0,5 - 1411590
Circuit diagram
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
BN
BU
WH
GN
PK
YE
BK
GY
RD
VT
GYPK
RDBU
WHGN
BNGN
WHYE
YEBN
WHGY
Contact assignment of the M12 socket
Approvals
Approvals
Approvals
EAC / cULus Recognized
Ex Approvals
Approval details
EAC B.01742
cULus Recognized http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E221474-20140616
mm²/AWG/kcmil
26
Nominal current IN
1.5 A
Nominal voltage UN
30 V
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/22/2016 Page 4 / 4
