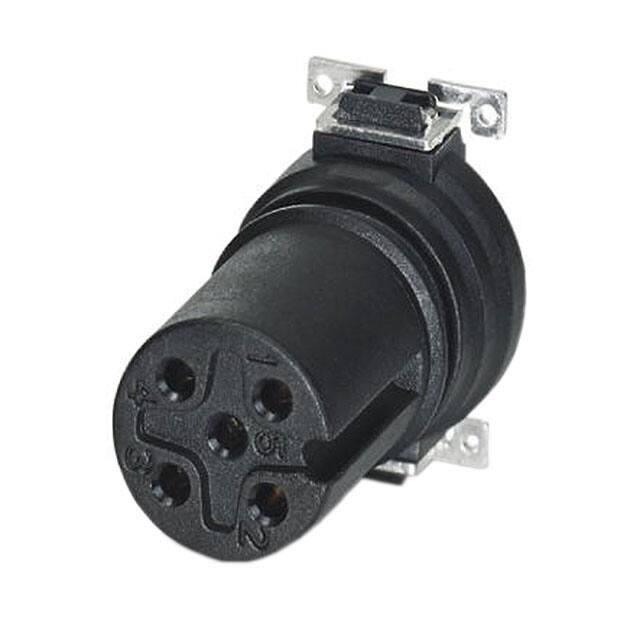

Flush-type connector - SACC-CI-M12FS-4P SMD T - 1411907
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Flush-type connector, 4-position, SocketLink:straightLink:M12, A - standard, PCB mounting, SMD
Why buy this product
Reduced mounting costs thanks to two-piece device connector
Packaging available for automated pick and place assembly
All common pin assignments and codings available
Easy device integration thanks to mechanical port screw connections with threaded attachment, press-in contour or direct integration in the front
plate
Optional shield connection and seal for the device when not plugged in
Key Commercial Data
Packing unit
60 STK
Minimum order quantity
60 STK
GTIN
GTIN
4046356989138
Weight per Piece (excluding packing)
3.220 g
Custom tariff number
85366990
Country of origin
Germany
Note
Made to Order (non-returnable)
Technical data
Ambient conditions
Ambient temperature (operation)
-55 °C ... 105 °C (Plug / socket)
-55 °C ... 105 °C (without mechanical actuation)
Degree of protection
IP67 (correctly plugged in and locked)
General
Note
The electrical and mechanical data specified assume that the connector
pair is correctly locked and mounted. If the connector is unlocked and if
12/22/2016 Page 1 / 7
https://www.phoenixcontact.com/gb/products/1411907
Flush-type connector - SACC-CI-M12FS-4P SMD T - 1411907
Technical data
General
there is a danger of contamination, the connector must be sealed using
a protective cap > IP54. Influences arising from litz wires, cables or PCB
assembly must also be taken into consideration.
Rated current at 40°C
4A
Rated voltage
250 V
Rated surge voltage
2.5 kV
Number of positions
4
Insulation resistance
≥ 100 MΩ
Coding
A - standard
Standards/regulations
M12 connector IEC 61076-2-101 In line with
Overvoltage category
II
Degree of pollution
3
Connection method
SMD
Insertion/withdrawal cycles
> 100
Mounting type
PCB mounting
Type of packaging
Tray
Material
Flammability rating according to UL 94
V0
Contact material
CuZn
Contact surface material
Au
Contact carrier material
PA
Cable
Standards/specifications
M12 connector IEC 61076-2-101 In line with
Standards and Regulations
Standard designation
M12 connector
Standards/regulations
IEC 61076-2-101
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
12/22/2016 Page 2 / 7
https://www.phoenixcontact.com/gb/products/1411907
Flush-type connector - SACC-CI-M12FS-4P SMD T - 1411907
Schematic diagram
3
Drilling diagram
4
Ø2,5
9!⁰⁰²
Pin assignment M12 socket, 4-pos., A-coded,
view female side
Ø1,5
13,6
1
2,25
2
3,54
Ø1,5⁰⁰³
Ø1,1⁰⁰³
7,85
Soldering pad geometry
Dimensional drawing
Ø10,2
12,7
18
Ø1!⁰⁰³
9!⁰⁰⁵
Ø8,2
Ø0,9⁰⁰⁵
Ø1,4!⁰⁰³
Dimensional drawing
M12 female connector contact carrier
1,35
7,25
View of solder side
Dimensional drawing
SMD tray packaging
12/22/2016 Page 3 / 7
https://www.phoenixcontact.com/gb/products/1411907
Flush-type connector - SACC-CI-M12FS-4P SMD T - 1411907
Classifications
eCl@ss
eCl@ss 5.1
27143423
eCl@ss 6.0
27143423
eCl@ss 8.0
27440103
eCl@ss 9.0
27440102
ETIM
ETIM 5.0
EC002061
ETIM 6.0
EC002061
UNSPSC
UNSPSC 13.2
39121413
Approvals
Approvals
Approvals
EAC / cULus Recognized
Ex Approvals
Approval details
EAC
cULus Recognized
B.01742
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E221474-20160506
Nominal current IN
4A
Nominal voltage UN
250 V
Accessories
Accessories
Panel mounting base
12/22/2016 Page 4 / 7
https://www.phoenixcontact.com/gb/products/1411907
Flush-type connector - SACC-CI-M12FS-4P SMD T - 1411907
Accessories
Housing screw connection - SACC-BP-F-M12/M15-6-SMD - 1414021
Housing screw connection, SocketLink:M12, Rear mounting, M15 x 1
Housing screw connection - SACC-BP-F-M12/M15-6-SMD SCO - 1414023
Housing screw connection, SocketLink:M12-SPEEDCON, Rear mounting, M15 x 1
Housing screw connection - SACC-FP-F-M12/M14 SMD - 1412079
Housing screw connection, SocketLink:M12, Front mounting, M14 x 1
Housing screw connection - SACC-FP-F-M12/PRESS SMD - 1412081
Housing screw connection, socket, for the two-part M12 SMD connector, for press-in mounting.
Housing screw connection - SACC-BP-F-M12/SMD-0,9/1,6-9TIP - 1419569
M12 threaded sleeve with tolerance-compensating function, for straight, SMD-solderable M12 socket contact inserts.
Suitable for 0.9 mm ... 1.6 mm thick front plates.
12/22/2016 Page 5 / 7
https://www.phoenixcontact.com/gb/products/1411907
Flush-type connector - SACC-CI-M12FS-4P SMD T - 1411907
Accessories
Housing screw connection - SACC-BP-F-M12/SMD-1,6/2,3-9TIP - 1419570
M12 threaded sleeve with tolerance-compensating function, for straight, SMD-solderable M12 socket contact inserts.
Suitable for 1.6 mm ... 2.3 mm thick front plates.
Housing screw connection - SACC-BP-F-M12/SMD-2,3/3,0-9TIP - 1419571
M12 threaded sleeve with tolerance-compensating function, for straight, SMD-solderable M12 socket contact inserts.
Suitable for 2.3 mm ... 3.0 mm thick front plates.
Housing screw connection - SACC-BP-F-FIX/NUT-BK-SMD - 1419568
Fixing sleeve for M12 housing screw connection with tolerance-compensating function, for SMD-solderable M12
socket contact inserts.
Housing screw connection - SACC-BP-F-FIX/NUT-CY-SMD - 1419565
Fixing sleeve for M12 housing screw connection with tolerance-compensating function, for SMD-solderable M12
socket contact inserts.
Housing screw connection - SACC-BP-F-FIX/NUT-GN-SMD - 1419566
Fixing sleeve for M12 housing screw connection with tolerance-compensating function, for SMD-solderable M12
socket contact inserts.
12/22/2016 Page 6 / 7
https://www.phoenixcontact.com/gb/products/1411907
Flush-type connector - SACC-CI-M12FS-4P SMD T - 1411907
Accessories
Housing screw connection - SACC-BP-F-FIX/NUT-VT-SMD - 1419567
Fixing sleeve for M12 housing screw connection with tolerance-compensating function, for SMD-solderable M12
socket contact inserts.
Phoenix Contact 2016 © - all rights reserved
