Flush-type connector - SACC-CIP-M8FSB-5P SMD R32 - 1412252
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

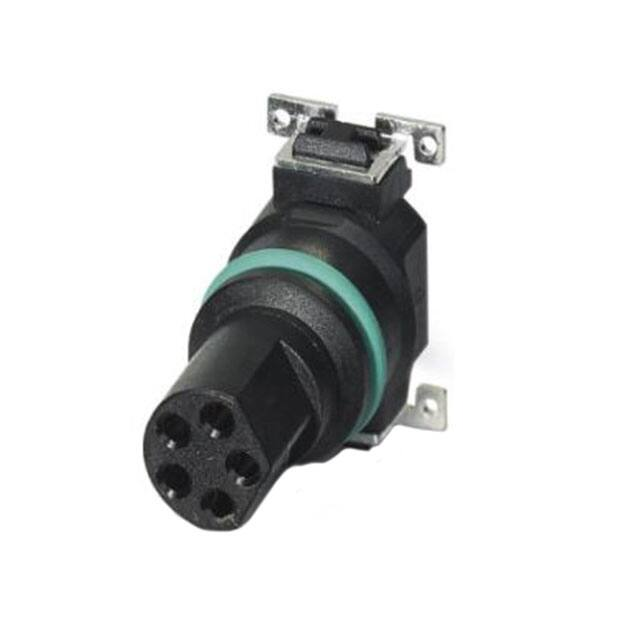

Flush-type connector, Universal, 5-position, SocketLink:straightLink:M8, B-coded, PCB mounting, SMD
Why buy this product
■
■
■
■
■
Reduced mounting costs thanks to two-piece device connector
Packaging available for automated pick and place assembly
All common pin assignments and codings available
Easy device integration thanks to mechanical port screw connections with threaded attachment, press-in contour or direct integration in the front
plate
Additional gasket for the device when not plugged in
Key Commercial Data
Packing unit
1 STK
Minimum order quantity
100 STK
Custom tariff number
85366990
Country of origin
Germany
Technical data
Ambient conditions
Ambient temperature (operation)
-25 °C ... 105 °C (Plug / socket)
-40 °C ... 105 °C (without mechanical actuation)
Degree of protection
IP67 (correctly plugged in and locked)
IP65 (not plugged in, by means of additional O-ring seal with device)
General
Note
The electrical and mechanical data specified assume that the connector
pair is correctly locked and mounted. If the connector is unlocked and if
08/08/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/1412252
Flush-type connector - SACC-CIP-M8FSB-5P SMD R32 - 1412252
Technical data
General
there is a danger of contamination, the connector must be sealed using
a protective cap > IP54. Influences arising from litz wires, cables or PCB
assembly must also be taken into consideration.
Rated current at 40°C
3A
Rated voltage
30 V
Number of positions
5
Insulation resistance
≤ 100 MΩ
Coding
B - standard
Standards/regulations
M8 connector IEC 61076-2-104
Signal type/category
Universal
Overvoltage category
II
Connection method
SMD
Mounting type
PCB mounting
Type of packaging
Belt
Material
Flammability rating according to UL 94
V0
Contact material
CuZn
Contact surface material
Au
Contact carrier material
PA
Sealing material
FKM
Cable
Standards/specifications
M8 connector IEC 61076-2-104
Standards and Regulations
Standard designation
M8 connector
Standards/regulations
IEC 61076-2-104
Flammability rating according to UL 94
V0
Drawings
08/08/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/1412252
Flush-type connector - SACC-CIP-M8FSB-5P SMD R32 - 1412252
Schematic diagram
4
Drilling diagram
7,85
2
Ø2,5
8$⁰⁰²
Ø1,5
Ø1,1⁰⁰³
12,6
Pin assignment of M8 socket, 5-pos., B-coded
1,95
2,25
5
3,4
Ø1,5⁰⁰³
1
3
1,45
0,35
1,35
Drilling diagram
Dimensional drawing
Ø8
17
Ø1!⁰⁰³
Ø8
11,9
8!⁰⁰⁵
Ø5,7
Ø0,9⁰⁰⁵
Ø1,4!⁰⁰³
Dimensional drawing
1,3
M8 panel-mount connector, socket, two parts
7,25
View of solder side
08/08/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/1412252
Flush-type connector - SACC-CIP-M8FSB-5P SMD R32 - 1412252
≤ 19,5
Dimensional drawing
32
±0,3
4
±0,1
±0,1
+0,1
Ø1,5
1,5
+0,1
24
±0,1
28,4
0,2
±0,05
SMD tape-on-reel packing
Classifications
eCl@ss
eCl@ss 5.1
27143423
eCl@ss 6.0
27279220
eCl@ss 8.0
27440103
eCl@ss 9.0
27440102
ETIM
ETIM 5.0
EC002061
Approvals
Approvals
Approvals
EAC / cULus Recognized
Ex Approvals
Approvals submitted
08/08/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/1412252
Flush-type connector - SACC-CIP-M8FSB-5P SMD R32 - 1412252
Approvals
Approval details
EAC
cULus Recognized
Nominal current IN
3A
Nominal voltage UN
30 V
Accessories
Accessories
Panel mounting base
Housing screw connection - SACC-BP-F-M8/M12 SMD - 1412506
M8 socket, rear mounting
Housing screw connection - SACC-FP-F-M8/M10 SMD - 1412504
M8 socket, front mounting
Housing screw connection - SACC-FP-F-M8/PRESS SMD - 1412501
M8 socket, press-in mounting
