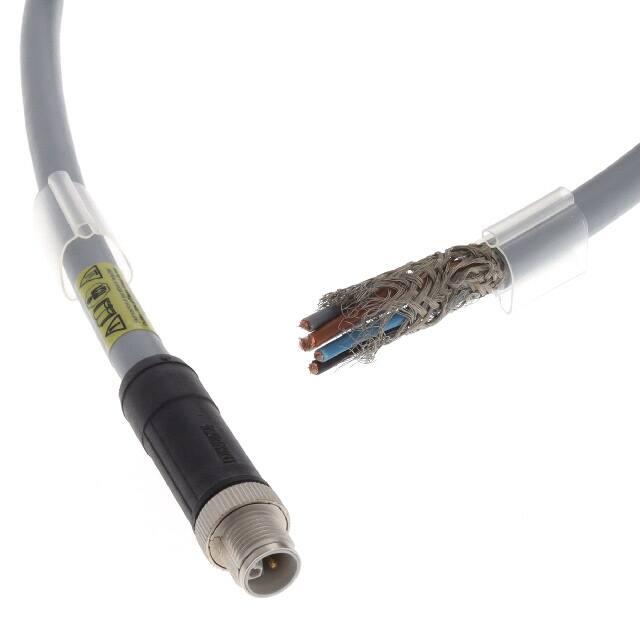

https://www.phoenixcontact.com/za/products/1414892 Power cable - SAC-5P-M12MSL/ 5,0-280 FE SH - 1414892 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Power cable, 5-position, PUR halogen-free, gray RAL 7001, shielded (Advanced Shielding Technology), Plug straight M12, coding: L, on free cable end, cable length: 5 m, for direct current up to 16 A/63 V Your advantages  Easy and safe: 100% electrically tested plug-in components  High-performance: DC connectors for up to 16 A and 63 V DC  Protection against mismatching, thanks to special L-coding  Shield power reliably – 360° shielding to reduce electromagnetic loads  Our standard: robust halogen-free PUR cable Key Commercial Data Packing unit 1 pc GTIN GTIN 4055626035222 Weight per Piece (excluding packing) 1,071.660 g Custom tariff number 85444290 Country of origin Poland Note Made to Order (non-returnable) Technical data Dimensions Length of cable 5m Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) -25 °C ... 85 °C (Plug / socket) Degree of protection IP65 IP67 12/03/2020   Page 1 / 6 https://www.phoenixcontact.com/za/products/1414892 Power cable - SAC-5P-M12MSL/ 5,0-280 FE SH - 1414892 Technical data General Rated current at 40°C 16 A Rated voltage 63 V DC Number of positions 5 Insulation resistance ≥ 100 MΩ Coding L - Power Standards/regulations M12 connector IEC 61076-2-111 Status display No Protective circuit/component unwired Overvoltage category III Degree of pollution 3 Insertion/withdrawal cycles ≥ 100 Torque 0.4 Nm (M12 connector) Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Ni/Au Contact carrier material PA Material of grip body PP Material, knurls Zinc die-cast, nickel-plated Standards and Regulations Standards/specifications M12 connector IEC 61076-2-111 Flammability rating according to UL 94 V0 Cable Cable type PUR halogen-free gray Cable type (abbreviation) 280 UL AWM style 20233 / 10493 (80°C/300 V) Conductor cross section 5x 2.5 mm² AWG power supply 14 Conductor structure, voltage supply 141x 0.15 mm Core diameter including insulation 2.85 mm ±0.1 mm Thickness, insulation ≥ 0.31 mm Wire colors Brown, white, blue, black, gray External sheath, color gray RAL 7001 Outer sheath thickness approx. 0.76 mm External cable diameter D 10.4 mm ±0.3 mm Minimum bending radius, fixed installation 5xD Minimum bending radius, flexible installation 10 x D Number of bending cycles 2000000 Minimum bending radius, drag chain applications 10 x D 12/03/2020   Page 2 / 6 https://www.phoenixcontact.com/za/products/1414892 Power cable - SAC-5P-M12MSL/ 5,0-280 FE SH - 1414892 Technical data Cable Traversing path 10 m Traversing rate 3 m/s Acceleration 10 m/s² Cable weight 202 kg/km Outer sheath, material PUR Material conductor insulation PP Conductor material Bare Cu litz wires Insulation resistance ≥ 1 GΩ*km (at 20 °C) Conductor resistance ≤ 8 Ω/km (at 20 °C) Nominal voltage, cable ≤ 300 V AC Test voltage, cable ≥ 3000 V AC (Spark test) Other resistance Hydrolysis and microbe resistant as per VDE 0282 section 10 Low adhesion abrasion-resistant Resistant to salt water Ambient temperature (operation) -50 °C ... 80 °C (cable, fixed installation) -30 °C ... 80 °C (cable, flexible installation) Environmental Product Compliance REACh SVHC Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 years For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Schematic diagram Cable cross section FE 4 1 3 2 Pin assignment of M12 connector, 5-pos., L-coded, pin side view PUR halogen-free gray [280] 12/03/2020   Page 3 / 6 https://www.phoenixcontact.com/za/products/1414892 Power cable - SAC-5P-M12MSL/ 5,0-280 FE SH - 1414892 I [A] Diagram Dimensional drawing 35 30 25 " 20 15 10 ! != "= 5 0 0 10 20 30 40 50 60 70 80 90 100 110 Plug, M12 x 1, straight, shielded # [°C] Current carrying capacity Circuit diagram 1 BN 2 WH 4 BK 3 BU FE GY Contact assignment of the M12 plug Classifications eCl@ss eCl@ss 10.0.1 27440203 eCl@ss 11.0 27440203 eCl@ss 5.1 27061801 eCl@ss 6.0 27279200 eCl@ss 7.0 27279218 eCl@ss 8.0 27440203 eCl@ss 9.0 27440203 ETIM ETIM 3.0 EC002061 ETIM 4.0 EC001855 ETIM 5.0 EC002311 ETIM 6.0 EC002311 ETIM 7.0 EC002311 Approvals Approvals 12/03/2020   Page 4 / 6 https://www.phoenixcontact.com/za/products/1414892 Power cable - SAC-5P-M12MSL/ 5,0-280 FE SH - 1414892 Approvals Approvals UL Listed / cUL Listed / EAC-RoHS / EAC / cULus Listed Ex Approvals Approval details UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 63 V Nominal current IN 16 A mm²/AWG/kcmil 14 cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 63 V Nominal current IN 16 A mm²/AWG/kcmil 14  E468743  E468743     RU DDE.HB35.B.00387 EAC      RU CDE.BL08.B.00286 cULus Listed       EAC-RoHS  Accessories Accessories Protective cap 12/03/2020   Page 5 / 6 https://www.phoenixcontact.com/za/products/1414892 Power cable - SAC-5P-M12MSL/ 5,0-280 FE SH - 1414892 Accessories Sealing cap - PROT-M12 FS - 1560251 M12 sealing cap for unoccupied M12 plugs of the sensor/actuator cable, flush-type plugs and I/O devices in the field     Screwdriver tools Tool - SAC BIT M12-D16 - 1200305 Nut for assembling sensor/actuator cables with M12 connector and M12 connectors for assembly, knurl diameter: 16 mm, for 4 mm hexagonal drive     Phoenix Contact 2020 © - all rights reserved http://www.phoenixcontact.com 12/03/2020   Page 6 / 6
