1416581

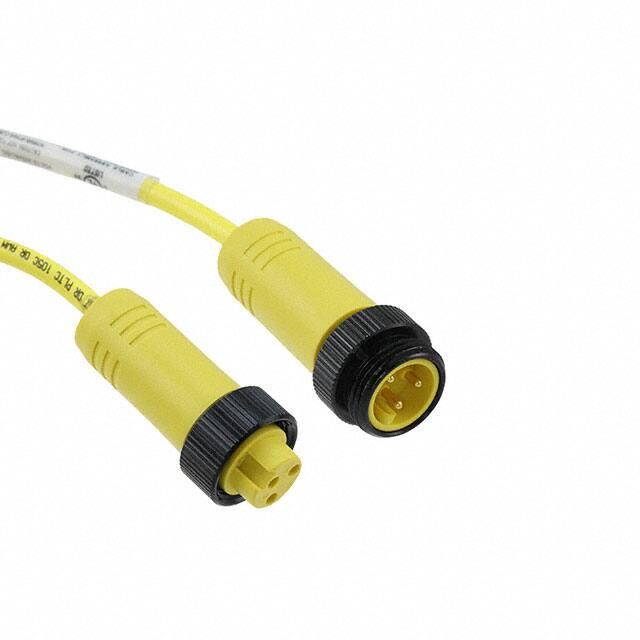

https://www.phoenixcontact.com/us/products/1416581 Power cable - SAC-3P-MINMS/ 2,0-547/MINFS - 1416581 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Power cable, 3-position, PVC, yellow, Plug straight 7/8"-16UNF, on Socket straight 7/8"-16UNF, Cable length: 2 m Why buy this product  Easy and safe: 100% electrically tested plug-in components  High-performance: connectors and cables with a large conductor cross section for power supply Key Commercial Data Packing unit 1 STK Custom tariff number 85444290 Country of origin Mexico Technical data Dimensions Length of cable 2m Ambient conditions Ambient temperature (operation) -20 °C ... 105 °C (Plug / socket) Degree of protection IP68 General Rated current at 40°C 13 A Rated voltage 300 V Number of positions 3 Insertion/withdrawal cycles 100 Torque 10 lbf-in. 1.12 Nm 04/10/2017   Page 1 / 3 https://www.phoenixcontact.com/us/products/1416581 Power cable - SAC-3P-MINMS/ 2,0-547/MINFS - 1416581 Technical data Material Contact material CuZn Contact surface material AU Contact carrier material PVC Material of grip body PVC Material, knurls Anodized aluminum Cable Cable type ITC/PLTC Cable abbreviation 547 AWG signal line 18 Conductor cross section signal conductor 3 x AWG 18 Conductor cross section voltage supply 41 x AWG 34 Wire colors Black 1, blue 2, grey 3, brown 4, white 5 External sheath, color yellow External cable diameter 5.70 mm Outer sheath, material PVC Conductor material Bare Cu litz wires Nominal voltage, cable 300 V Flame resistance UL 1581, FT4 Other resistance UV resistant (720 h) UL 2256 Standards and Regulations Flame resistance UL 1581, FT4 Other resistance UV resistant (720 h) UL 2256 Drawings L 59,4 Ø20,2 25-50 Ø20,2 Ø25,5 7/8"-16 UN 7/8"-16UNF plug, straight L 25-50 11,9 Ø25,4 58,7 8,6 Dimensional drawing 7/8"-16 UN Dimensional drawing 7/8"-16UNF socket, straight 04/10/2017   Page 2 / 3 https://www.phoenixcontact.com/us/products/1416581 Power cable - SAC-3P-MINMS/ 2,0-547/MINFS - 1416581 Circuit diagram Schematic diagram 1 1 1 BK 2 2 BN 3 3 BU 3 2 Contact assignment of 7/8" plugs/sockets Pin assignment, plug, 7/8"-16UNF, 3-pos., view of male side Schematic diagram 3 1 2 Pin assignment, socket, 7/8"-16UNF, 3-pos., view of female side Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 04/10/2017   Page 3 / 3
