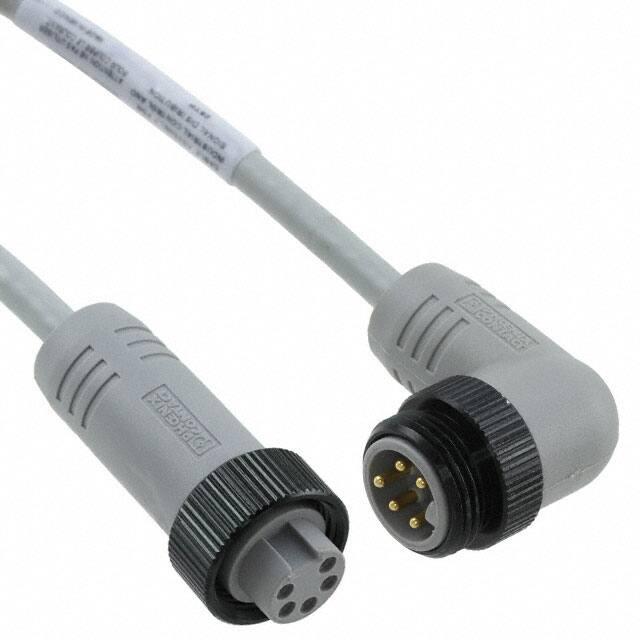

https://www.phoenixcontact.com/us/products/1416686 Bus system cable - SAC-5P-MINMR/ 2,0-U30/MINFS - 1416686 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Bus system cable, DeviceNet™, 5-position, PVC, gray, Plug angled 7/8"-16UNF, on Socket straight 7/8"-16UNF, Cable length: 2 m Key Commercial Data Packing unit 1 STK Weight per Piece (excluding packing) 200.000 g Custom tariff number 85444290 Country of origin Mexico Technical data Dimensions Length of cable 2m Ambient conditions Ambient temperature (operation) -20 °C ... 70 °C (Plug / socket) Degree of protection IP68 General Rated current at 40°C 4A Rated voltage 300 V AC/DC Number of positions 5 Signal type/category DeviceNet™ Torque 10 lbf-in. 1.12 Nm Material Contact material CuZn Contact surface material Au Contact carrier material PVC Material of grip body PVC 04/11/2017   Page 1 / 3 https://www.phoenixcontact.com/us/products/1416686 Bus system cable - SAC-5P-MINMR/ 2,0-U30/MINFS - 1416686 Technical data Material Material, knurls Anodized aluminum Cable Cable type CAN Bus/DeviceNet drop cable Cable abbreviation U30 Cable structure 2xAWG24+2xAWG22+1xAWG18 Conductor cross section 2 x AWG 24 data cable 2 x AWG 22 power supply 1 x AWG 18 drain wire AWG signal line 24 AWG power supply 22 Conductor structure signal line 19 x AWG 36 Conductor structure, voltage supply 19 x AWG 34 Wire colors Red-black, blue-white Twisted pairs 2 cores to the pair Type of pair shielding Plastic-coated aluminum foil, aluminum side outside Overall twist 2 pairs around a drain wire in the center to the core Optical shield covering 65 % External sheath, color gray External cable diameter D 6.6 mm Outer sheath, material PVC Material conductor insulation Foamed PE PVC (Power supply) Conductor material Tin-plated Cu litz wires Flame resistance UL 1581, FT4 Resistance to oil UL oil resistance Other resistance PLTC-ER sunlight resistance Standards and Regulations Resistance to oil UL oil resistance Flame resistance UL 1581, FT4 Other resistance PLTC-ER sunlight resistance Drawings 04/11/2017   Page 2 / 3 https://www.phoenixcontact.com/us/products/1416686 Bus system cable - SAC-5P-MINMR/ 2,0-U30/MINFS - 1416686 44,2 Dimensional drawing L L 59,4 25-50 7/8"-16 UN 11,9 8,6 Ø20,2 Ø20 25-50 Ø25,4 Dimensional drawing 7/8"-16UNF socket, straight 7/8"-16 UN Ø25,5 7/8"-16UNF plug, angled Circuit diagram Schematic diagram 5 1 4 1 N.C. 2 2 RD 3 3 BK 4 4 WH 5 5 BU 3 1 2 Pin assignment, plug, 7/8"-16UNF, 5-pos., view of male side Contact assignment of 7/8" plugs/sockets Schematic diagram 4 5 2 1 3 Pin assignment, socket, 7/8"-16UNF, 5-pos., view of female side Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 04/11/2017   Page 3 / 3
