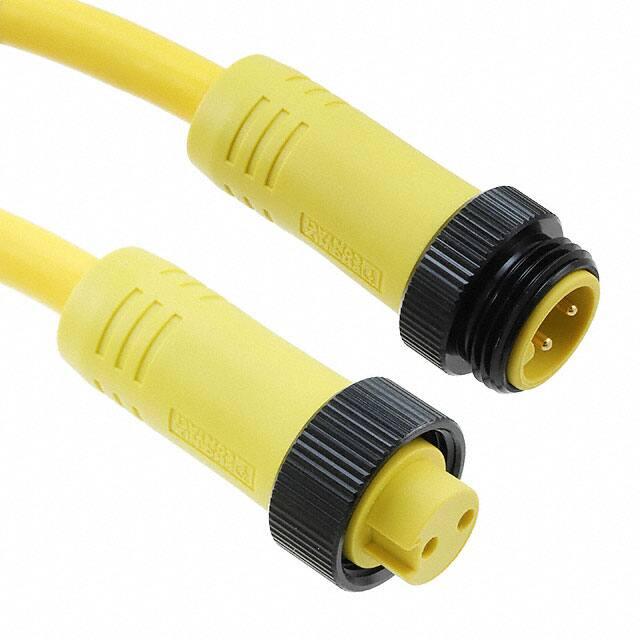

https://www.phoenixcontact.com/us/products/1416770 Power cable - SAC-2P-MINMS/ 2,0-U20/MINFS - 1416770 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Power cable, 2-position, PVC, yellow, Plug straight 7/8"-16UNF, on Socket straight 7/8"-16UNF, Cable length: 2 m Why buy this product  Easy and safe: 100% electrically tested plug-in components  High-performance: connectors and cables with a large conductor cross section for power supply Key Commercial Data Packing unit 1 STK Weight per Piece (excluding packing) 1.000 g Custom tariff number 85444290 Country of origin Mexico Technical data Dimensions Length of cable 2m Ambient conditions Ambient temperature (operation) -20 °C ... 105 °C (Plug / socket) Degree of protection IP68 General Rated current at 40°C 13 A Rated voltage 600 V Number of positions 2 Insulation resistance ≥ 100 MΩ Insertion/withdrawal cycles 100 04/10/2017   Page 1 / 3 https://www.phoenixcontact.com/us/products/1416770 Power cable - SAC-2P-MINMS/ 2,0-U20/MINFS - 1416770 Technical data General Torque 10 lbf-in. 1.12 Nm Material Contact material CuZn Contact surface material AU Contact carrier material PVC Material of grip body PVC Material, knurls Anodized aluminum Cable Cable type Yellow, STOOW Cable abbreviation U20 AWG signal line 16 Conductor cross section signal conductor 2 x AWG 16 Conductor cross section voltage supply 65 x AWG 32 Wire colors White 1, black 2 External sheath, color yellow External cable diameter 9.40 mm Minimum bending radius, fixed installation 4xD Minimum bending radius, flexible installation 12.5 x D Outer sheath, material PVC Conductor material Bare Cu litz wires Nominal voltage, cable 600 V Flame resistance UL 1581, FT2 CSA FT2 Resistance to oil Premium oil resistance (jacket and conductor) Standards and Regulations Resistance to oil Premium oil resistance (jacket and conductor) Flame resistance UL 1581, FT2 CSA FT2 Drawings 04/10/2017   Page 2 / 3 https://www.phoenixcontact.com/us/products/1416770 Power cable - SAC-2P-MINMS/ 2,0-U20/MINFS - 1416770 58,7 L 59,4 11,9 Ø20,2 7/8"-16 UN 25-50 Ø20,2 Ø25,5 L 25-50 7/8"-16 UN 8,6 Dimensional drawing 7/8"-16UNF plug, straight Ø25,4 Dimensional drawing 7/8"-16UNF socket, straight Circuit diagram Schematic diagram 1 1 1 WH 2 2 BK 2 Contact assignment of 7/8" plugs/sockets Pin assignment, plug, 7/8"-16UNF, 2-pos., view of male side Schematic diagram 2 1 Pin assignment, socket, 7/8"-16UNF, 2-pos., view of female side Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 04/10/2017   Page 3 / 3
