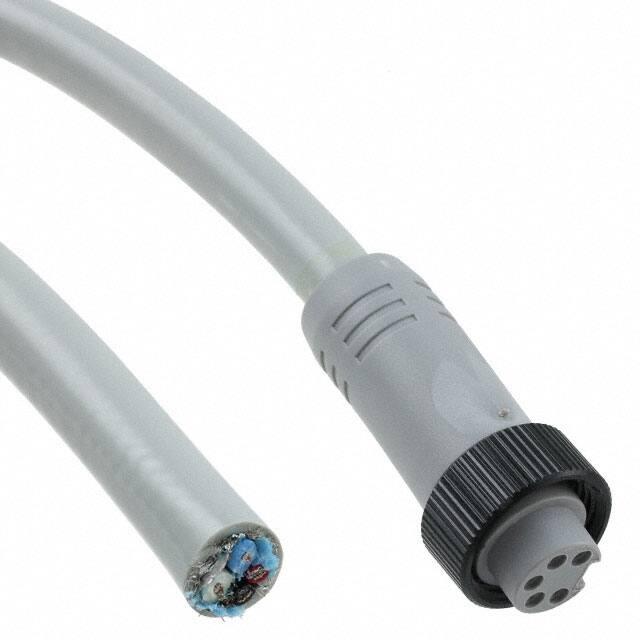

https://www.phoenixcontact.com/us/products/1416883 Bus system cable - SAC-5P- 5,0-U40/MINFS - 1416883 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Bus system cable, DeviceNet™, 5-position, PVC, gray, free cable end, A - standard, on Socket straight 7/8"-16UNF, Cable length: 5 m Key Commercial Data Packing unit 1 STK Weight per Piece (excluding packing) 1.000 g Custom tariff number 85444290 Country of origin Mexico Technical data Dimensions Length of cable 5m Ambient conditions Ambient temperature (operation) -20 °C ... 75 °C (Plug / socket) Degree of protection IP68 General Rated current at 40°C 8A Rated voltage 300 V AC/DC Number of positions 5 Signal type/category DeviceNet™ Status display No Protective circuit/component Unwired Torque 10 lbf-in. 1.12 Nm Material Contact material CuZn Contact surface material Au 04/13/2017   Page 1 / 4 https://www.phoenixcontact.com/us/products/1416883 Bus system cable - SAC-5P- 5,0-U40/MINFS - 1416883 Technical data Material Contact carrier material PVC Material of grip body PVC Material, knurls Anodized aluminum Cable Cable type CAN Bus/DeviceNet drop cable Cable abbreviation U40 Cable structure 2xAWG18+2xAWG15+1xAWG18 Conductor cross section 2 x AWG 18 data cable 2 x AWG 15 power supply 1 x AWG 18 drain wire AWG signal line 18 AWG power supply 15 Conductor structure signal line 19 x AWG 30 Conductor structure, voltage supply 19 x AWG 28 Wire colors Red-black, blue-white Twisted pairs 2 cores to the pair Type of pair shielding Plastic-coated aluminum foil, aluminum side outside Overall twist 2 pairs around a drain wire in the center to the core Optical shield covering 65 % External sheath, color gray External cable diameter D 11.43 mm Outer sheath, material PVC Material conductor insulation Foamed PE PVC (Power supply) Conductor material Tin-plated Cu litz wires Flame resistance UL 1581, FT4 Resistance to oil OIL RES I according to UL 2256 Other resistance UV resistant (720 h) Standards and Regulations Resistance to oil OIL RES I according to UL 2256 Flame resistance UL 1581, FT4 Other resistance UV resistant (720 h) Drawings 04/13/2017   Page 2 / 4 https://www.phoenixcontact.com/us/products/1416883 Bus system cable - SAC-5P- 5,0-U40/MINFS - 1416883 Dimensional drawing 59,4 11,9 Ø25,4 Ø20,2 25-50 7/8"-16 UN L Circuit diagram 1 N.C. 2 RD 3 BK 4 WH 5 BU 7/8"-16UNF socket, straight Contact assignment of 7/8" socket Schematic diagram 4 5 2 1 3 Pin assignment, socket, 7/8"-16UNF, 5-pos., view of female side Classifications eCl@ss eCl@ss 5.1 27061801 eCl@ss 6.0 27061801 eCl@ss 8.0 27279218 eCl@ss 9.0 27060311 ETIM ETIM 5.0 EC001855 UNSPSC UNSPSC 13.2 31251501 Approvals Approvals Approvals UL Listed / cUL Listed / cULus Listed Ex Approvals 04/13/2017   Page 3 / 4 https://www.phoenixcontact.com/us/products/1416883 Bus system cable - SAC-5P- 5,0-U40/MINFS - 1416883 Approvals Approval details UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 221474 cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 221474 cULus Listed       Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 04/13/2017   Page 4 / 4
