1417767

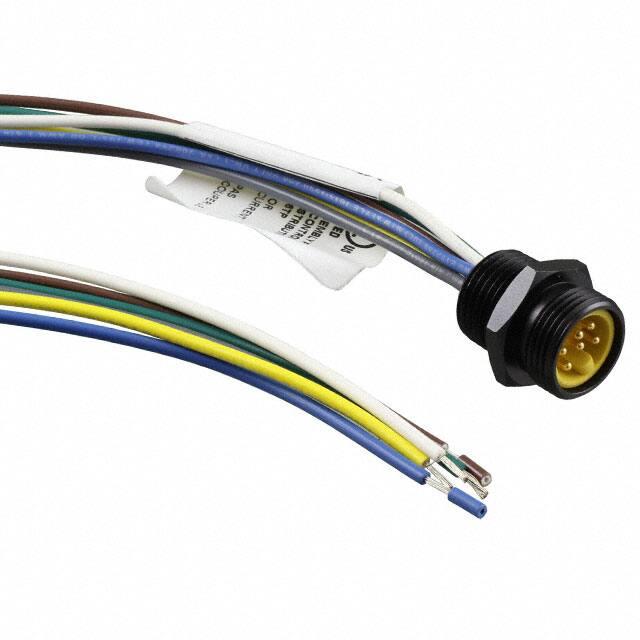

https://www.phoenixcontact.com/us/products/1417767 Flush-type connector - SACC-E-MINM-6CON-NPT12-547/1,0 - 1417767 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Flush-type connector, 6-position, Plug, straight, 7/8"-16UNF, on free cable end, Front mounting, with 1/2 inch-14 NPT mounting thread, Individual wires, cable length: 1 m Key Commercial Data Packing unit 1 pc GTIN GTIN 4055626403519 Weight per Piece (excluding packing) 120.000 g Custom tariff number 85366990 Country of origin Mexico Technical data Dimensions Length of cable 1m Ambient conditions Degree of protection IP68 General Rated current at 40°C 8A Rated voltage 300 V AC 300 V DC Number of positions 6 Insulation resistance ≥ 100 MΩ 09/09/2019   Page 1 / 7 https://www.phoenixcontact.com/us/products/1417767 Flush-type connector - SACC-E-MINM-6CON-NPT12-547/1,0 - 1417767 Technical data General Standards/regulations 7/8-inch connector UL 2238 Suitable for use in Class I, Division 2 Groups A, B, C, D hazardous locations according to ISA standard 12.12.01-2015, section 8.2 and 8.8.3 Status display No Degree of pollution 3 Connection method Individual wires Insertion/withdrawal cycles > 500 Torque 10 lbf-in. 1.12 Nm Mounting type Front mounting, with 1/2 inch-14 NPT mounting thread Material Flammability rating according to UL 94 V-0 Contact material Copper alloy Contact surface material Au Contact carrier material PVC Material, knurls Anodized aluminum Cable Cable type PVC litz wire Conductor cross section 0.75 mm² AWG signal line 18 Conductor structure signal line 16 x AWG 30 Core diameter including insulation 1.78 mm Thickness, insulation Core insulation Wire colors Green 1, white 2, blue 3, gray 4, yellow 5, brown 6 Material conductor insulation PVC Standards/specifications 7/8-inch connector UL 2238 Suitable for use in Class I, Division 2 Groups A, B, C, D hazardous locations according to ISA standard 12.12.01-2015, section 8.2 and 8.8.3 Standards and Regulations Standard designation 7/8-inch connector Standards/regulations UL 2238 Flammability rating according to UL 94 V-0 Environmental Product Compliance China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” 09/09/2019   Page 2 / 7 https://www.phoenixcontact.com/us/products/1417767 Flush-type connector - SACC-E-MINM-6CON-NPT12-547/1,0 - 1417767 Drawings Dimensional drawing Housing cutout 09/09/2019   Page 3 / 7 https://www.phoenixcontact.com/us/products/1417767 Flush-type connector - SACC-E-MINM-6CON-NPT12-547/1,0 - 1417767 Dimensional drawing 7/8" flush-type plug Circuit diagram Contact assignment of the 7/8" plug 09/09/2019   Page 4 / 7 https://www.phoenixcontact.com/us/products/1417767 Flush-type connector - SACC-E-MINM-6CON-NPT12-547/1,0 - 1417767 Schematic diagram Pin assignment, plug, 7/8"-16UNF, 6-pos., view of male side (reference image) Classifications eCl@ss eCl@ss 4.0 27140815 eCl@ss 4.1 27140815 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 7.0 27449001 eCl@ss 9.0 27440103 ETIM ETIM 3.0 EC002061 ETIM 4.0 EC002062 ETIM 5.0 EC002635 ETIM 6.0 EC002061 09/09/2019   Page 5 / 7 https://www.phoenixcontact.com/us/products/1417767 Flush-type connector - SACC-E-MINM-6CON-NPT12-547/1,0 - 1417767 Classifications UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 39121413 Approvals Approvals Approvals UL Listed / cUL Listed / cULus Listed Ex Approvals Approval details UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 221474 cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 221474 cULus Listed       Accessories Accessories 09/09/2019   Page 6 / 7 https://www.phoenixcontact.com/us/products/1417767 Flush-type connector - SACC-E-MINM-6CON-NPT12-547/1,0 - 1417767 Accessories SACC-1/2 NPT-LOCKNUT - 1020362 Locknut, 1/2 inch-14 NPT thread     Seal - SACC-MIN-SEAL - 1020363 Seal for MINI 7/8-inch panel feed through with 1/2 inch-14 NPT thread     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 09/09/2019   Page 7 / 7
