1418015

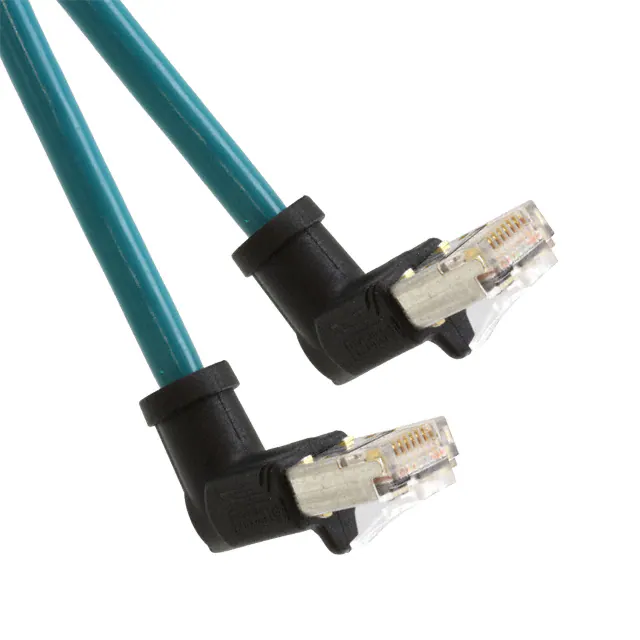

https://www.phoenixcontact.com/us/produkte/1418015 Patch cable - VS-RJ45R-RJ45R-94P-0,3 - 1418015 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Patch cable, CAT5e, 4-pair, shielded, line, assembled at both ends with angled RJ45/IP20 heads, length: 0.3 m     Key commercial data Packing unit 1 PCE Catalog page Page 318 (PC-2011) GTIN Custom tariff number 85444210 Country of origin CHINA Technical data Mechanical characteristics Number of positions 8 Type of cable Round cable Cable structure 4x2xAWG26/7; S-UTP Smallest bending radius, fixed installation 50 mm Smallest bending radius, movable installation 62 mm Length of cable 0.3 m Ambient temperature (operation) -10 °C ... 50 °C (Flexibly installed) Ambient temperature (operation) -25 °C ... 60 °C (fixed routing) Material data Outer sheath, material PUR External sheath, color water blue RAL 5021 Degree of protection IP20 11.04.2013   Page 1 / 6 https://www.phoenixcontact.com/us/produkte/1418015 Patch cable - VS-RJ45R-RJ45R-94P-0,3 - 1418015 Technical data Electrical characteristics Number of positions 8 Transmission characteristics (category) CAT5 (IEC 11801:2002), CAT5e (TIA 568B:2001) Line characteristics Cable type Ethernet, flexible, CAT5e Cable structure 4x2xAWG26/7; SF/UTP Conductor cross section 4x 2x 0.14 mm² AWG signal line 26 Conductor structure signal line 7x 0.16 mm Core diameter including insulation 0.98 mm Thickness, insulation 0.25 mm (signal line) Thickness, insulation 1 mm (Outer cable sheath) External cable diameter 6.4 mm ± 0.2 mm Wire colors white/blue-blue, white/orange-orange, white/green-green, white/brownbrown External sheath, color water blue RAL 5021 Transmission medium Copper Insulation resistance ≥ 500 MΩ*km (at 20 °C) Conductor resistance ≤ 290 Ω/km (at 20 °C) Transmission characteristics (category) CAT5 (IEC 11801:2002), CAT5e (TIA 568B:2001) Working capacitance 48 nF (At 1 kHz) Wave impedance 100 Ω ± 5 Ω (At 100 MHz) Signal runtime 5.3 ns/m Coupling resistance ≤ 100.00 mΩ/m (At 10 MHz) Nominal voltage, conductor ≤ 100 V (at 20 °C) Test voltage Core/Core 700 V (50 Hz, 1 min.) Test voltage Core/Shield 700 V (50 Hz, 1 min.) Twisted pairs 2 cores to the pair Overall twist 4 pairs Shielding Aluminum-coated foil, tinned copper braided shield Optical shield covering 70 % Outer sheath, material PUR Material conductor insulation PE Conductor material Bare Cu litz wires Cable weight 47 kg/km Smallest bending radius, fixed installation 25.6 mm Smallest bending radius, movable installation 51.2 mm Tensile strength short-term/long-term ≤ 100 N 11.04.2013   Page 2 / 6 https://www.phoenixcontact.com/us/produkte/1418015 Patch cable - VS-RJ45R-RJ45R-94P-0,3 - 1418015 Technical data Line characteristics Flame resistance IEC 60332-1-2 Halogen-free According to IEC 60754-1 Resistance to oil in accordance with DIN EN 60811-2-1 Ambient temperature (operation) -40 °C ... 80 °C (cable, fixed installation) Ambient temperature (operation) -20 °C ... 80 °C (cable, flexible installation) Classifications ETIM ETIM 2.0 EC001262 ETIM 3.0 EC001262 ETIM 4.0 EC000830 ETIM 5.0 EC000830 UNSPSC UNSPSC 11 26121609 UNSPSC 12.01 26121609 UNSPSC 13.2 26121609 UNSPSC 6.01 26121609 UNSPSC 7.0901 26121609 eCl@ss eCl@ss 4.0 27250591 eCl@ss 4.1 27240409 eCl@ss 5.0 27259207 eCl@ss 5.1 27061801 eCl@ss 6.0 19170107 eCl@ss 7.0 19170112 Drawings 11.04.2013   Page 3 / 6 https://www.phoenixcontact.com/us/produkte/1418015 Patch cable - VS-RJ45R-RJ45R-94P-0,3 - 1418015 Dimensioned drawing 13,9 34,6 42,5 11.04.2013   Page 4 / 6 RJ45 plug-in connector, IP20, angled https://www.phoenixcontact.com/us/produkte/1418015 Patch cable - VS-RJ45R-RJ45R-94P-0,3 - 1418015 Circuit diagram RJ45 RJ45 1 1 WHOG 2 2 OG 3 3 WHGN 6 6 GN 5 5 WHBU 4 4 BU 7 7 WHBN 8 8 BN 11.04.2013   Page 5 / 6 https://www.phoenixcontact.com/us/produkte/1418015 © Phoenix Contact 2013 - all rights reserved http://www.phoenixcontact.com 11.04.2013   Page 6 / 6
