1419238

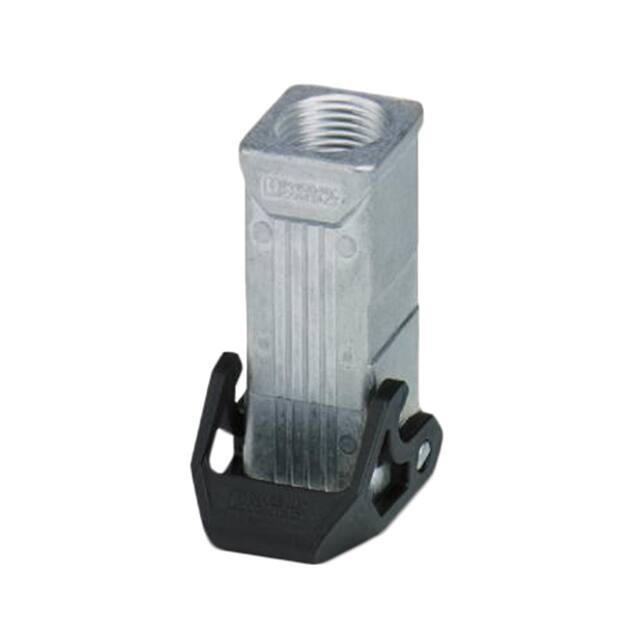

https://www.phoenixcontact.com/us/products/1419238 Housing - HC-STA-D07-CHWS-1TTM20-EL-AL - 1419238 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Coupling housings D7, With single locking latch, Material: Die-cast aluminum, salt water resistant, Cable outlets: 1, straight, Height: 60.5 mm, Cable gland: none, Gland: Yes, 1x M20, Standard Key Commercial Data Packing unit 1 STK GTIN GTIN 4055626159713 Custom tariff number 85389099 Country of origin China Technical data Dimensions Height 60.5 mm Width 26.5 mm Length 26.5 mm Ambient conditions Degree of protection of housing (IP) IP66 IP67 Degree of protection of housing (NEMA) 4 (UL 50e) 4X (UL 50e) 12 (UL 50e) Ambient temperature (operation) -40 °C ... 125 °C General 04/11/2017   Page 1 / 3 https://www.phoenixcontact.com/us/products/1419238 Housing - HC-STA-D07-CHWS-1TTM20-EL-AL - 1419238 Technical data General Note for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12 Size D7 Housing type Coupling housings Locking type With single locking latch No. of cable outlets 1 Cable exit straight Screw connection none Type of the screw connection 1x M20 Housing material Die-cast aluminum, salt water resistant Housing surface material Uncoated Drawings Dimensional drawing 60,5 39,8 34,2 24,2 Approvals Approvals Approvals EAC Ex Approvals Approval details EAC      EAC-Zulassung 04/11/2017   Page 2 / 3 https://www.phoenixcontact.com/us/products/1419238 Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 04/11/2017   Page 3 / 3
