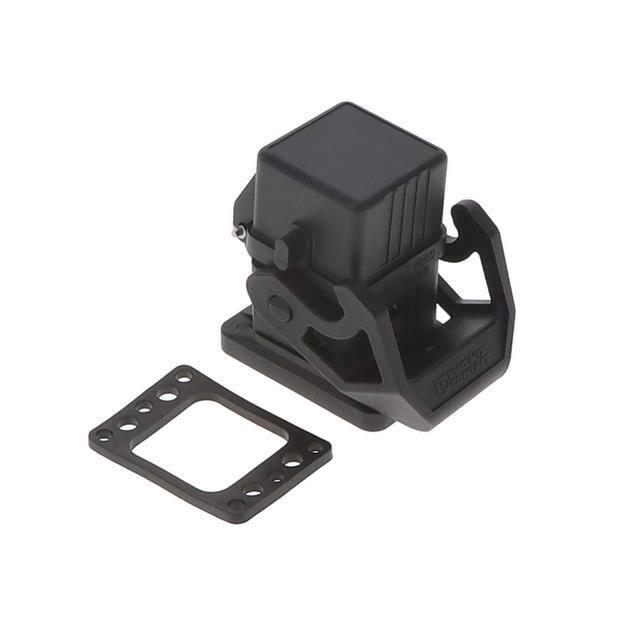

https://www.phoenixcontact.com/us/products/1419278 Housing - HC-STA-D07-BWSCM-PL-BK - 1419278 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Panel mounting base D7, With single locking latch, Material: PA, Protective cover material: PA, Height: 25.5 mm, Cable gland: none, Gland: no, Protective cover: Yes, Standard, for pin inserts Key Commercial Data Packing unit 1 STK GTIN GTIN 4055626160283 Weight per Piece (excluding packing) 20.000 g Custom tariff number 85389099 Country of origin China Technical data Dimensions Height 25.5 mm Width 34.2 mm Length 24.2 mm Ambient conditions Degree of protection of housing (IP) IP66 Degree of protection of housing (NEMA) 12 (UL 50e) Ambient temperature (operation) -20 °C ... 100 °C General Note for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12 Size D7 04/11/2017   Page 1 / 3 https://www.phoenixcontact.com/us/products/1419278 Housing - HC-STA-D07-BWSCM-PL-BK - 1419278 Technical data General Housing type Panel mounting base Color black Locking type With single locking latch Screw connection none Protective cover Yes Housing material PA Material lock PA Material, protective cover PA Drawings Dimensional drawing 4,5 2,5 2,5 10 Ø3 24,2 10 34,2 30 21 26 45,5 Dimensional drawing Panel cutout Approvals Approvals Approvals EAC Ex Approvals Approval details EAC      EAC-Zulassung 04/11/2017   Page 2 / 3 https://www.phoenixcontact.com/us/products/1419278 Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 04/11/2017   Page 3 / 3
